Запчасти Case 780 (436) - G32757 BACKHOE DIPPER CYLINDER, GLAND IS STAMPED WITH CYLINDER PN (08) - HYDRAULICS

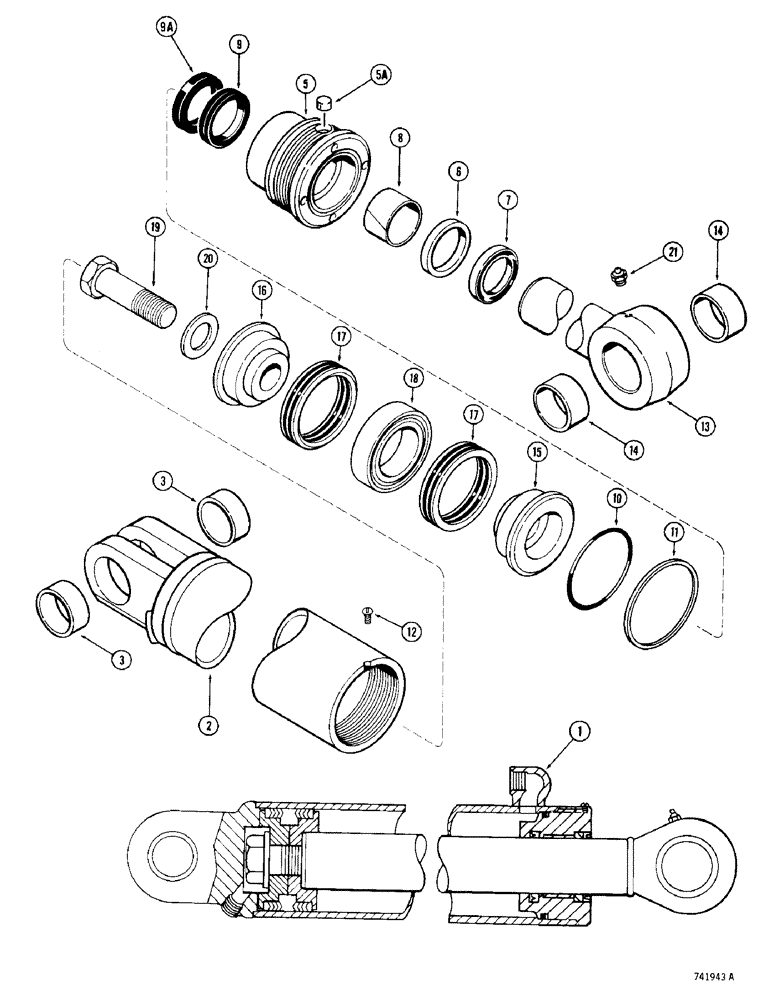

Схема запчастей Case 780 - (436) - G32757 BACKHOE DIPPER CYLINDER, GLAND IS STAMPED WITH CYLINDER PN (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G32757

CYLINDER ASSEMBLY - dipper, 6" (152 mm) I.D. x 43-5/8" (1108 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

G32758

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4 54.87" L

1шт.

3

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- tube

2шт.

4

RESERVED

1шт.

G104356

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

8

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

9

D45572

ROD

SEAL - piston rod, see G100782 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

Part of Piston Rod Seal, P/N G100782

1шт.

9a

G104884

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

10

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

11

G32649

WASHER

RING - backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4", if used

1шт.

13

G32638

ROD ASSEMBLY - piston, 3" (76 mm) dia., Includes: Ref. 14

1шт.

14

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- piston rod

2шт.

15

G32651

PISTON

- split, rod end

1шт.

16

G32652

PISTON

- split, bolt end

1шт.

17

D49321

PACKING

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105516

1шт.

18

D49320

RING

- center bearing

1шт.

19

28-3264

BOLT,Hex, 2" - 12 x 4", Gr 8

- hex, 2" - 12 NF x 4", grade 8

1шт.

20

G32653

WASHER

- piston bolt, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G105516

GASKET KIT

SEAL KIT - cylinder repair, Includes Refs. 7, 8, 9, 9A, 10, 11 and 17 same as G34569 kit plus Ref. 9A

1шт.

G100782

SEAL

- piston rod, service option - extreme heat or cold, Includes: 9

1шт.

Выбрано товаров: 34
