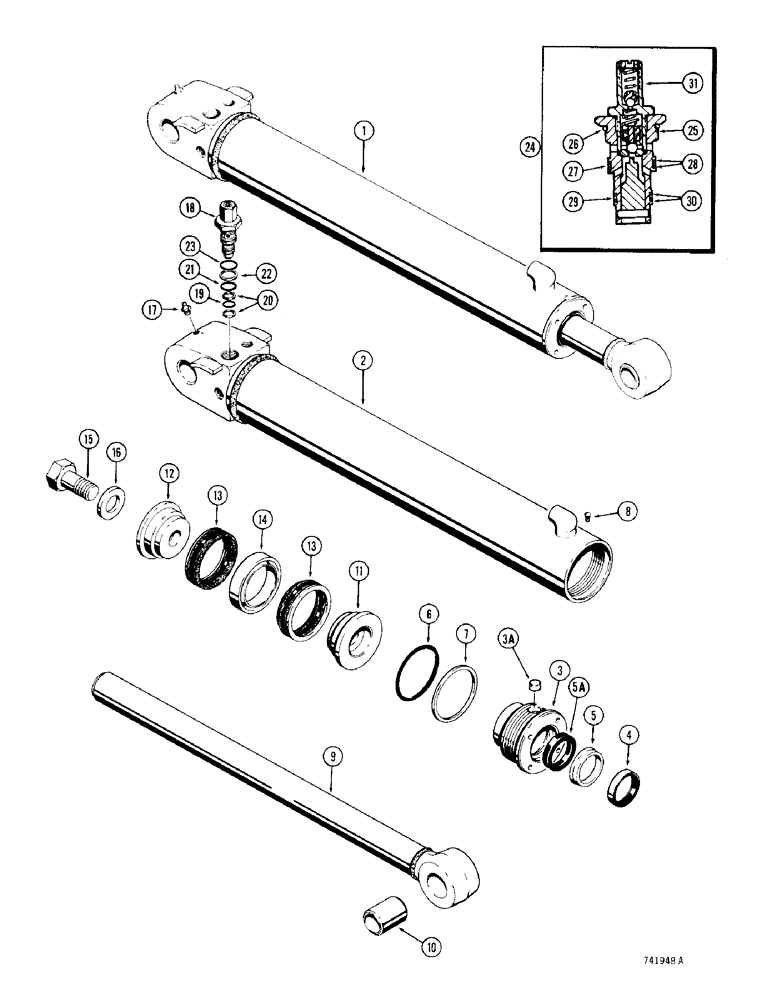

Запчасти Case 780 (418) - G32444 AND G32445 BACKHOE STABILIZER CYLINDERS, GLAND HAS NO I.D. MARKS (08) - HYDRAULICS

1

G32444

ASSEMBLY - stabilizer, left-hand, 4-1/2" (114 mm) I.D. x 28-1/8" (714 mm) stroke, Includes: Ref. 2 - 17

1шт.

1

G32445

ASSEMBLY - stabilizer, right-hand, 4-1/2" (114 mm) I.D. x 28-1/8" stroke, Includes: Ref. 2 - 17

12шт.

2

G32521

ASSEMBLY - cylinder, left-hand

1шт.

2

G32522

ASSEMBLY - cylinder, right-hand

1шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

5

D45571

ROD

SEAL - piston rod, see G100780 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

Part of Piston Rod Seal, P/N G100780

1шт.

5a

G104902

RING

SEAL - piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

6

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

7

G32284

BACK-UP RING

backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping, no. 8-32 NC x 1/4", if used

1шт.

9

G32517

ASSEMBLY - piston, 2-1/2" (64 mm) dia, Includes: Ref. 10

1шт.

10

D33094

BUSHING

piston rod

1шт.

11

G32528

SCREW,Sl Fil Hd, M4 x 8mm

PISTON - split, rod end

1шт.

12

G32527

split, bolt end

1шт.

13

D47205

PACKING

piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

14

G32530

RING

RING - center bearing

1шт.

15

D43994

SCREW,Hex, 1 1/4" - 12 x 3", Gr 8

hex, 1-1/4" - 12 NF x 3", grade 8

1шт.

16

G32351

WASHER

hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G105513

GASKET KIT

SEAL - cylinder repair, Includes Refs. 4, 5, 5A, 6, 7 and 13 same as G34333 kit plus Ref. 5A

1шт.

G100780

SEAL

piston rod, service option - extreme heat or cold, Ref. 5

1шт.

L47124

VALVE

ASSEMBLY - load , order D55729, see Ref. 24, L47124 check valve, Includes: Ref. 18 - 23

2шт.

18

NSSS

BODY ASSEMBLY - thermal L47124 check valve

1шт.

19

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

inner, L47124 check valve

1шт.

20

L33446

BACK-UP RING

L47124 check valve

2шт.

21

D26819

O-RING,1.299" ID x 1.505" OD

center, L47124 check valve

1шт.

22

L33447

BACK-UP RING

L47124 check valve

1шт.

23

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

outer, L47124 check valve

1шт.

24

D55729

CHECK VALVE

ASSEMBLY - load , service replacemenet for L47124, Includes: Ref. 25 - 31

2шт.

25

NSS

NOT SOLD SEPARAT

BODY - check valve, D55729

1шт.

26

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

body, outer, D55729 valve check

1шт.

27

D26819

O-RING,1.299" ID x 1.505" OD

body, center, D55729 valve check

1шт.

28

D56895

BACK-UP RING

body, inner, D55729 valve check

2шт.

29

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

body, inner, D55729 valve check

1шт.

30

L32991

RING

backup, D55729 valve check

2шт.

31

D55730

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

VALVE ASSEMBLY - thermal relief, D55729 valve check

1шт.
