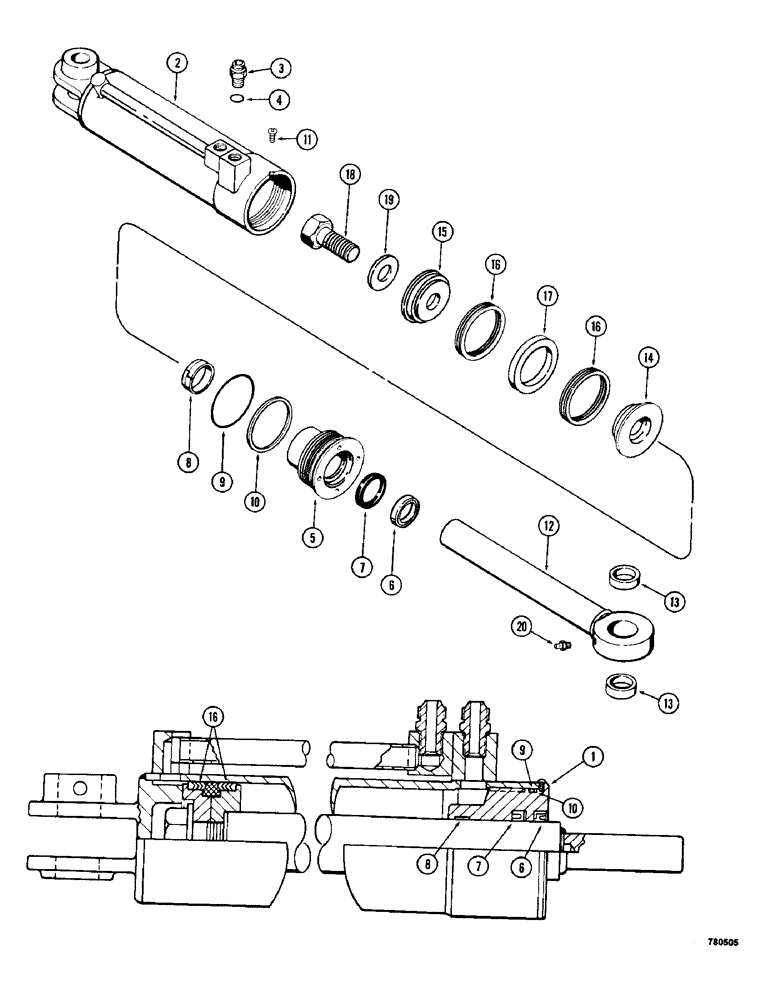

Запчасти Case 780 (412) - G32671 AND G32672 CLAM CYLINDER, GLAND HAS NO IDENTIFICATION MARKS (08) - HYDRAULICS

1

G32671

CYLINDER

ASSEMBLY - clam, left-hand, 4" (102 mm) I.D. x 10" (254 mm) stroke, order G101565, Includes: Ref. 2 - 20

1шт.

1

G32672

CYLINDER

ASSEMBLY - clam, right-hand, 4" (102 mm) I.D. x 10" (254 mm) stroke, order G101564, Includes: Ref. 2 - 20

1шт.

2

G31965

HYD TUBE

TUBE ASSEMBLY - cylinder, left-hand

1шт.

2

G31964

HYD TUBE,18.69" L

TUBE ASSEMBLY - cylinder, right-hand

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Assy - tube, Incl. Ref. 4 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

G32800

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - Piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

7

D36971

RING

SEAL - piston rod, see G100778 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

Part of Piston Rod Seal, P/N G100778

1шт.

8

D27380

SCRAPER RING

WIPER - piston rod, inner

1шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

12

G31974

ROD

ASSEMBLY - piston 2" (51 mm) dia, Includes: Ref. 13

1шт.

13

D46424

PISTON

BUSHING - piston rod

2шт.

14

D46930

PISTON

- split, rod end

1шт.

15

D46930

PISTON

- split, bolt end

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105545

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/4", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G105545

SEAL

KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10 and 16 same as G32299 kit plus 7A on Figure 414

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.
