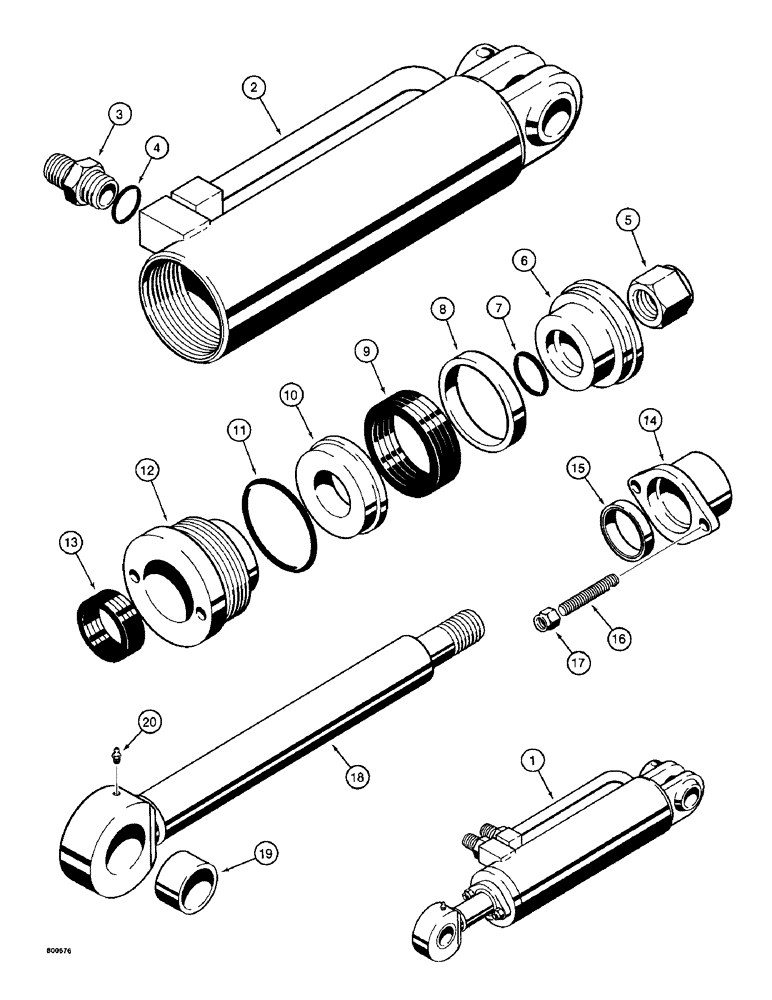

Запчасти Case 780 (410) - A17668 AND A17669 LOADER CLAM CYLINDERS, GLAND HAS BOLT ON FLANGE (08) - HYDRAULICS

1

A17668

CYLINDER

ASSEMBLY - clam, RH, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

1

A17669

CYLINDER

ASSEMBLY - clam, LH, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

A17669

CYLINDER

TUBE ASSEMBLY - RH

1шт.

2

A17683

CYLINDER

TUBE ASSEMBLY - LH

1шт.

3

A17684

ROD, CONNECTING

CONNECTOR - male, special, Includes: Ref. 4

2шт.

4

A17685

O-RING

1шт.

5

A17709

NUT

- hex, lock

1шт.

6

A17681

PISTON

- half, nut end

1шт.

7

A17680

O-RING

1шт.

8

A17686

RING

- wiper

1шт.

9

A17679

KIT

PACKING - piston

1шт.

10

A17678

PISTON

- half, eye end

1шт.

11

A17677

O-RING

1шт.

12

A17676

CYLINDER HEAD

GLAND - packing, outer

1шт.

13

A17675

PACKING

- gland

1шт.

14

A17674

GLAND

- packing, inner

1шт.

15

A17672

SEAL

SEAL - wiper

1шт.

16

A17673

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, 3/8" - 24 NF

2шт.

18

A17671

ROD

- cylinder, Includes: Ref. 19

1шт.

19

A18692

BUSHING

1шт.

20

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease straight, 1/8" NPT

1шт.
