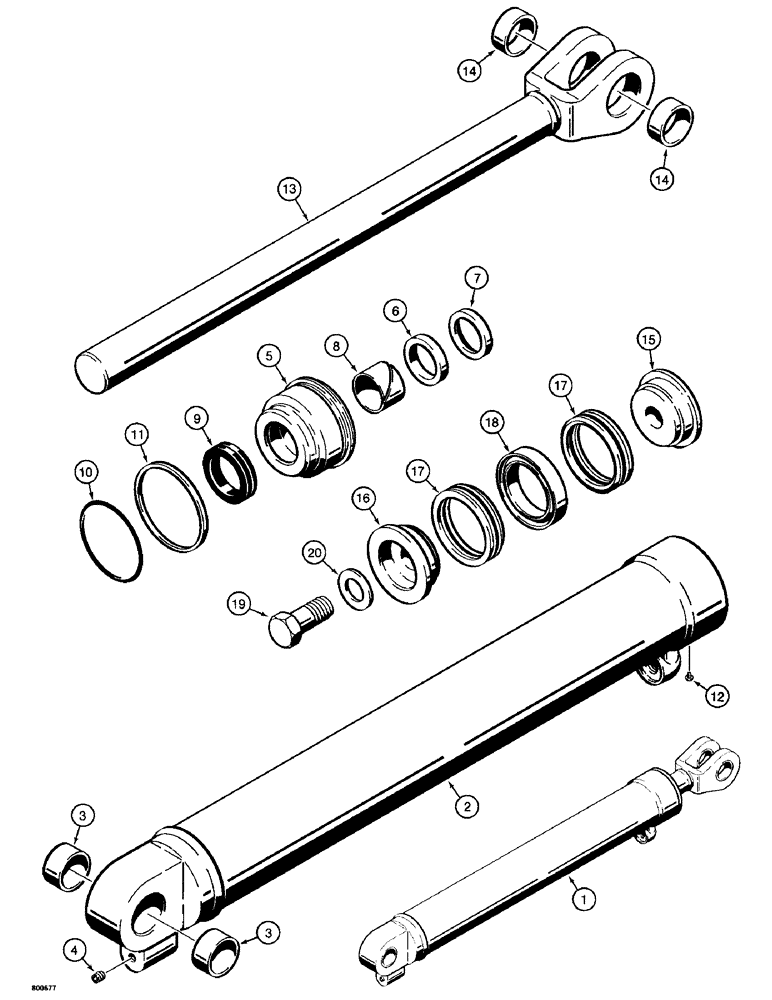

Запчасти Case 780 (406) - G103498 LOADER LIFT CYLINDER, USED ON TRACTOR SN 5502461 AND AFT (08) - HYDRAULICS

1

G103498

CYLINDER ASSEMBLY - lift, 4-1/2" (114 mm) ID x 30-1/8" (765 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G103499

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- tube

1шт.

G34627

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105520

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod, see G100779 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105520

1шт.

Part of Piston Rod Seal, P/N G100779

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105520

1шт.

11

G32284

BACK-UP RING

- back-up

1шт.

Part of Cylinder Repair Seal Kit, P/N G105520

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

13

G34123

ROD

ASSEMBLY - piston, 2-1/4" (57 mm) dia, Includes: Ref. 14

1шт.

14

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- piston rod

1шт.

15

D46425

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105520

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

G105520

GASKET KIT

SEAL KIT - cylinder repair, Includes Refs. 7, 9, 10, 11 and 17same as G34628 kit plus extra seal not required

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold, Ref. 9

1шт.
