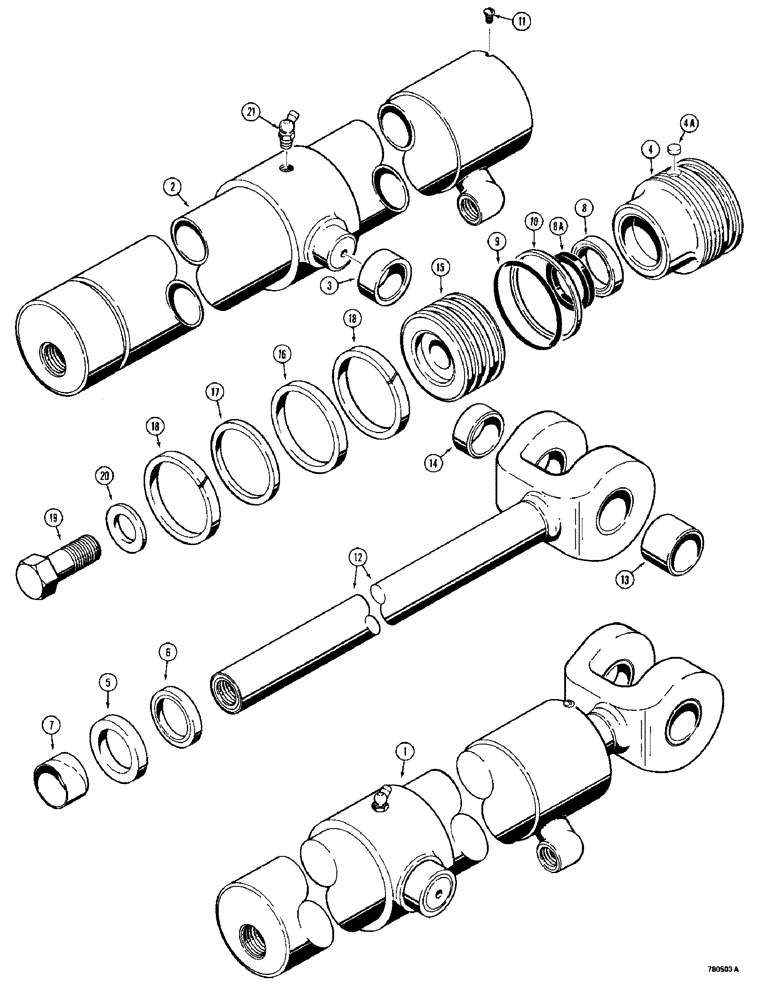

Запчасти Case 780 (400) - G101260 AND G101261 LOADER BUCKET TILT CYLINDERS, WITH ONE PIECE PISTON (08) - HYDRAULICS

1

G101260

CYLINDER ASSY.

CYLINDER - tilt, right-hand, 3-1/2" (89 mm) I.D. x 28-3/4" (730 mm) stroke, Includes: Ref. 2 - 21

1шт.

1

G101261

CYLINDER ASSY.

CYLINDER - tilt, left-hand, 3-1/2" (89 mm) I.D. x 28-3/4" (730 mm) stroke, Includes: Ref. 2 - 21

1шт.

2

D39692

TUBE

ASSEMBLY - cylinder, right-hand, Includes: Ref. 3

1шт.

2

D39693

TUBE

ASSEMBLY - cylinder, right-hand, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube

2шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

D104273

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

D102569

KIT

PLUG - nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

8

D36970

CUP

SEAL - piston rod, see G100777 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

Part of Piston Rod Seal, P/N G100777

1шт.

8a

G103705

SEAL

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

12

G33787

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) dia., Includes: Ref. 13 and 14

1шт.

13

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod, 1-1/4" (32 mm) long

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod, 3/4" (19 mm) long

1шт.

15

G100698

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Cylinder Repair Seal Kit, P/N G105554

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

D39693 tube assy - This is LH tube assy.

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8" NPT

1шт.

G105554

SEAL

KIT - seal, Includes Refs. 3, 6, 7, 8, 8A, 9, 10, 16, 17 and 18 same as G102410 kit plus Ref. 8A

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - extreme heat or cold, Includes: Ref. 8

1шт.
