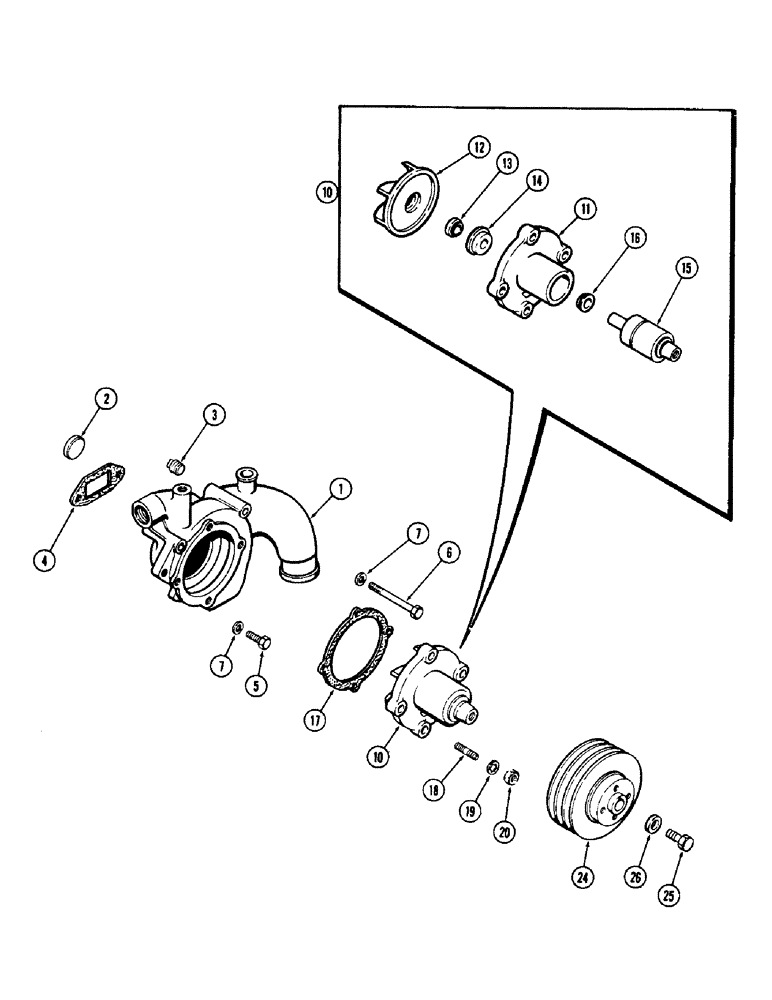

Запчасти Case 780 (024) - WATER PUMP, WITH TAPPED SHAFT, (336BD) AND (336BDT) DIESEL ENG (02) - ENGINE

1

A60630

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- cup type, 1-3/8" (34.92 mm) diameter

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" PT square head

1шт.

4

A58649

GASKET

-, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

10

A155180

PUMP

ASSEMBLY - water, Includes: Ref. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

A152126

IMPELLER

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

- pump shaft

1шт.

15

A155177

SHAFT

ASSEMBLY, Includes: Ref. 16

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

-, Serial Range: pump-body

1шт.

18

A62234

STUD

- pump mounting (3/8" NC x 1-5/16")

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25146

NUT - jam, 3/8" NC hex

4шт.

24

A153464

PULLEY

- belt

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" NF hex

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - 33/64" x 1 x 11/32" (13.09 x 25.4 x 8.73. mm)

1шт.
