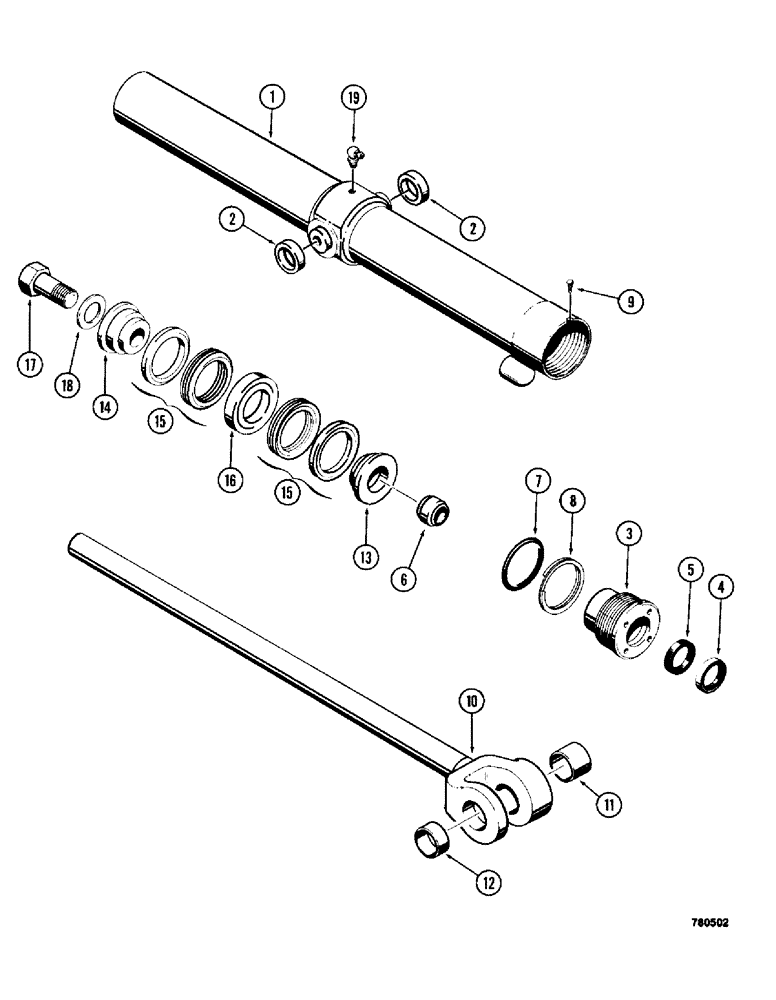

Запчасти Case 780 (398) - G32577 AND G32578 LOADER BUCKET TILT CYLINDERS, GLAND HAS NO I.D. MARKS (08) - HYDRAULICS

G32577

CYLINDER

ASSEMBLY - tilt, right hand, 3-1/2" (89 mm) I.D. x 28-3/4" (730 mm) stroke, order G101260, Includes: Ref. 1 - 19

1шт.

G32578

CYLINDER

ASSEMBLY - tilt, left hand, 3-1/2" (89 mm) I.D. x 28-3/4" (730 mm) stroke, order G101261, Includes: Ref. 1 - 19

1шт.

1

D39692

TUBE

ASSEMBLY - right hand cylinder, Includes: Ref. 1 - 19

1шт.

1

D39693

TUBE

ASSEMBLY - left hand cylinder, Includes: Ref. 2

1шт.

2

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube

2шт.

G32743

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

5

D36970

CUP

SEAL - piston rod, see G100778 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

Part of Piston Rod Seal Kit, P/N G100778

1шт.

6

D27432

SHIM

- piston rod, inner

1шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

8

D32126

FILTER

RING - backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1"

1шт.

10

D43387

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) dia., Includes: Ref. 11 and 12

1шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- piston rod, 1-1/4" (32 mm) long

1шт.

12

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod, 3/4" (19 mm) long

1шт.

13

D28369

PISTON

- split, rod end

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105508

1шт.

16

D47208

RING

- center bearing

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/2" NPT

1шт.

G105508

SEAL

KIT - cylinder repair, Includes Refs. 7, 8, 9, 10 and 17, same as G24624 kit plus Ref. 8A on Figure 400

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 5

1шт.
