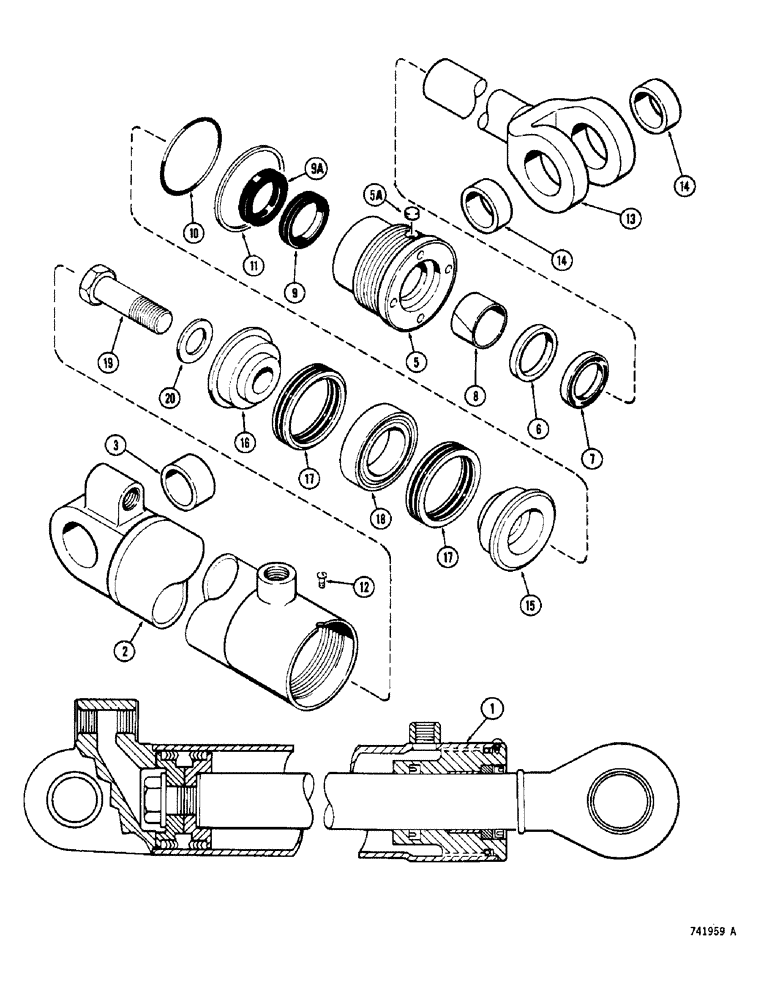

Запчасти Case 780 (388) - G33635 LOADER HYDRA-LEVELING CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

1

G33635

CYLINDER

ASSEMBLY - hydra-leveling, 4" (102 mm) I.D. x 7-1/2" (191 mm) stroke, Includes: Ref. 2 - 20

2шт.

2

G32629

TUBE

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

1шт.

4

RESERVED

1шт.

G104407

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - Piston rod, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

9

D36971

RING

SEAL piston rod, see G100778 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

Part of Piston Rod Seal Kit, P/N G100778

1шт.

9a

G102647

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping no. 8-32 NC x 1/4", if used

1шт.

13

G33636

ROD

ASSEMBLY - piston, 2" (51 mm) dia., Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G33159

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105517

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

G105517

GASKET KIT

SEAL KIT - cylinder repair, Includes Refs. 7, 8, 9, 9A, 10, 11 and 17 same as G34594 kit plus Ref. 9A above

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 9

1шт.
