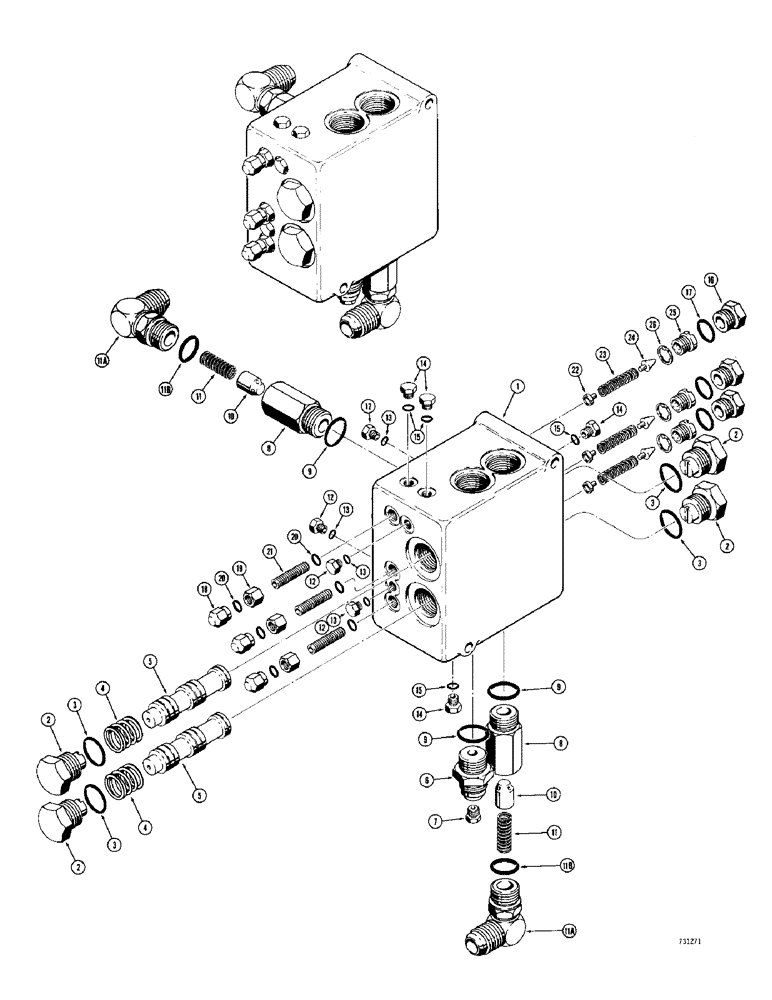

Запчасти Case 780 (386) - D55795 HYDRA-GUIDE VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
D55795
VALVE - Hydra-Guide, Includes: Ref. 1 - 26
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - control valve
1шт.
2
D53336
PLUG - spool
4шт.
3
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- spool plug
4шт.
4
D53341
VALVE SPRING
SPRING - spool centering
2шт.
5
D53329
SPOOL - control valve
2шт.
6
D53335
COUPLING
FITTING - straight, male, restrictor type
1шт.
7
D59683
RESTRICTOR - connector
1шт.
8
D59682
HOUSING - piston
2шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Housing and straight connector
3шт.
10
D59681
PISTON - check valve
2шт.
11
D59684
SPRING
- check valve
2шт.
11a
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
adjustable, Incl. Ref. 11B 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring
2шт.
11b
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Fitting
1шт.
12
218-5151
PLUG,Hex Hd, 5/16"-24 ORB
- valve body, Includes: Ref. 13
4шт.
13
218-5001
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
2-1, .239" ID x .064" Thk, plug
1шт.
14
9672438
PLUG,7/16" - 20 ORB
Valve body, Incl. Ref. 15 Hex Hd, 7/16"-20 ORB
4шт.
15
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, Plug
1шт.
16
86512512
PLUG,7/8" - 14 ORB
Body, Relief valve, Incl. Ref. 17 Hex Hd, 7/8"-14 ORB
3шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- plug
1шт.
18
D53338
NUT
- acorn, relief valve
3шт.
19
D53342
LOCK NUT
NUT - lock, special
3шт.
20
A8613
O-RING,0.426" ID x 0.566" OD
- adjustment screw
6шт.
21
83-624
SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"
SCREW - adjustment, 3/8" - 16 NC x 1-1/2"
3шт.
22
D53334
GUIDE
- adjustment spring
3шт.
23
D53333
VALVE SPRING
SPRING - adjustment
3шт.
24
D53332
CONE
POPPET - relief valve
3шт.
25
D53339
PLUG
SEAT - valve poppet
3шт.
26
D53340
GASKET
- poppet seat
3шт.
Выбрано товаров: 29
