Запчасти Case 780 (380) - BACKHOE CONTROL VALVE, D55249 BOOM SECTION (08) - HYDRAULICS

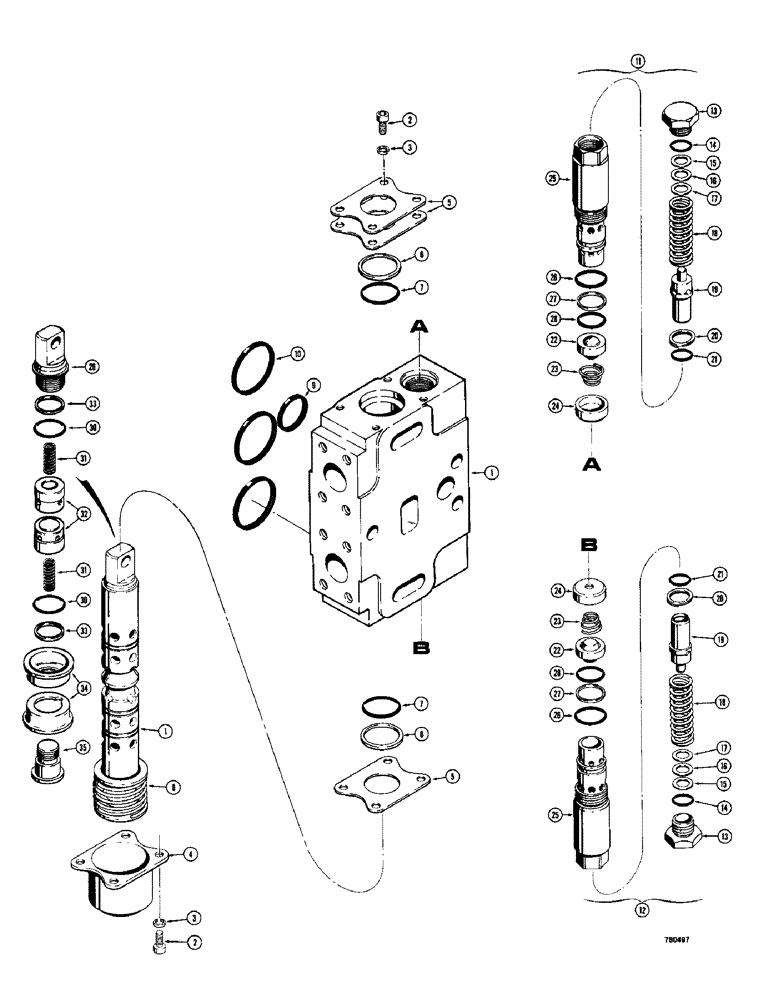

Схема запчастей Case 780 - (380) - BACKHOE CONTROL VALVE, D55249 BOOM SECTION (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D55249

BRACKET

BOOM SECTION - bakchoe control valve, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - boom section

1шт.

2

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

CAPSCREW - hex socket head, 1/4" - 20 NC x 5/8"

8шт.

3

192-402

LOCK WASHER

WASHER - lock, hi-collar, 1/4"

8шт.

4

L33229

CAP - spool end

1шт.

5

L33241

PLATE - retainer, spool seal

3шт.

6

L33217

RING

- backup, seal

2шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- spool

2шт.

8

L33230

SPRING

- centering, spool

1шт.

9

L32984

WIPER SEAL

- square section, small

1шт.

10

L32985

GASKET

- square section, large

3шт.

11

D59129

VALVE

ASSEMBLY - relief, Includes: Ref. 13 - 28

1шт.

12

L32983

VALVE

ASSEMBLY - relief, Includes: Ref. 13 - 28

1шт.

13

L32988

CAP

- relief valve

1шт.

14

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap

1шт.

15

L48109

SHIM

- adjustment, .0149" (0.378 mm)

1шт.

16

L48112

SHIM

- adjustment, .0156" (0.396 mm)

1шт.

17

L48111

SHIM

- adjustment, .093" (2.36 mm)

1шт.

18

L33239

SPRING

- relief valve, used with L32982 relief valve only

1шт.

18

L33240

SPRING - relief valve, used with L32983 relief valve only

1шт.

19

L32987

SEAT

- spring

1шт.

20

L33237

RING

- backup, seat

1шт.

21

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

22

NSS

NOT SOLD SEPARAT

BALL AND RETAINER - spring seat

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - conical

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- body, large

1шт.

27

L32619

RING

- backup, seal

1шт.

28

L32993

O-RING,40756" ID x 40756" OD x 1"

- body, small

1шт.

29

L33225

EYE - spool

1шт.

30

L32993

O-RING,40756" ID x 40756" OD x 1"

- spool ends

2шт.

31

L33221

SPRING

- internal

2шт.

32

L33226

POPPET - check

2шт.

33

L32619

RING

- backup, if used

2шт.

34

L33227

GUIDE - spring

2шт.

35

L33228

BOLT - spool end

1шт.

Выбрано товаров: 37
