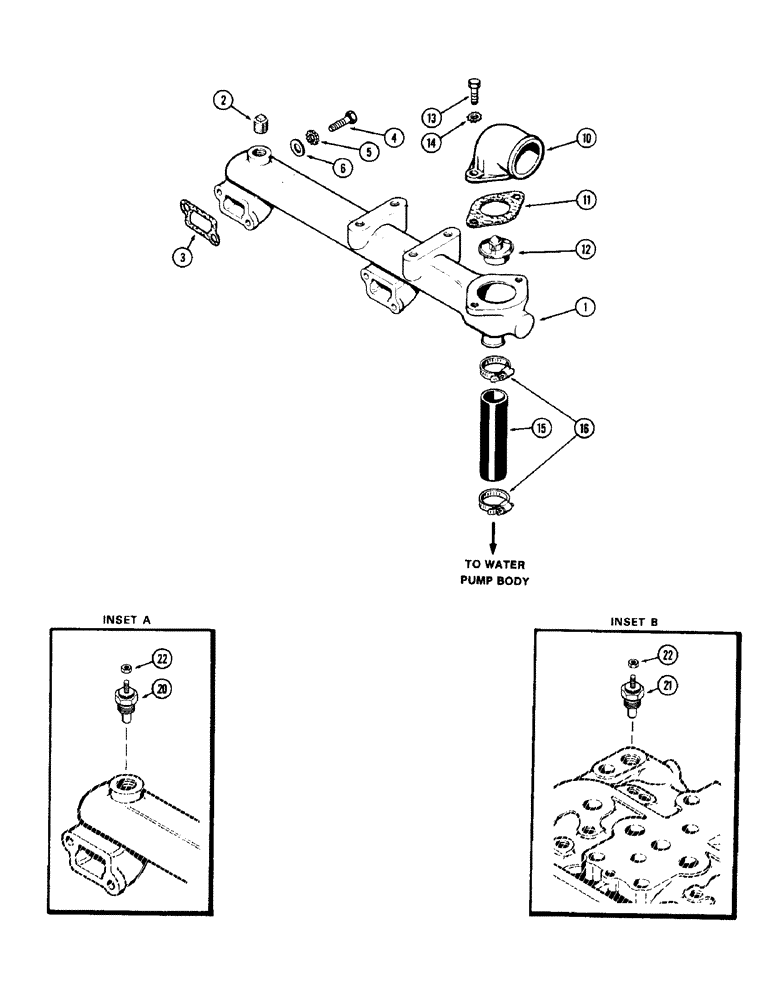

Запчасти Case 780 (022) - WATER MANIFOLD AND THERMOSTAT, (336BD) AND (336BDT) DIESEL ENG (02) - ENGINE

1

A59211

MANIFOLD

water

1шт.

2

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1/2" PT, square head

1шт.

3

A58637

MANIFOLD GASKET

water manifold

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

2шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5)

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

3/8" internal Shakeproof

4шт.

6

195-25

WASHER,3/8"

3/8 x 13/16 x 1/16"

4шт.

10

A60636

HOUSING

thermostat

1шт.

11

G46907

GASKET

thermostat housing

1шт.

12

A57641

THERMOSTAT

180 degrees F (82 degrees C)

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

15

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

1-1/4" ID x 5-5/16" (Replaces A60449)

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" x 1-3/4"

2шт.

20

A21462

SENDER UNIT

2" PT (In water manifold) (Engine serial no. 2320751 and after) (See inset A), temp

1шт.

21

A61787

TRANSMITTER

UNIT - sending, 3/8" PT (In cylinder head) (Prior to engine serial no. 2320751) (See inset B), temp

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

10 NF hex brass, eng temp sending unit

1шт.
