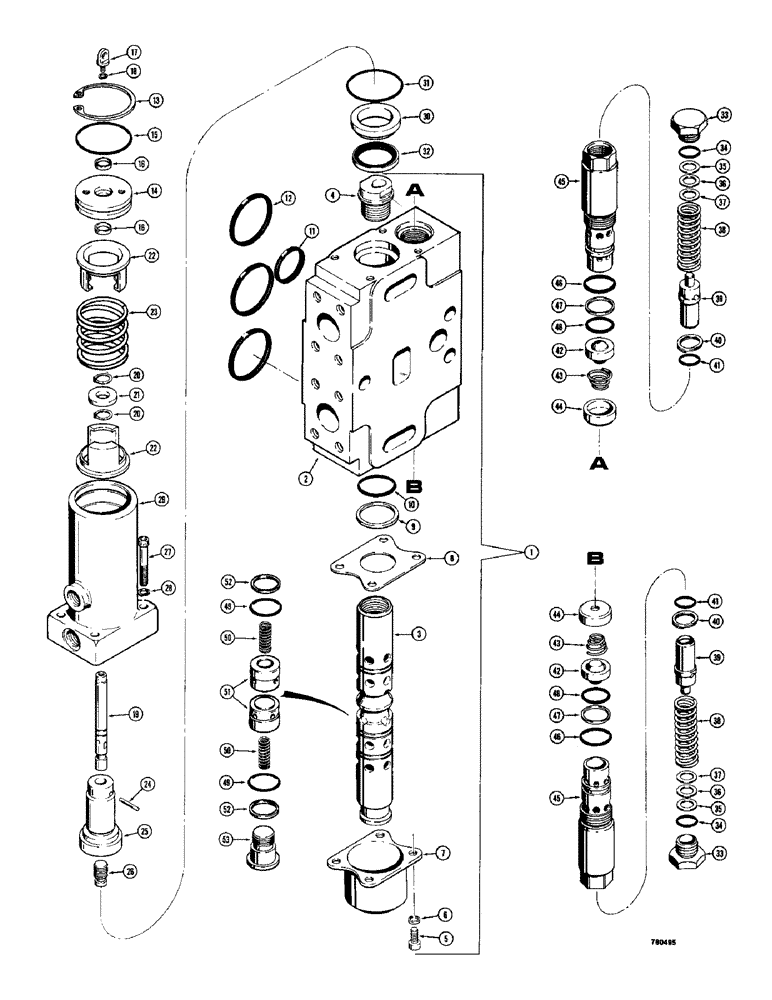

Запчасти Case 780 (374) - BACKHOE CONTROL VALVE, D53289 AND D55250 BUCKET AND DIPPER SECTIONS (08) - HYDRAULICS

D53289

KNIFE SECTION

BUCKET AND DIPPER SECTION - backhoe control valve, Includes: Ref. 1 - 53

2шт.

D55250

BUCKET AND DIPPER SECTION - backhoe control valve, service replacement for D53289 section, Includes: Ref. 1 - 32

2шт.

1

D55953

KIT - service, spool and housing, also includes Refs. 49 and 52, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - bucket and dipper section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - bucket and dipper section

1шт.

4

NSS

NOT SOLD SEPARAT

LUG - spool

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

5

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

CAPSCREW - hex socket head, 1/4" - 20 NC x 5/8"

4шт.

6

192-402

LOCK WASHER

WASHER - lock, hi-collar, 1/4"

4шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

7

L33229

CAP - spool end

1шт.

8

L33241

PLATE - retainer, spool seal

1шт.

9

L33217

RING

- backup, seal

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- spool

1шт.

11

L32984

WIPER SEAL

- square section, small

1шт.

12

L32985

GASKET

- square section, large

3шт.

13

D53303

RING

- retaining, cylinder cap

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

14

D53304

CAP

- cylinder end

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

15

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - end cap to cylinder body

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

16

D53307

WIPER

- piston rod

2шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

17

D53306

EYE - piston rod

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

18

192-403

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

19

D53298

PISTON ROD

ROD - piston, hydraulic assist

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

20

D53305

SNAP RING,#39, Ext

Ring, Snap, , washer #39, Ext

2шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

21

D53299

WASHER - retainer

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

22

D53302

RETAINER

- centering spring

2шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

23

D53300

SPRING

- piston centering

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

24

D53297

PIN

-, Serial Range: rod-piston

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - hydraulic assist

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

26

D53295

LUG -, Serial Range: piston-spool

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

27

D53295

CAPSCREW - hex socket head, 1/4" - 20 NC x 1-3/4"

4шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

28

192-402

LOCK WASHER

WASHER - lock hi-collar, 1/4"

4шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic assist

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

30

D53294

SLEEVE

- spool

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

31

D53293

O-RING

- cylinder to valve housing

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

32

D53308

SEALING RING

- "T"-ring, spool, includes 2 back up rings

1шт.

Part of Hydraulic Assist Repair Kit, P/N D53035

1шт.

D53035

KIT

- hydraulic assist repair, Includes: Ref. 4, 6, 13 - 32

1шт.

D59129

VALVE

ASSEMBLY - relief, Includes: Ref. 33 - 48

2шт.

33

L32988

CAP

- relief valve

1шт.

34

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap

1шт.

35

L38109

SHIM - adjustment, .0149" (.378 mm)

1шт.

36

L48112

SHIM

- adjustment, .0156" (.396 mm)

1шт.

37

L48111

SHIM

- adjustment, .093" (2.36 mm)

1шт.

38

L33239

SPRING

- relief valve

1шт.

39

L32987

SEAT

- spring

1шт.

40

L33237

RING

- backup, seat

1шт.

41

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

42

NSS

NOT SOLD SEPARAT

BALL AND RETAINER - spring seat

1шт.

43

NSS

NOT SOLD SEPARAT

SPRING - conical

1шт.

44

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

46

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- body, large

1шт.

47

L32619

RING

- backup, seal

1шт.

48

L32993

O-RING,40756" ID x 40756" OD x 1"

- body, small

1шт.

49

L32993

O-RING,40756" ID x 40756" OD x 1"

- spool ends

2шт.

50

L33221

SPRING

- internal

2шт.

51

L33226

POPPET - check

2шт.

52

L32619

RING

- backup, if used

2шт.

53

D82782

BOLT

- spool end

1шт.
