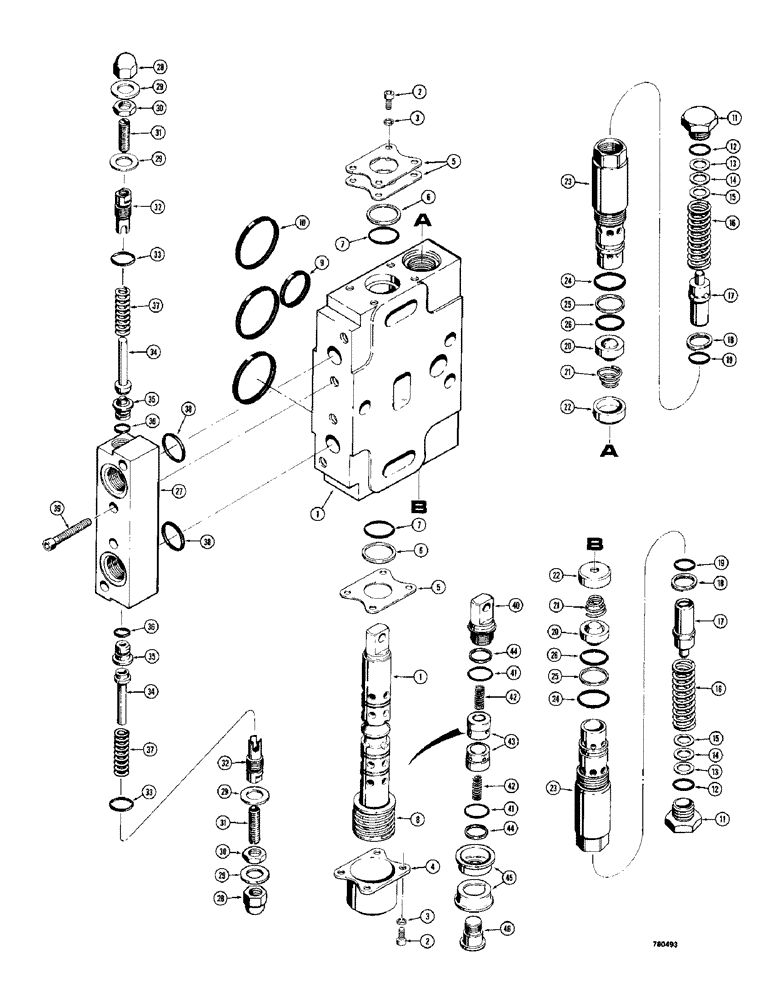

Запчасти Case 780 (368) - BACKHOE CONTROL VALVE, L32975 SWING SECTION (08) - HYDRAULICS

L32975

SWING SECTION - backhoe control valve, Includes: Ref. 1 - 46

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - swing section

1шт.

2

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

CAPSCREW - hex socket head, 1/4" - 20 NC x 5/8"

8шт.

3

192-402

LOCK WASHER

WASHER - lock, hi-collar, 1/4"

8шт.

4

L33223

CAP - spool end

1шт.

5

L32999

PLATE - retainer, spool seal

3шт.

6

L33216

RING

- backup, seal

2шт.

7

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - spool

2шт.

8

L33222

SPRING - centering, spool

1шт.

9

L32984

WIPER SEAL

- square section, small

1шт.

10

L32985

GASKET

- square section, large

3шт.

D59129

VALVE

ASSEMBLY - relief, Includes: Ref. 11 - 26

2шт.

11

L32988

CAP

- relief valve

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap

1шт.

13

L48109

SHIM

- adjustment, .0149" (0.378 mm)

1шт.

14

L48112

SHIM

- adjustment, .0156" (0.396 mm)

1шт.

15

L48111

SHIM

- adjustment, .093" (2.36 mm)

1шт.

16

L33239

SPRING

- relief valve

1шт.

17

L32987

SEAT

- spring

1шт.

18

L33237

RING

- backup, seat

1шт.

19

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

20

NSS

NOT SOLD SEPARAT

BALL AND RETAINER - spring seat

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - conical

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- body, large

1шт.

25

L32619

RING

- backup, seal

1шт.

26

L32993

O-RING,40756" ID x 40756" OD x 1"

- body small

1шт.

L33312

BLOCK ASSEMBLY - crossover, Includes: Ref. 27 - 38

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - crossover

1шт.

28

129-526

CROWN NUT,Low, 3/8" - 24

CAP - relief valve

2шт.

29

23150

WASHER

GASKET - relief valve

4шт.

30

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

31

D40776

SCREW

- adjustment

2шт.

32

L33315

BODY

- relief valve

2шт.

33

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- body

2шт.

L33313

KIT

- poppet and seat, Includes: Ref. 34 - 37

2шт.

34

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

37

L33314

SPRING - relief valve

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- block to valve body

2шт.

L32975

SWING SECTION - backhoe control valve

1шт.

39

61-532

HEX SOC SCREW,5/16"-18 x 2"

CAPSCREW - hex socket head, 5/16" - 18 NC x 2"

4шт.

40

L32996

EYE - spool

1шт.

41

L32994

O-RING,9" ID x 3" OD x 3"

- spool ends

2шт.

42

L33221

SPRING

- internal

2шт.

43

L32998

POPPET - check

2шт.

44

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, if used

2шт.

45

L33218

GUIDE - spring

2шт.

46

L32997

BOLT - spool end

1шт.
