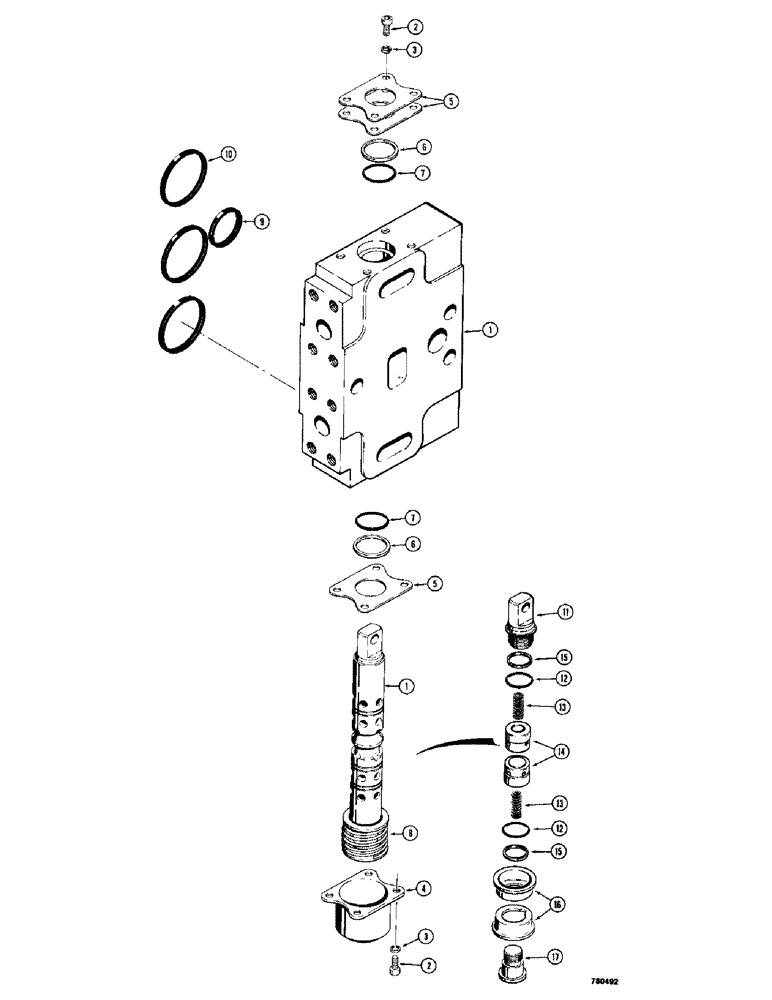

Запчасти Case 780 (366) - BACKHOE CONTROL VALVE, L32974 STABILIZER SECTION (08) - HYDRAULICS

L32974

VALVE BLOCK

STABILIZER SECTION - backhoe control valve, Includes: Ref. 1 - 17

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - stabilizer section

1шт.

2

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

CAPSCREW - hex socket head, 1/4" - 20 NC 1 x 5/8"

8шт.

3

192-402

LOCK WASHER

WASHER - lock, hi-collar

8шт.

4

L33223

CAP - spool end

1шт.

5

L32999

PLATE - retainer, spool seal

3шт.

6

L33216

RING

- backup, seal

2шт.

7

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - spool

2шт.

8

L33222

SPRING - centering, spool

1шт.

9

L32984

WIPER SEAL

- square section, small

1шт.

10

L32985

GASKET

- square section, large

3шт.

11

L32996

EYE - spool

1шт.

12

L32994

O-RING,9" ID x 3" OD x 3"

- spool ends

2шт.

13

L33221

SPRING

- internal

2шт.

14

L32998

POPPET - check

2шт.

15

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, if used

2шт.

16

L33218

GUIDE - spring

2шт.

17

L32997

BOLT - spool end

1шт.
