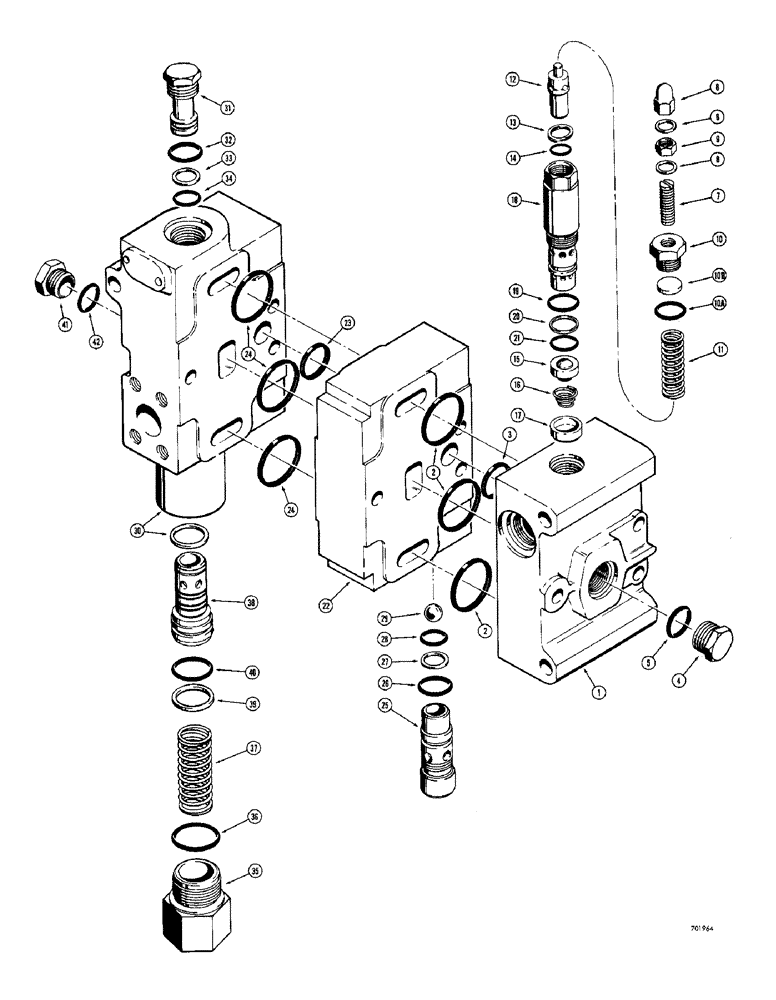

Запчасти Case 780 (364) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS (08) - HYDRAULICS

D53286

INLET SECTION - end, backhoe control valve, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - end inlet section

1шт.

2

L32985

GASKET

- square section, large

3шт.

3

L32984

WIPER SEAL

- square section, small

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 5 Hex Hd, 1 1/16"-12 ORB

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

D53290

VALVE

ASSEMBLY - relief, Includes: Ref. 6 - 21

1шт.

6

NLS

NO LONGER SERVICED

NUT - acorn

1шт.

7

176-293

SET SCREW,3/8"-24 x 1 1/2", Slotted

SCREW - adjustment, 3/8" - 24 NF x 1-1/2"

1шт.

8

23150

WASHER

GASKET - nut

2шт.

9

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

10

D53309

CAP - retainer

1шт.

10a

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap

1шт.

10b

D53291

SPACER - adjustment

1шт.

11

L33238

SPRING

- relief valve

1шт.

12

L32987

SEAT

- spring

1шт.

13

L33237

RING

- backup, seat

1шт.

14

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- seat

1шт.

15

NSS

NOT SOLD SEPARAT

BALL AND RETAINER - spring seat

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - conical

1шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- body, large

1шт.

20

L32619

RING

- backup, seal

1шт.

21

L32993

O-RING,40756" ID x 40756" OD x 1"

- body, small

1шт.

L32976

INLET SECTION - center, backhoe control valve, Includes: Ref. 22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - center inlet section

1шт.

23

L32984

WIPER SEAL

- square section, small

1шт.

24

L32985

GASKET

- square section, large

3шт.

L33219

VALVE, CHECK

CHECK VALVE - anti-cavitation, Includes: Ref. 25 - 29

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- body, large

1шт.

27

L32619

RING

- backup, seal

1шт.

28

L32993

O-RING,40756" ID x 40756" OD x 1"

- body, small

1шт.

29

211-16

BALL

- steel, 11/16"

1шт.

L32979

OUTLET SECTION - backhoe control valve, Includes: Ref. 30 - 42

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING AND INSERT - outlet section

1шт.

31

L33235

PLUG - special, outlet section, Includes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Plug

1шт.

33

L32991

RING

- backup

1шт.

34

L33234

O-RING,1" ID x 40546" OD x 3"

- plug, small

1шт.

35

L33233

CAP - regeneration check

1шт.

36

D27878

O-RING,1.609" ID x 1.887" OD

- cap

1шт.

37

L33232

SPRING - regeneration check

1шт.

38

D54194

SEAT - regeneration check

1шт.

39

L32992

RING

- backup, seal

1шт.

40

L32995

O-RING,40546" ID x 40548" OD x 1"

- seat

1шт.

41

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 42 Hex Hd, 1 1/16"-12 ORB

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.
