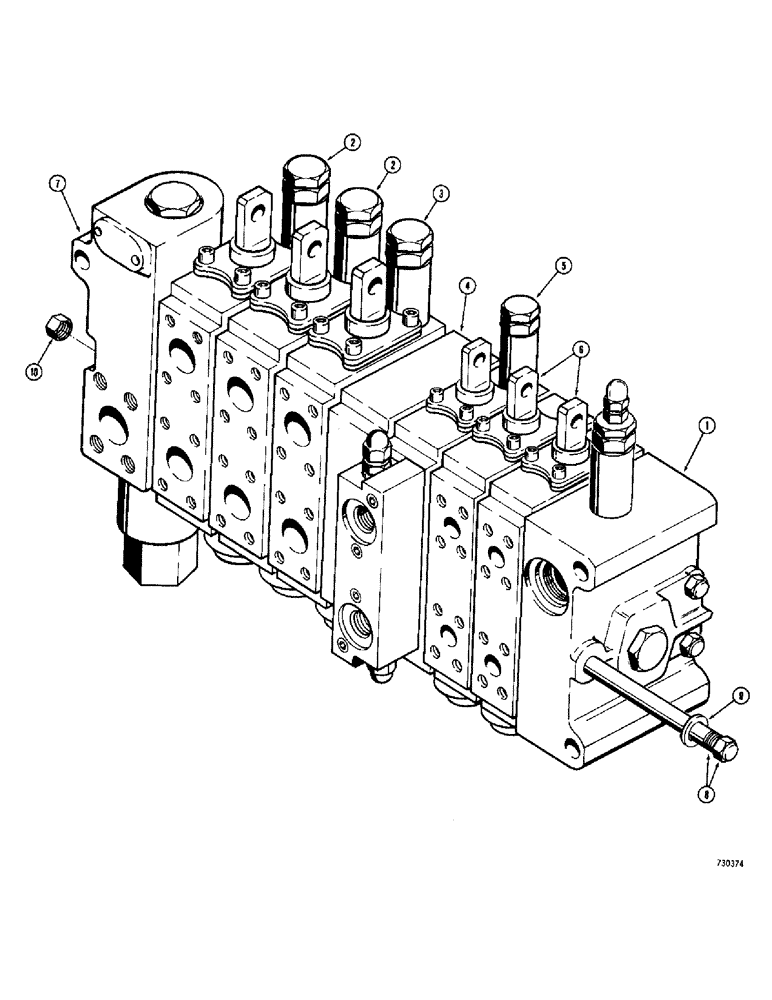

Запчасти Case 780 (358) - D54703 BACKHOE CONTROL VALVE, WITHOUT POWER ASSIST FEATURE (08) - HYDRAULICS

D54703

VALVE

- control, backhoe, Includes: Ref. 1 - 10

1шт.

1

D53286

INLET SECTION - end, backhoe control valve, parts list Figure 364

1шт.

2

D54874

KNIFE SECTION

BUCKET AND DIPPER SECTION - backhoe control valve, parts list Figure 372

2шт.

3

D55249

BRACKET

BOOM SECTION - backhoe control valve, parts list Figure 380

1шт.

4

L32976

INLET SECTION - center, backhoe control valve, parts list Figure 364

1шт.

5

L32975

SWING SECTION - backhoe control valve, parts list Figure 368

1шт.

6

L32974

VALVE BLOCK

STABILIZER SECTION - backhoe control valve, parts list Figure 366

2шт.

7

L32979

OUTLET SECTION - backhoe control valve, parts list Figure 364

1шт.

L32980

STUD ASSEMBLY - backhoe control valve, Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

STUD AND NUT - control valve

1шт.

9

D30694

WASHER - stud

2шт.

10

25-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2" - 13 NC

1шт.
