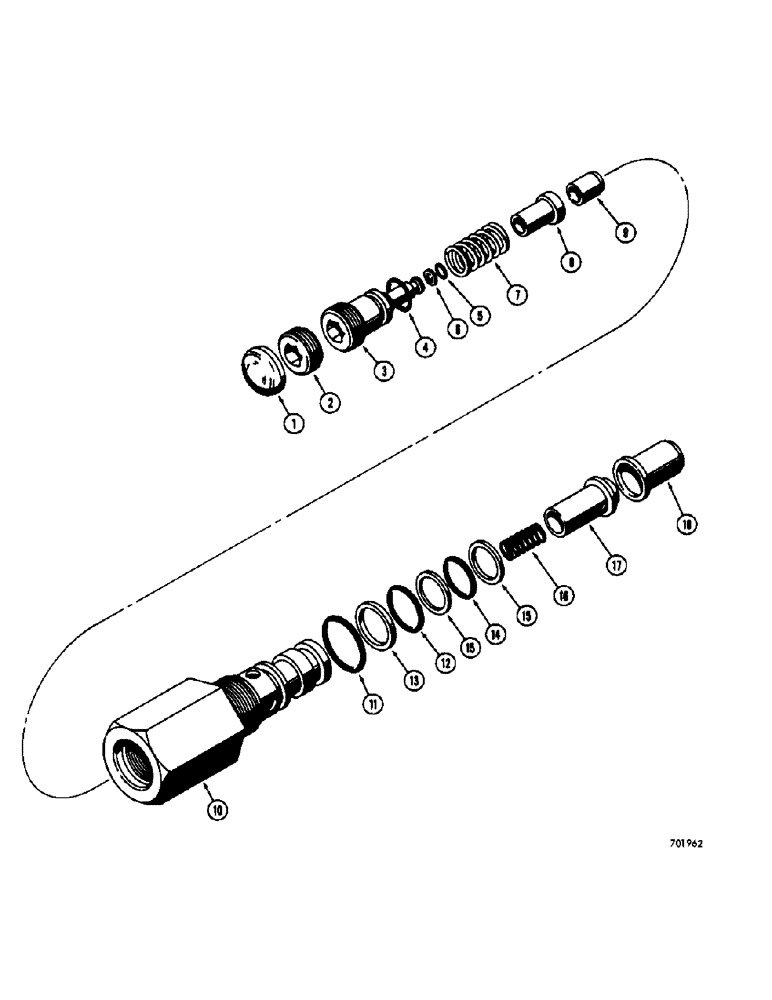

Запчасти Case 780 (356) - LOADER CONTROL VALVE, SECONDARY RELIEF VALVE (08) - HYDRAULICS

L35386

VALVE

RELIEF CARTRIDGE ASSEMBLY - secondary, Includes: Ref. 1 - 18

1шт.

1

41-14

PLUG

- expansion, 7/8" dia.

3шт.

2

L33449

PLUG

- end cap

3шт.

3

L33450

GUIDE

- spring

3шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spring guide, large

3шт.

5

D40356

O-RING

- spring guide, small

3шт.

6

D40357

RING

- backup, seal

3шт.

7

D37148

SPRING

- plunger

3шт.

8

D37074

PLUNGER

- relief

3шт.

9

D37075

SEAT

- plunger

3шт.

10

L33448

CAP

BODY - check valve

3шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- body to valve

3шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- check valve body, center

3шт.

13

A41346

RING

- backup, seal

3шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- check valve body, end

3шт.

15

G32626

RING

- backup, seal

6шт.

16

D48818

SPRING

- check poppet

3шт.

17

L32622

VALVE POPPET

POPPET - check

3шт.

18

L32631

VALVE

SEAT - check poppet

3шт.
