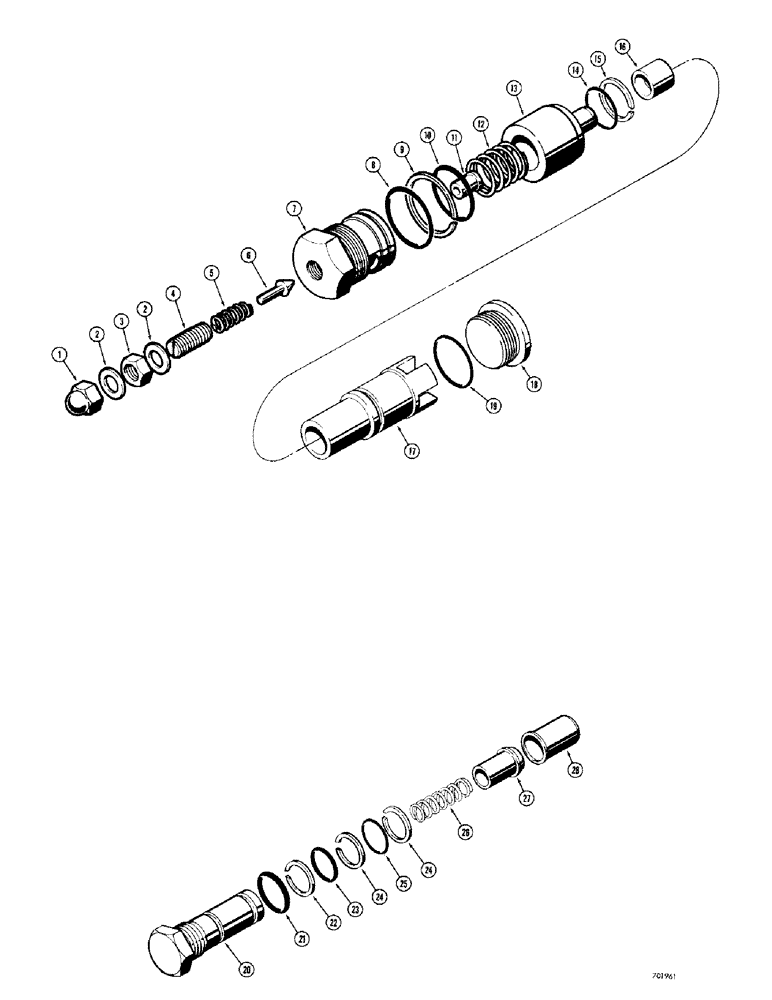

Запчасти Case 780 (354) - LOADER CONTROL VALVE, MAIN RELIEF VALVE, CHECK VALVE (08) - HYDRAULICS

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF

1шт.

4

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

- set, relief valve

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

L32615

CAP

- relief valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- valve cap, large

1шт.

9

L32619

RING

- backup, valve cap

1шт.

10

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- valve cap, small

1шт.

11

D26266

SEAT

- plunger

1шт.

12

L32617

SPRING

- relief valve

1шт.

13

L32620

VALVE POPPET

POPPET - relief valve

1шт.

14

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- poppet

1шт.

15

L32619

RING

- backup

1шт.

16

L32618

VALVE

SEAT - relief valve

1шт.

17

L32616

SLEEVE

- relief valve

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

end, spool, Includes Ref 19 Hex Soc, 1 3/16"-12 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

20

L32632

VALVE

CAP - check valve

1шт.

21

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- valve cap, outer

1шт.

22

A41346

RING

- backup, center seal

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- valve cap, center

1шт.

24

G32626

RING

- backup, inner seal

2шт.

25

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- valve cap, inner

1шт.

26

D48818

SPRING

- check valve

1шт.

27

L32622

VALVE POPPET

POPPET - check valve

1шт.

28

L32631

VALVE

SEAT - check valve, 1" (25 mm) long, if used

1шт.

28

L35334

SLEEVE

SEAT - check valve, 1/2" (13 mm) long, if used

1шт.
