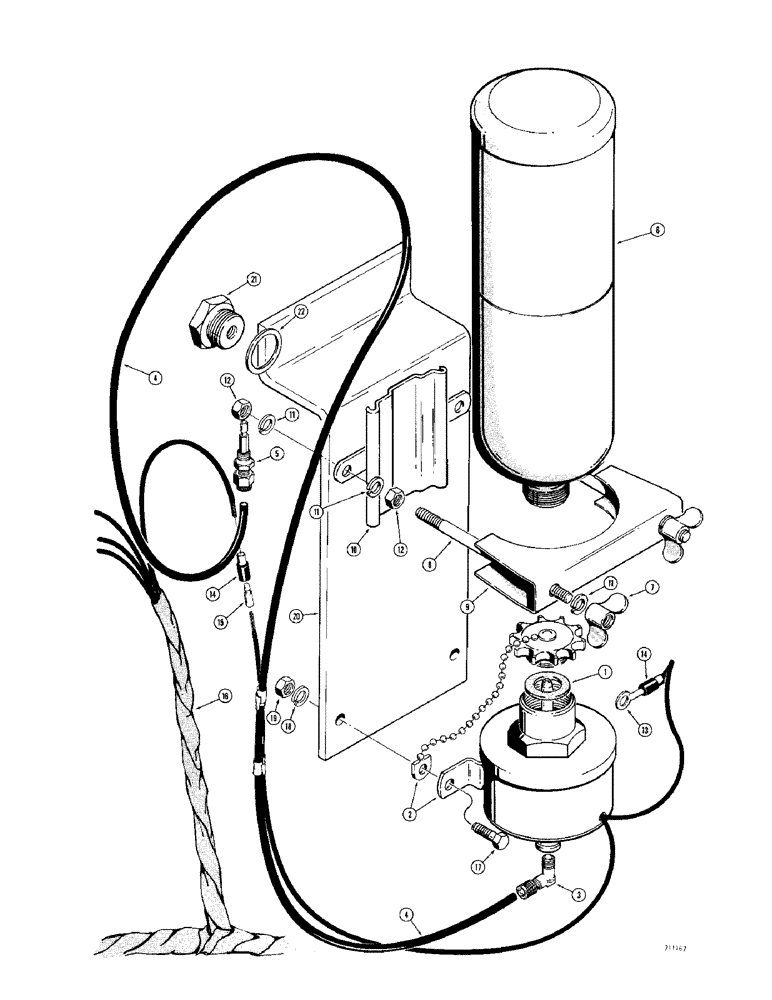

Запчасти Case 780 (020) - COLD START SYSTEM (02) - ENGINE

1

L30188

GASKET

- cap, body cover

1шт.

2

L31773

VALVE

- metering, 24 volt, order L33143 atomizer assembly and (1) L35896 valve and coil assembly

1шт.

3

T39541

ELBOW

FITTING - tube to metering valve

1шт.

4

L31774

TUBE

- metering, Serial Range: valve-nozzle

1шт.

5

L35955

NOZZLE CAP

NOZZLE - manifold

1шт.

6

REF

INSTRUCTION

CYLINDER - cold start fluid, Turner (Quick Start) No. LP535

1шт.

L32710

BRACKET

AND CLAMP ASSEMBLY - cylinder support, Includes: Ref. 7 - 12

1шт.

7

129-419

WING NUT,5/16"-18

NUT - winged, 5/16" - 18 NC plated

2шт.

8

L32834

STUD

-, Serial Range: saddle-bracket

2шт.

9

L73711

CLAMP

- cylinder support

1шт.

10

L32710

BRACKET

- saddle clamp

1шт.

11

92-5

LOCK WASHER,5/16"

6шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

13

223-52

FUSE

TERMINAL - eyelet, ground wire

1шт.

14

223-83

SLEEVE

TERMINAL - sleeve, harness

2шт.

15

L11778

CONNECTOR, ELEC

CONNECTOR - bullet, male

1шт.

16

D54527

HARNESS

- wiring, R.H. panel

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

20

D54834

BRACKET - mounting, cold start unit

1шт.

21

L10283

PLUG

- manifold, connects to air restrictor gauge tube

1шт.

22

A20916

MANIFOLD GASKET

WASHER - manifold plug

1шт.
