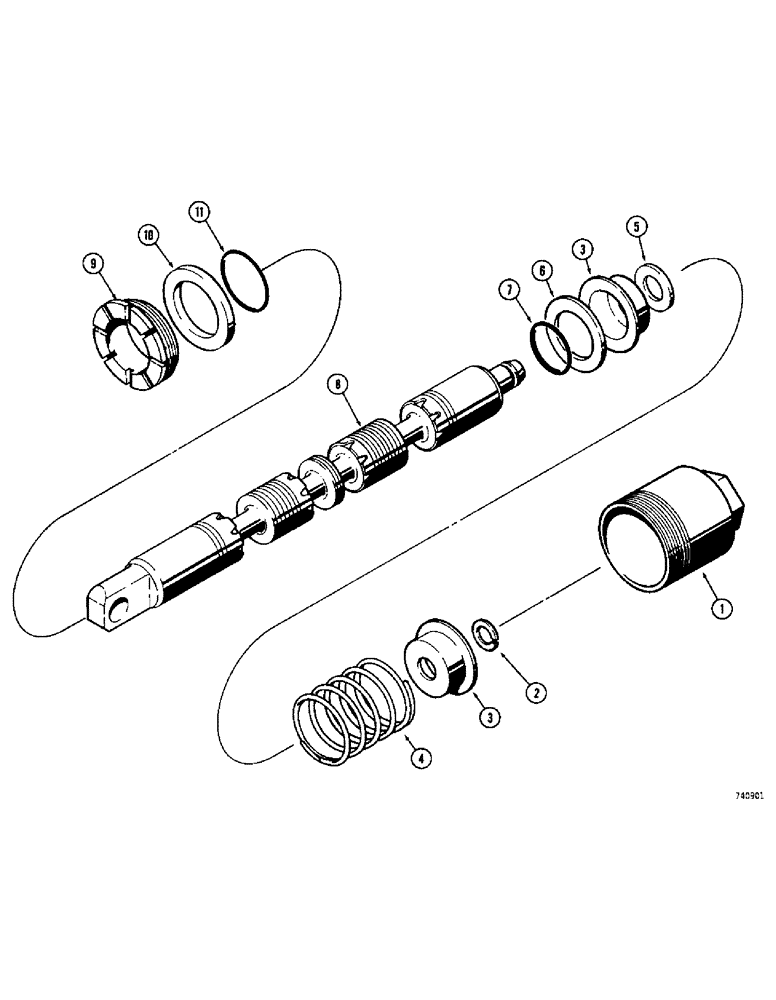

Запчасти Case 780 (352) - LOADER CONTROL VALVE, L33751 CLAM SPOOL (08) - HYDRAULICS

L33751

SPOOL

ASSEMBLY - valve, clam, Includes: Ref. 1 - 8

1шт.

1

N6775

COVER

- spool end

1шт.

2

A27020

RING

- retaining, at spool end

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

4

A15981

SPRING

- spool centering

1шт.

5

W12113

BUSHING

SPACER - spring seat

1шт.

6

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

7

N6577

O-RING

- spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, clam

1шт.

9

L32608

RETAINER

AND WIPER - spool

1шт.

10

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

11

N6577

O-RING

- spool

1шт.
