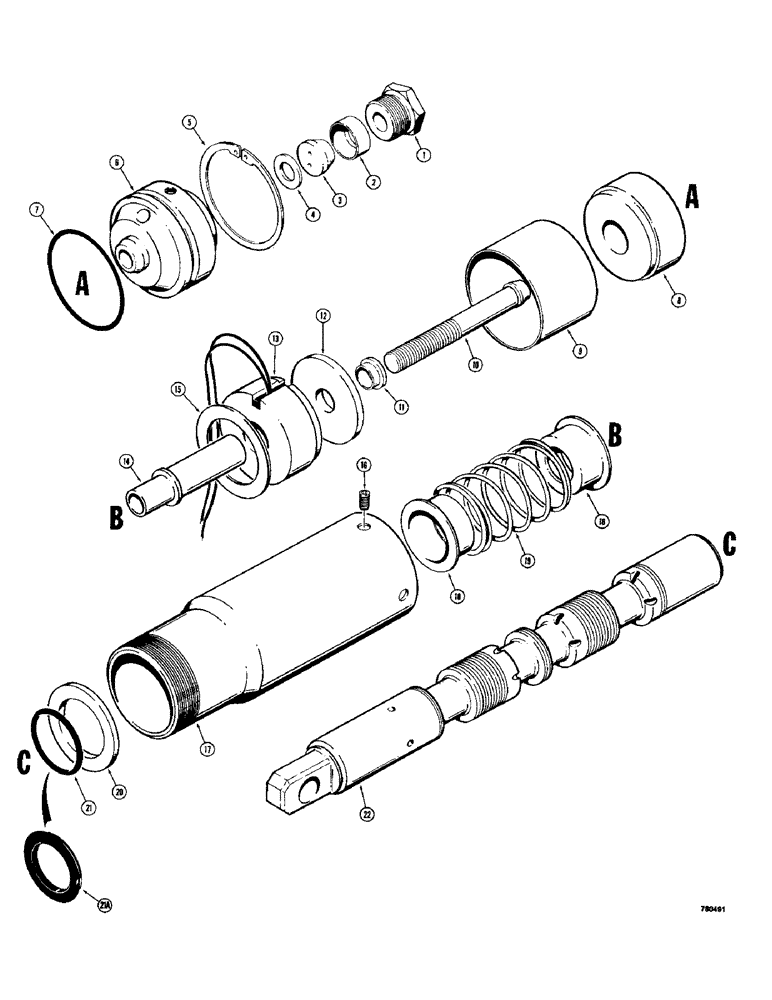

Запчасти Case 780 (350) - LOADER CONTROL VALVE, D56346 TILT SPOOL WITH MAGNETIC OPERATED DETENT (08) - HYDRAULICS

D56346

SPOOL

ASSEMBLY - valve, tilt, Includes: Ref. 1 - 22

1шт.

1

L33773

PLUG

- seal access

1шт.

2

L33772

RING

CLAMP - ring, magnetic detent seal

1шт.

3

L33771

SEAL

- magnetic detent lead

1шт.

4

L33770

WASHER

- seal

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - retaining, end plug

1шт.

6

L33768

PLUG

- spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - plug

1шт.

8

L33767

BUSHING

SPACER - dummy coil, magnetic detent

1шт.

9

L33766

SPACER

- coil

1шт.

10

D56450

SCREW

- special, magnetic detent

1шт.

11

L33764

SPACER

- magnetic detent

1шт.

12

L33763

WASHER

- special, clapper

1шт.

13

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

14

D56452

STUD

SPACER TUBE - magnetic detent

1шт.

tube is threaded.

1шт.

D56452 spacer tube - Short end of this

1шт.

15

L33761

WASHER

- special, coil shim

1шт.

16

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex socket headless, no. 10 - 24 NC x 3/8"

1шт.

17

L33759

HOUSING

- magnetic detent

1шт.

18

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

19

L33758

VALVE SPRING

SPRING - centering

1шт.

20

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - O-ring

1шт.

21

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool, if used

1шт.

21a

D80477

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - spool, lip type, alternate to N6270, if used

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve, tilt

1шт.
