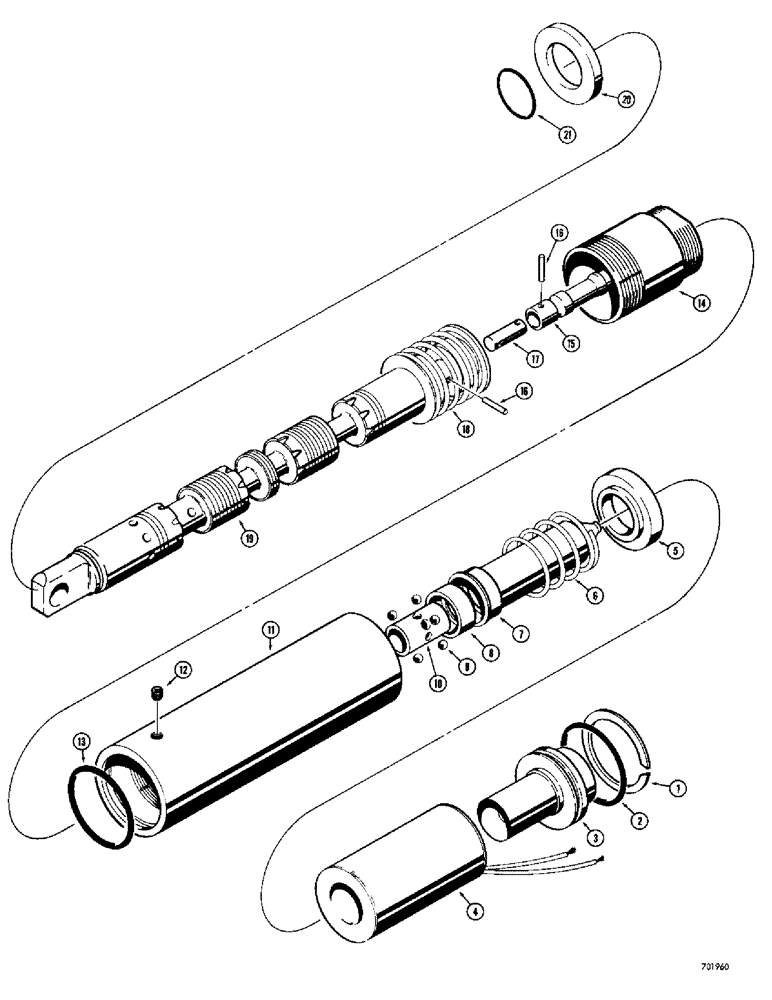

Запчасти Case 780 (348) - LOADER CONTROL VALVE, D54190 TILT SPOOL WITH SOLENOID OPERATED DETENT (08) - HYDRAULICS

D54190

SPOOL

ASSEMBLY - loader tilt, Includes: Ref. 1 - 21

1шт.

D54264

SPOOL

SOLENOID DETENT KIT, Includes: Ref. 1 - 14

1шт.

1

C16516

RING

- stop retaining

1шт.

2

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- plunger stop at housing

1шт.

3

L31307

STOP

- solenoid plunger

1шт.

4

L31316

COIL ASSY.

COIL - solenoid, 24 volt

1шт.

5

L31305

WASHER

- spring retaining

1шт.

6

D54179

SPRING - detent

1шт.

7

L31306

PLUNGER

- solenoid

1шт.

8

L30646

SPRING

CAM - detent

1шт.

9

211-5

BALL,3/16" Dia

- detent, 3/16"

6шт.

10

L30645

RETAINER

- ball

1шт.

11

L31304

HOUSING

- solenoid

1шт.

12

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4" - 20 NC x 1/4"

2шт.

13

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - housing

1шт.

14

L32372

COVER ASSY

HOUSING - detent

1шт.

15

L32650

BARREL

- spool detent

1шт.

16

138-2012

PIN,1/8" x 1/2", Coiled

Spool to detent barrel 1/8" x 1/2", Coiled

2шт.

17

D33858

LINK

- detent barrel

1шт.

18

A15981

SPRING

- centering

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - valve, tilt

1шт.

20

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - O-ring

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool seal

1шт.
