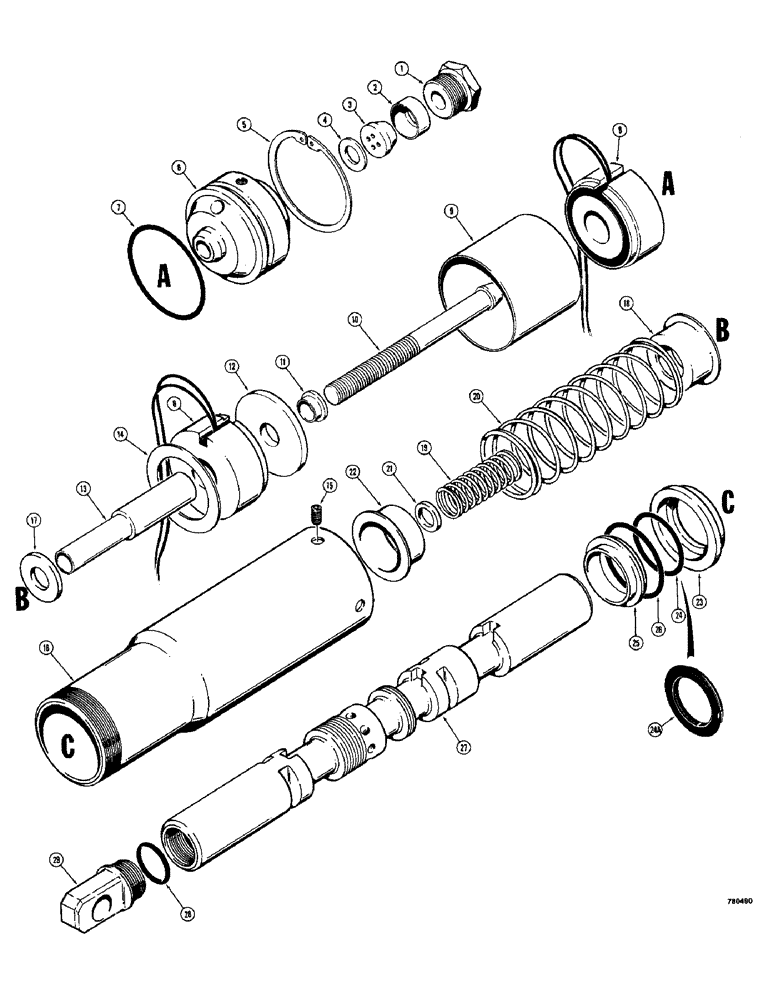

Запчасти Case 780 (346) - LOADER CONTROL VALVE, D80475 LIFT SPOOL WITH MAGNETIC OPERATED DETENT (08) - HYDRAULICS

D80475

SPARE PART

SPOOL ASSEMBLY - valve, lift, Includes: Ref. 1 - 29

1шт.

1

L33773

PLUG

- seal access

1шт.

2

L33772

RING

CLAMP - ring, magnetic detent seal

1шт.

3

L33782

SEAL

- magnetic detent lead

1шт.

4

L33770

WASHER

- seal

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - retaining, end plug

1шт.

6

L33768

PLUG

- spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - plug

1шт.

8

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

2шт.

9

L33781

SPACER

- coil, 1.750 (44.45 mm) long, if used

1шт.

9

D80476

SPACER

- coil, 1.781 (45.24 mm) long, if used

1шт.

10

D56450

SCREW

- special, magnetic detent

1шт.

11

L33764

SPACER

- magnetic detent

1шт.

12

L33763

WASHER

- special, clapper

1шт.

13

D56449

STUD

SPACER TUBE - magnetic detent

1шт.

14

L33761

WASHER

- special, coil shim

1шт.

15

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex socket headless, #10 - 24 NC x 3/8"

1шт.

16

L33778

HOUSING

- magnetic detent

1шт.

17

L33777

WASHER

- spring retaining

1шт.

18

A16846

CAP

SEAT - spring, inner

1шт.

19

L33775

SPRING

- feel, magnetic detent

1шт.

20

L33776

SPRING

- centering

1шт.

21

L33774

RING

WASHER - special

1шт.

22

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring, outer

1шт.

23

L32640

RETAINER

KIT - inner

1шт.

24

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- small, if used

1шт.

24a

D80477

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - spool, lip type, alternate to N6270, if used

1шт.

25

L32639

RETAINER

- outer

1шт.

26

L32613

O-RING

- large

1шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift

1шт.

29

L51030

EYE

- spool

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- spool

1шт.
