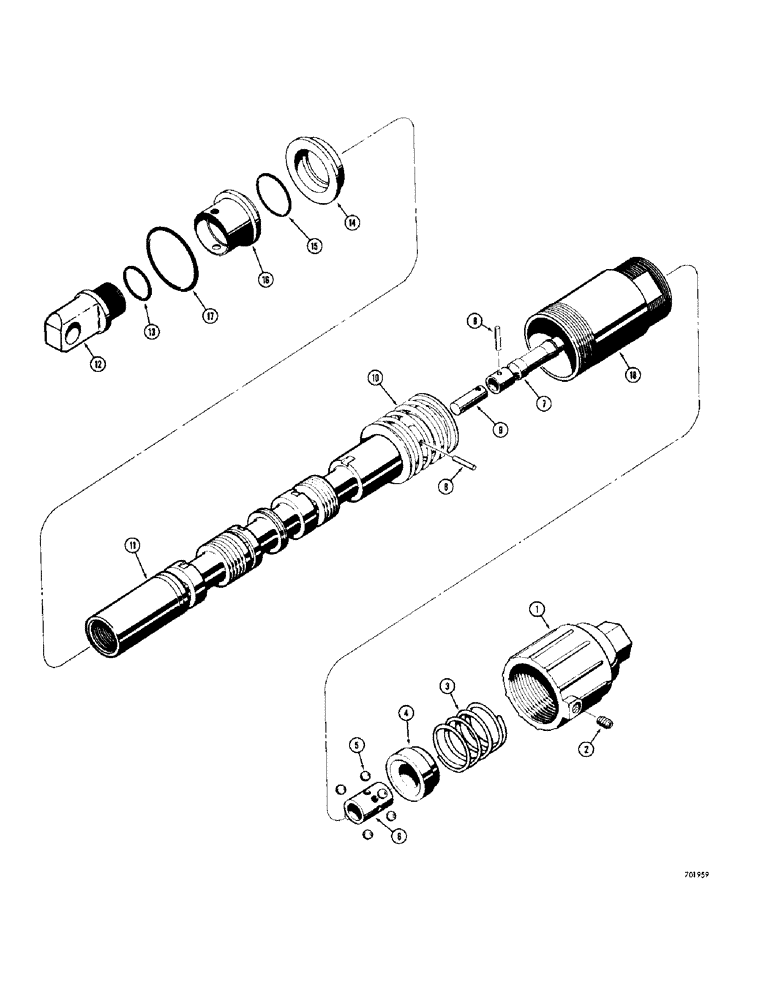

Запчасти Case 780 (344) - LOADER CONTROL VALVE, D54180 LIFT SPOOL, LOADER CONTROL VALVE D54774 LIFT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
D54180
SPOOL
ASSEMBLY - loader lift, Includes: Ref. 1 - 18
1шт.
1
A16854
COVER
CAP - spool end
1шт.
2
176-38
SCREW,Sl Hdls, 1/4" - 20 x 1/2"
- set, slotted headless, 1/4" - 20 NC x 1/2"
1шт.
3
D54178
SPRING
- detent
1шт.
4
A16852
RETAINER
CAM - detent
1шт.
5
211-5
BALL,3/16" Dia
- steel, 3/16"
6шт.
6
A16848
SLEEVE CYLINDER
RETAINER - ball
1шт.
D54184
SPOOL
KIT - loader lift, Includes: Ref. 7 - 13
1шт.
7
L32651
BARREL
DETENT BARREL - spool
1шт.
8
138-2035
PIN,1/8" x 11/16", Coiled
Link to spool and barrel 1/8" x 11/16", Coiled
2шт.
9
D33858
LINK
- detent, Serial Range: barrel-spool
1шт.
10
D54177
SPRING
- centering
1шт.
11
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - loader lift
1шт.
12
L51030
EYE
- spool
1шт.
14
L32640
RETAINER
- O-ring
1шт.
15
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- small
1шт.
16
L33433
RESTRICTOR
- sleeve
1шт.
17
A32172
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- large
1шт.
18
L33434
OILER FABRIC
HOUSING - spool detent
1шт.
D54774
SPOOL ASSEMBLY - loader lift, Includes: Ref. 1 - 18
1шт.
1
A16854
COVER
CAP - spool end
1шт.
2
176-38
SCREW,Sl Hdls, 1/4" - 20 x 1/2"
- set, slotted headless, 1/4" - 20 NC x 1/2"
1шт.
3
D54178
SPRING
- detent
1шт.
4
A16852
RETAINER
CAM - detent
1шт.
5
211-5
BALL,3/16" Dia
- steel, 3/16"
6шт.
6
A16848
SLEEVE CYLINDER
RETAINER - ball
1шт.
7
L32651
BARREL
DETENT BARREL - spool
1шт.
8
138-2035
PIN,1/8" x 11/16", Coiled
Link to spool and barrel 1/8" x 11/16", Coiled
2шт.
9
D33858
LINK
- detent, Serial Range: barrel-spool
1шт.
10
D54177
SPRING
- centering
1шт.
11
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - loader lift
1шт.
12
L51030
EYE
- spool
1шт.
14
L31640
RETAINER - seal
1шт.
15
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- small
1шт.
16
L33433
RESTRICTOR
- sleeve
1шт.
17
A32172
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
- large
1шт.
18
L33434
OILER FABRIC
HOUSING - spool detent
1шт.
13
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- spool eye
1шт.
13
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- spool eye
1шт.
Выбрано товаров: 39
