Запчасти Case 780 (342) - D76029 LOADER CONTROL VALVE - 3 SPOOL, WITH MAGNETIC DETENT ON LIFT & TILT SPOOL (08) - HYDRAULICS

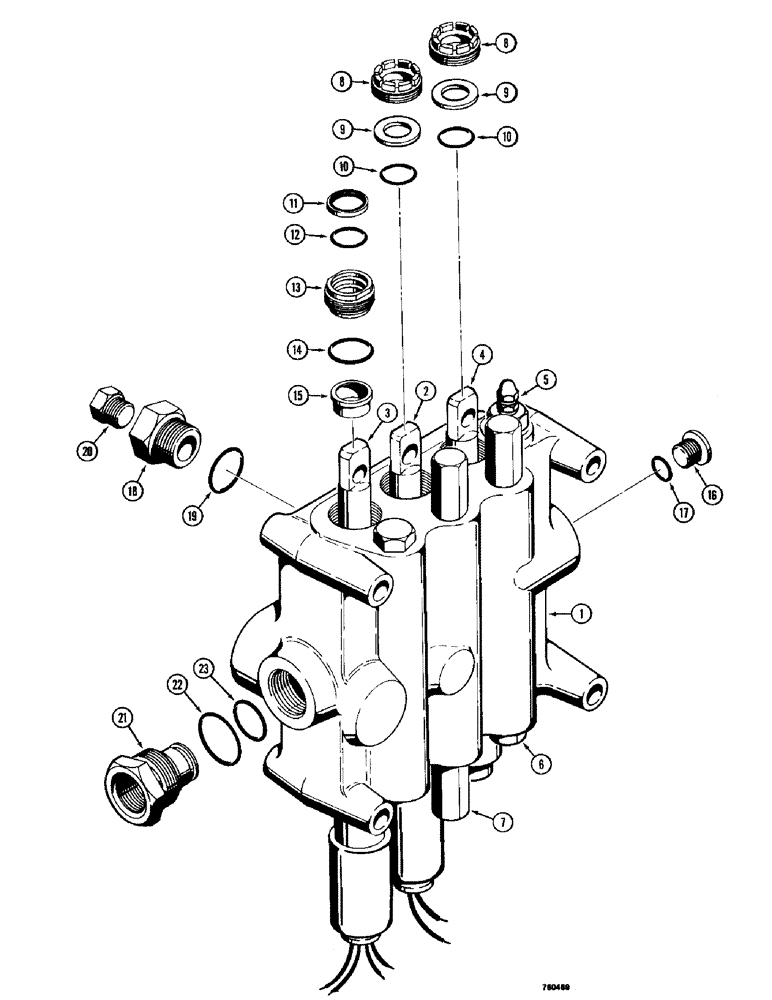

Схема запчастей Case 780 - (342) - D76029 LOADER CONTROL VALVE - 3 SPOOL, WITH MAGNETIC DETENT ON LIFT & TILT SPOOL (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D76029

VALVE

- loader control, 3 spool, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

D56346

SPOOL

- loader tilt, parts list Figure 350

1шт.

3

D80475

SPARE PART

SPOOL - loader lift, parts list Figure 346

1шт.

4

L33751

SPOOL

- loader clam, parts list Figure 352

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 354

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 354

2шт.

7

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 356

4шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spools, Includes: Ref. 8 - 10

2шт.

8

L32608

RETAINER

AND WIPER - spool

1шт.

9

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

10

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool

1шт.

D54775

SEAL

ASSEMBLY - lift spool, Includes: Ref. 11 - 15

1шт.

11

D59675

WIPER

- spool

1шт.

12

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- small, if used

1шт.

12

D80477

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - lip type, alternate to N6270, if used, not shown

1шт.

13

K59674

RETAINER - seal

1шт.

14

L32613

O-RING

- large

1шт.

15

D59673

SLEEVE CYLINDER

SLEEVE - spool

1шт.

16

86625138

PLUG,7/18" - 14

Body, Includes Ref. 17 Hex Soc, 7/8"-14 ORB

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

18

D54870

FITTING - pressure check, Includes: Ref. 19

1шт.

19

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

20

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

L33430

FITTING

ASSEMBLY - high pressure carryover, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

FITTING - high pressure carryover

1шт.

22

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- large

1шт.

23

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- small

1шт.

Выбрано товаров: 28
