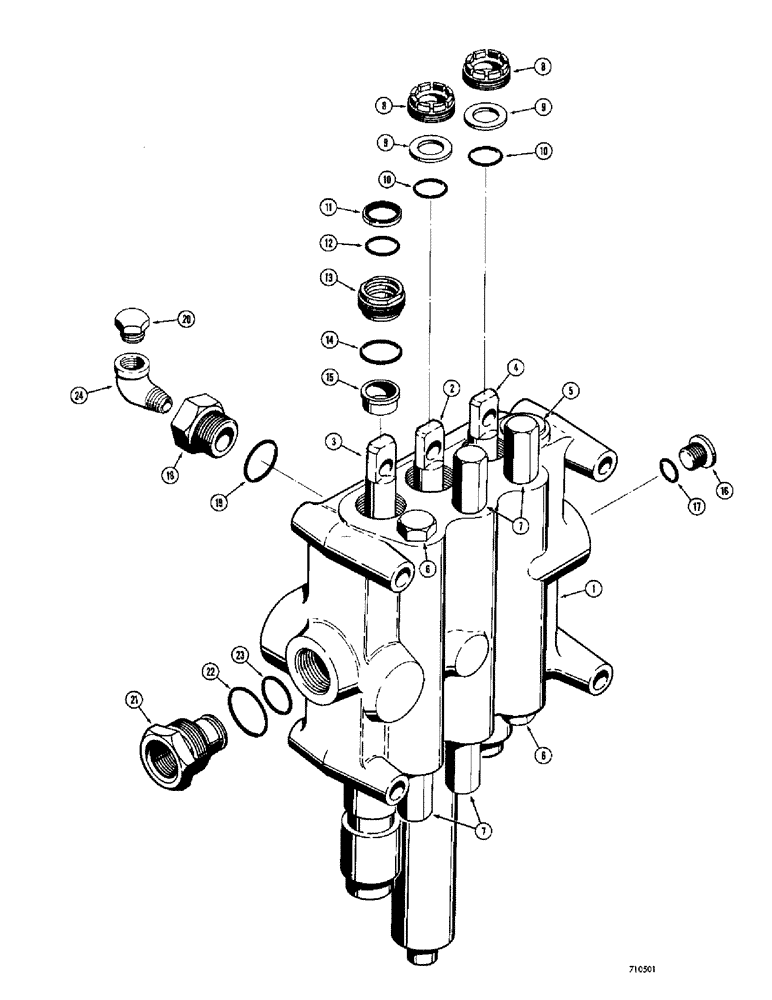

Запчасти Case 780 (338) - L20069 LOADER CONTROL VALVE - 3 SPOOL, WITH SOLENOID OPERATED DETENT ON TILT SPOOL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L20069
LINK
VALVE - loader control, 3 spool, order D16552 kit for service, not shown, Includes: Ref. 1 - 23
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
D54190
SPOOL
- loader tilt, parts list Figure 348
1шт.
3
D54180
SPOOL
- loader lift, parts list Figure 344
1шт.
4
L33751
SPOOL
- loader clam, parts list Figure 352
1шт.
5
NSS
NOT SOLD SEPARAT
VALVE - main relief, parts list Figure 354
1шт.
6
NSS
NOT SOLD SEPARAT
VALVE - check, parts list Figure 354
2шт.
7
NSS
NOT SOLD SEPARAT
VALVE - secondary relief, parts list Figure 356
4шт.
NSS
NOT SOLD SEPARAT
SEAL ASSEMBLY - tilt and clam spools, Includes: Ref. 8 - 10
2шт.
8
L32608
RETAINER
AND WIPER - spool
1шт.
9
L32604
RETAINER,1.007" ID x 1.672" OD x 0.187"
RETAINER - seal
1шт.
10
N6270
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- spool
1шт.
NSS
NOT SOLD SEPARAT
SEAL ASSEMBLY - lift spool, Includes: Ref. 11 - 15
1шт.
11
A28211
OIL SEAL
WIPER - spool
1шт.
12
N6270
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
- small
1шт.
13
L32612
RETAINER
- seal
1шт.
14
L32613
O-RING
- large
1шт.
15
L32611
SLEEVE
- spool
1шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- plug
1шт.
18
D54870
FITTING - pressure check, Includes: Ref. 19
1шт.
19
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Fitting
1шт.
20
221-662
PLUG,Hex Hd, 1/4"-18
- pressure check adapter
1шт.
L33430
FITTING
ASSEMBLY - high pressure carryover, Includes: Ref. 21 - 23
1шт.
21
NSS
NOT SOLD SEPARAT
FITTING - high pressure carryover
1шт.
22
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
- large
1шт.
23
D54277
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
- small
1шт.
24
221-412
ELBOW,90 Degree, 1/4"-27, NPT
FITTING - street, 90 degrees, 1/4" NPT, used with pressure check adapter
1шт.
Выбрано товаров: 28
