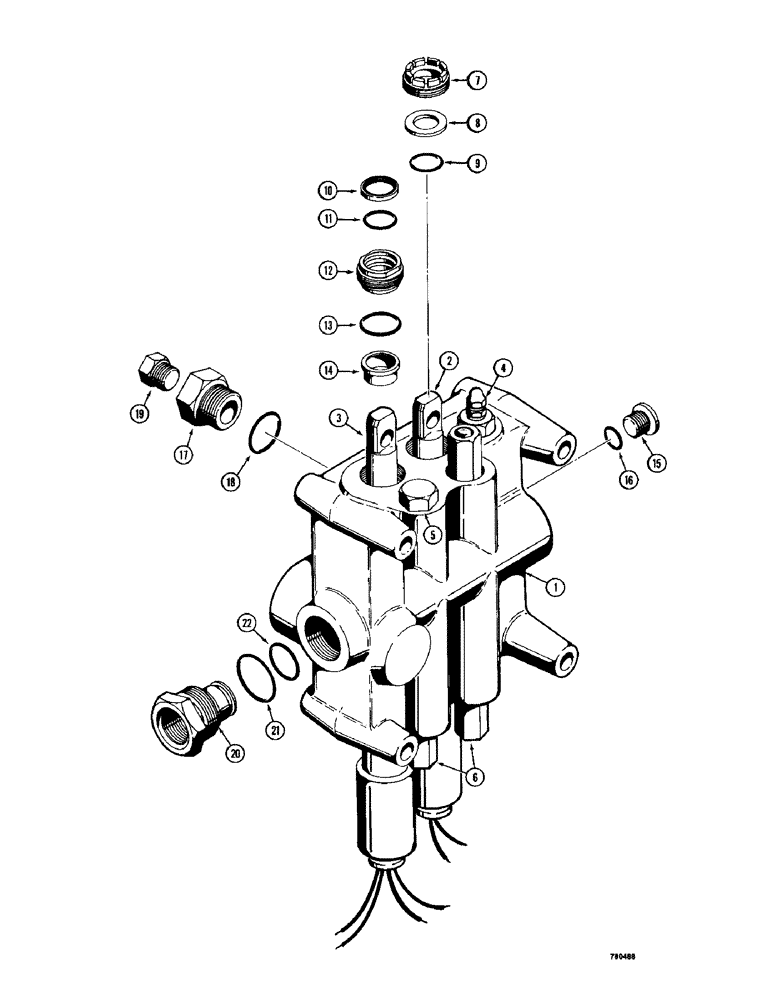

Запчасти Case 780 (336) - D74985 LOADER CONTROL VALVE - 2 SPOOL, WITH MAGNETIC DETENT ON LIFT & TILT SPOOLS (08) - HYDRAULICS

D74985

VALVE

- loader control, 2 spool, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

D56346

SPOOL

- loader tilt, parts list Figure 350

1шт.

3

D80475

SPARE PART

SPOOL - loader lift, parts list Figure 346

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 354

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 354

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 356

3шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes: Ref. 7 - 9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool

1шт.

D54775

SEAL

ASSEMBLY - lift spool, Includes: Ref. 10 - 14

1шт.

10

D59675

WIPER

- spool

1шт.

11

N6270

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- small, if used

1шт.

11

D80477

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - lip type, alternate to N6270, if used, not shown

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

13

L32613

O-RING

- large

1шт.

14

D59673

SLEEVE CYLINDER

SLEEVE - spool

1шт.

15

86625138

PLUG,7/18" - 14

Body, Includes Ref. 16 Hex Soc, 7/8"-14 ORB

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

17

D54870

FITTING - pressure check, Includes: Ref. 18

1шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.

19

221-662

PLUG,Hex Hd, 1/4"-18

- pressure check adapter

1шт.

L33430

FITTING

ASSEMBLY - high pressure carryover, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

FITTING - high pressure carryover

1шт.

21

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- large

1шт.

22

D54277

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

- small

1шт.
