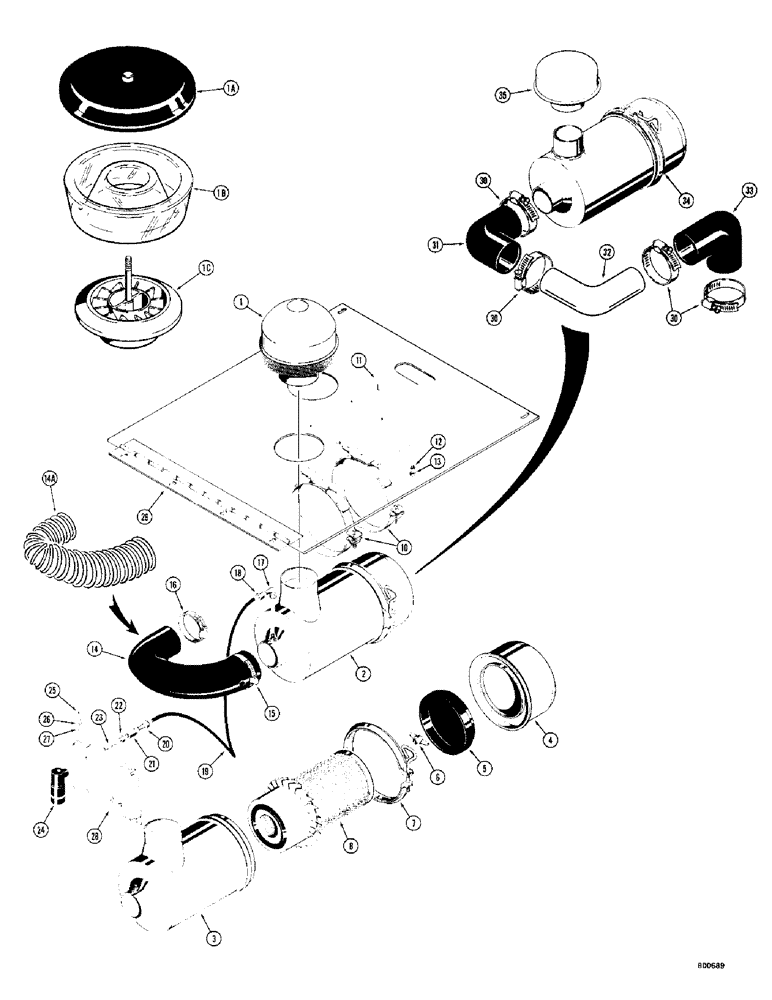

Запчасти Case 780 (018) - AIR CLEANER & CONNECTIONS, TRAC SN. 5500550 & AFT MODELS W/TURBO CHARGED ENG (02) - ENGINE

1

A16575

PRESCREENER

SPARE PART CAP - air cleaner

1шт.

A43486

PRECLEANER

Includes Ref. 1A - 1C

1шт.

1a

A42281

COVER

1шт.

1b

A42283

SPARE PART

BOWL

1шт.

1c

NSS

NOT SOLD SEPARAT

BASE

1шт.

2

D55864

CLEANER

AIR engine, Includes Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

A40951

CUP

Air cleaner

1шт.

5

D37979

BAFFLE

Air cleaner

1шт.

6

D78354

WING NUT

WASHER - element

1шт.

wingnut (includes D37976 gasket).

1шт.

D78354 element nut - This is a steel

1шт.

7

R15731

CLAMP

Air cleaner

1шт.

8

D56453

AIR CLEANER

ELEMENT

1шт.

9

RESERVED

1шт.

10

70973

BRACKET

BAND - air cleaner mounting

2шт.

11

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

Machine

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.

14

D91184

INTAKE AIR HOSE,3.00" ID, 3.50" ID x 9.00", SAE 20R4 CLASS D2

Air cleaner to Turbo-charger

1шт.

14a

D91168

SPRING

Hose

1шт.

15

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

At air cleaner

1шт.

16

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

At turbo-charger

1шт.

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

FITTING ASSEMBLY - Includes Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING - 90 degrees

1шт.

18

222-500

TUBE NUT,5/16" - 24 NPT

Fitting to tube

1шт.

19

D55972

SPARE PART Air, Serial Range: cleaner-indicator

1шт.

222-1400

HYD CONNECTOR,Fem, 5/16"-24

FITTING - Connector, Includes Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

21

222-500

TUBE NUT,5/16" - 24 NPT

Connector

1шт.

22

L13268

LOCK NUT

Nipple retaining

1шт.

23

L13267

SPARE PART, Serial Range: Gauge-coupling

1шт.

24

A17652

ELECTRICAL GAUGE

Air cleaner restriction

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

26

92-4

LOCK WASHER,1/4"

2шт.

27

95-4

WASHER,1/4"

2шт.

28

L47233

SPARE PART Instrument, auxiliary

1шт.

29

REF

INSTRUCTION

HOOD - top, engine, see page 534 for related parts

1шт.

30

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Air cleaner and manifold to pipe, w/ non turbo charged eng

4шт.

31

D36262

LARGE HOSE

HOSE,LARGE Air cleaner to extension pipe, w/ non turbo charged eng

1шт.

32

D57527

SPARE PART Extension, air cleaner, w/ non turbo charged eng

1шт.

33

L40644

INTAKE AIR HOSE,3.00" ID, SAE 10R4

Air cleaner pipe to manifold, w/ non turbo charged eng

1шт.

34

D36261

CLEANER

AIR - dry type, see Figure 16 for related restrictor gauge parts, w/ non turbo charged eng

1шт.

35

A61277

CAP

Air cleaner, w/ non turbo charged eng

1шт.
