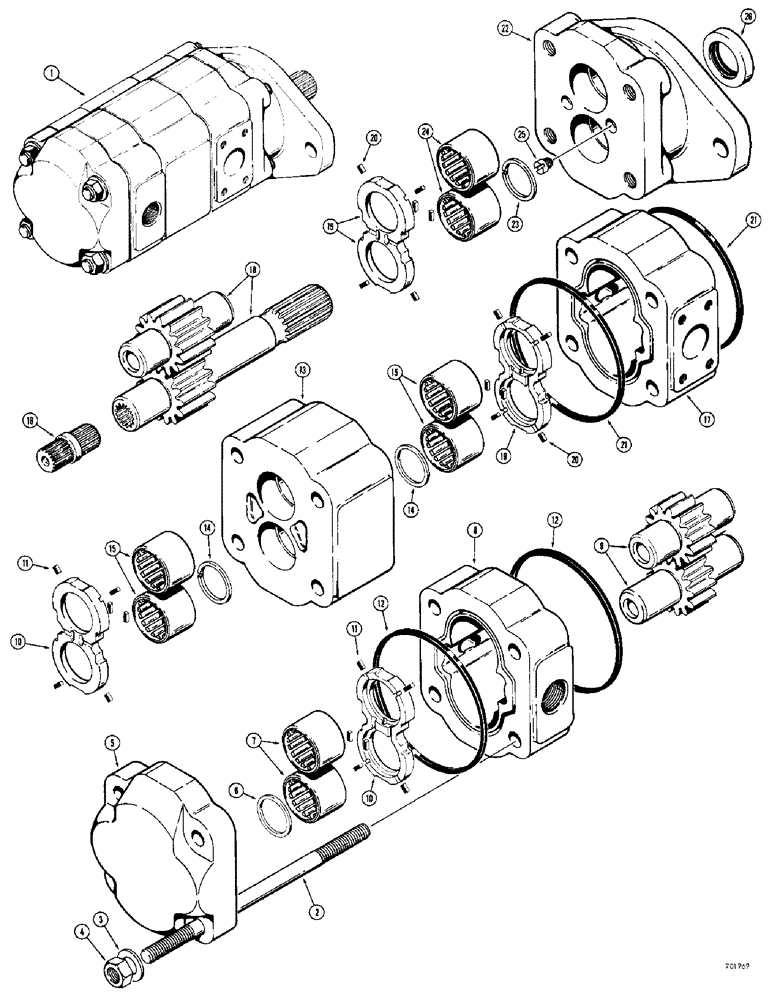

Запчасти Case 780 (330) - L23326 HYDRAULIC PUMP (08) - HYDRAULICS

1

L23326

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic

1шт.

2

L32968

STUD - special

4шт.

3

D31957

WASHER

- special

4шт.

4

86625068

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC

4шт.

L32327

KIT

COVER ASSEMBLY - closed end, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

6

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

7

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

8

L32967

HOUSING

- gear, 1-3/4" (44 mm)

1шт.

9

L32325

GEAR

SET - drive and driven, matched

1шт.

10

D31955

PLATE

- thrust

2шт.

11

L32099

SEAL

- pocket, thrust plate

12шт.

12

D41391

O-RING

SEAL - ring, square edge

2шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - bearing, Includes: Ref. 14 and 15

1шт.

14

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

2шт.

15

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

4шт.

16

L32324

SHAFT

- connecting, drive gears

1шт.

17

L32004

HOUSING

- gear, 2-1/4" (57 mm)

1шт.

18

L32965

GEAR-SET

GEAR SET - drive and driven, matched

1шт.

19

D31955

PLATE

- thrust

2шт.

20

L32099

SEAL

- pocket, thrust plate

12шт.

21

D41391

O-RING

SEAL - ring, square edge

2шт.

L32964

COVER ASSEMBLY - shaft end, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - pump end

1шт.

23

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

24

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

25

L32320

PLUG

- special

1шт.

26

L32318

SEAL

- shaft, double lip

1шт.
