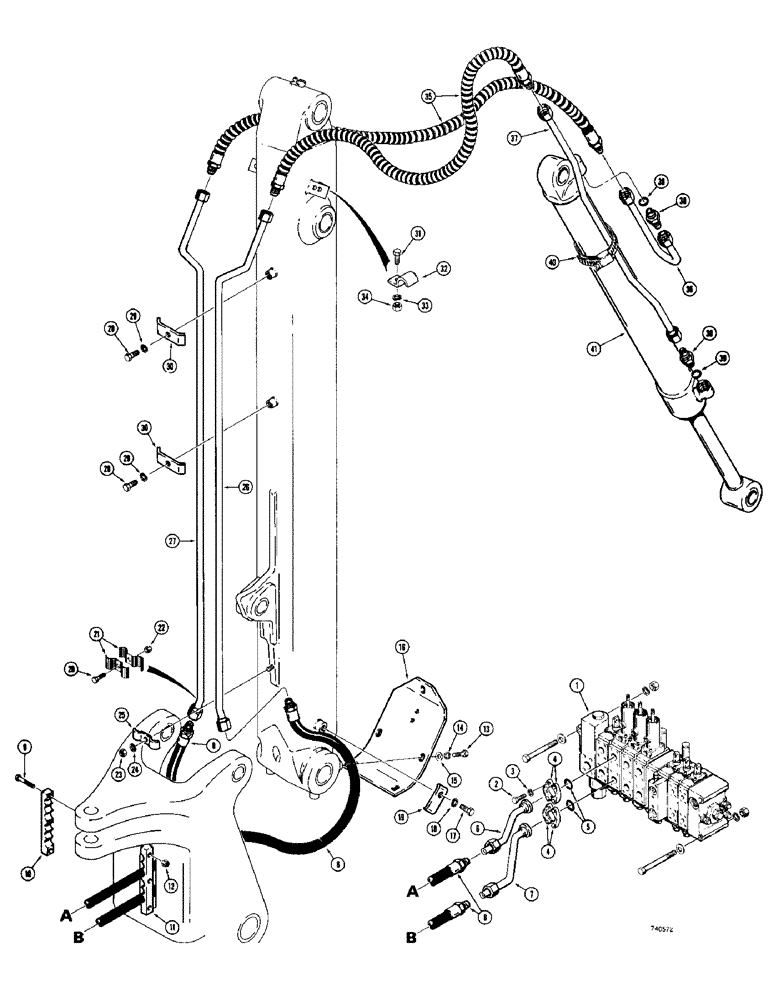

Запчасти Case 780 (328) - BACKHOE BUCKET HYDRAULIC CIRCUIT, WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

D56561

VALVE - control, backhoe, 7 spool, parts list Figure 362

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

92-6

LOCK WASHER,3/8"

8шт.

4

A12306

FLANGE

- split

4шт.

5

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- tube seal

2шт.

6

D55604

TUBE - backhoe valve bucket section, upper port

1шт.

7

D55602

TUBE - backhoe valve bucket section, lower port

1шт.

8

D55599

HOSE ASSY.

HOSE - control valve to bucket cylinder, 68" (1727 mm) long

2шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

3шт.

10

D56512

CLAMP - hose to swing tower

1шт.

11

D75695

CLAMP

- hose

1шт.

On some machines, D75695 clamp welds to the swing tower. For other machines where this clamp bolts at the ends, see Figure 324 for attaching hardware.

1шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

3шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

4шт.

15

195-25

WASHER,3/8"

- flat, , if used 3/8"

4шт.

15

95-8

WASHER,1/2"

flat, if used 1/2"

4шт.

16

D79671

LARGE PLATE

PLATE - hose clamp

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

L46321

CLAMP

- hose, at boom side

2шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

R15257

CLAMP

- hose

4шт.

22

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

L26312

CLAMP

- tube

1шт.

26

D56498

TUBE

- bucket cylinder, rod end, RH as viewed from seat looking toward rear of machine

1шт.

27

D56500

TUBE - bucket cylinder, closed end, LH as viewed from seat looking toward rear of machine

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

L41520

CLAMP -, Serial Range: tube-boom

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

32

D55880

CLAMP

- tube to boom ear

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

35

D56502

HOSE - valve to bucket cylinder, 80" (2032 mm) long

2шт.

36

D56505

TUBE

- bucket cylinder, closed end

1шт.

37

D56503

TUBE

- bucket cylinder, rod end

1шт.

38

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 39

2шт.

39

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

40

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - tube to cylinder

1шт.

41

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, parts list Figures 442 and 444

1шт.
