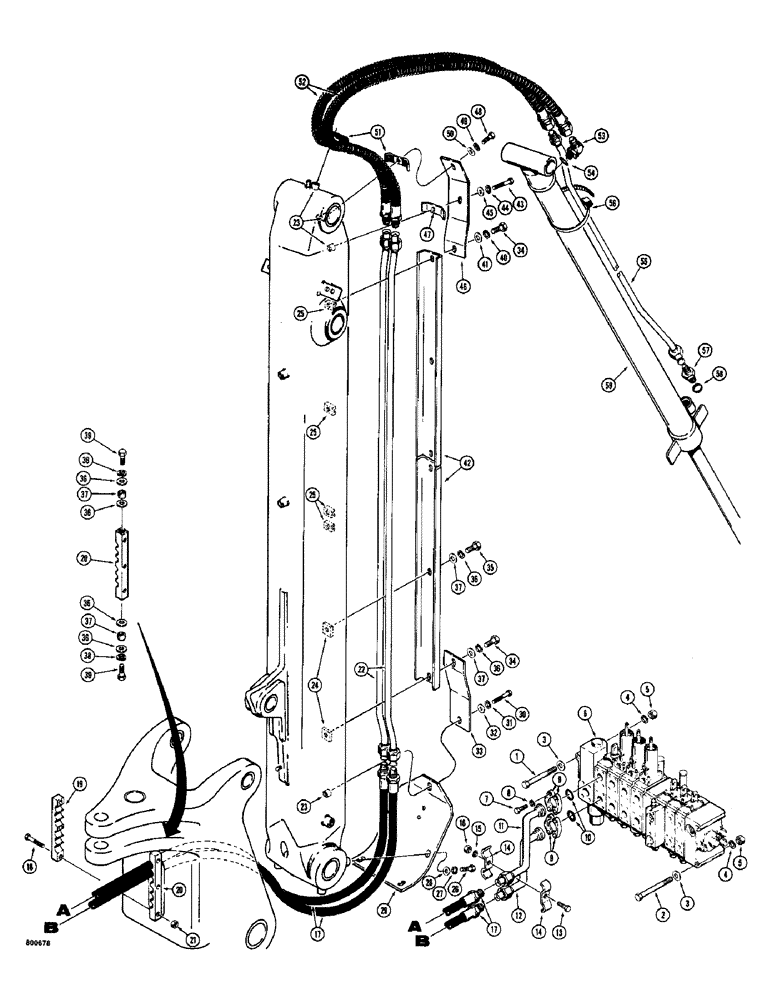

Запчасти Case 780 (324) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

2

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

2шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

D56561

VALVE - control, backhoe, 7 spool, parts list Figure 362

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

A12306

FLANGE

- split

4шт.

10

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- tube seal

2шт.

11

D56514

TUBE - upper port of backhoe control valve to dipper extension cylinder, closed end

1шт.

12

D56516

TUBE - lower port of backhoe control valve to dipper extension cylinder, rod end

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

14

R15257

CLAMP

- tube

4шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

D56492

HOSE ASSY.

HOSE - valve to dipper extension cylinder, 61" (1549 mm) long

2шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

3шт.

19

D56512

CLAMP - hose to swing tower

1шт.

20

D75695

CLAMP

- hose, welded or bolted on

1шт.

21

131-6

LOCK NUT,3/8"-16, GC

CLAMP - hex, self lock, 3/8" - 16 NC

3шт.

22

D56493

TUBE

- valve to dipper extension cylinder

2шт.

23

D33265

NUT

BLOCK - tapped, Serial Range: welded-boom

4шт.

24

D40252

BLOCK - tapped, Serial Range: welded-boom

2шт.

25

D52843

BLOCK

- tapped, Serial Range: welded-boom

4шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

27

92-8

LOCK WASHER,1/2"

if used 1/2"

4шт.

28

195-25

WASHER,3/8"

- flat, , if used 3/8"

4шт.

28

95-8

WASHER,1/2"

flat, if used 1/2"

4шт.

29

D79671

LARGE PLATE

PLATE - hose clamp, lower

1шт.

30

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

33

D56508

GUARD - tube, lower

1шт.

34

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

36

195-33

WASHER,1/2"

- flat, , if used 1/2"

4шт.

37

D79648

SPACER

- pivot, if used

2шт.

38

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

6шт.

41

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

42

D56509

GUARD

- tube, upper

2шт.

43

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

46

D56510

GUARD - tube, upper

1шт.

47

D56511

CLAMP

- hose, special

1шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

49

92-6

LOCK WASHER,3/8"

2шт.

50

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

51

R15257

CLAMP

- hose, upper

2шт.

52

D56495

HOSE ASSY.

HOSE - valve to dipper extension cylinder, 57" (1448 mm) long

2шт.

53

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 54 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

54

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

55

D56496

TUBE - extension cylinder, rod end

1шт.

56

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

57

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 58

1шт.

58

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

59

REF

INSTRUCTION

CYLINDER - dipper extension, parts list Figures 446 - 450

1шт.
