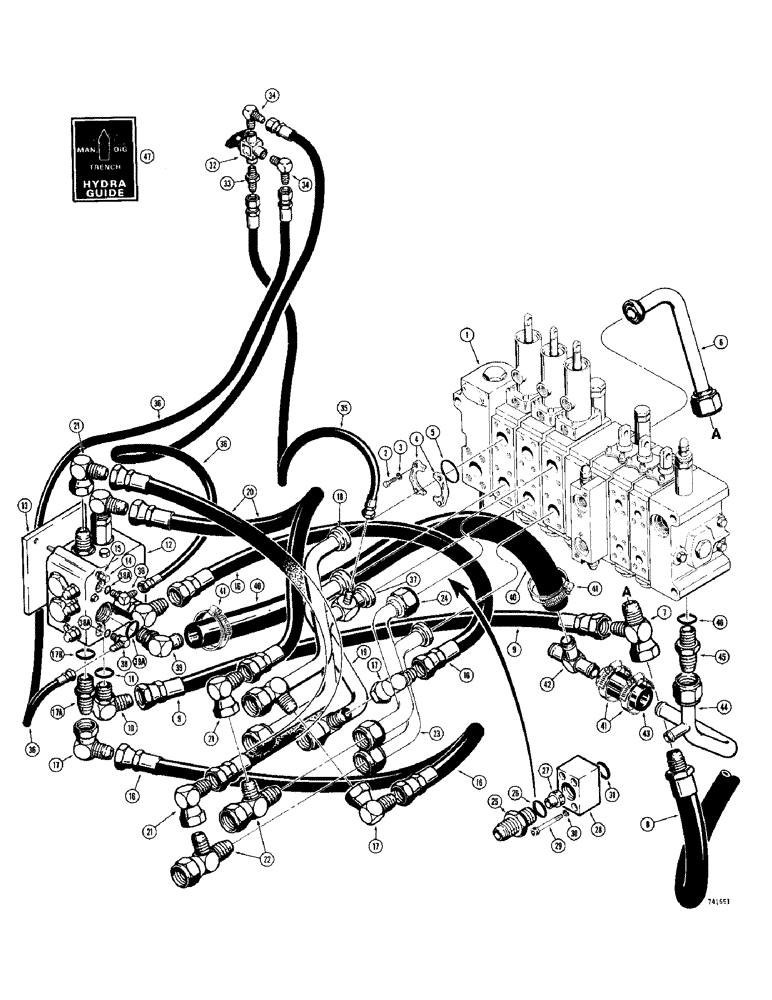

Запчасти Case 780 (320) - BACKHOE HYDRA-GUIDE CIRCUIT, USED ON MODELS WITH SINGLE BACKHOE CONTROLTOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, backhoe, parts list Figures 358-362

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

20шт.

3

92-6

LOCK WASHER,3/8"

20шт.

4

A12306

FLANGE

- split

10шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- flange

5шт.

6

D56200

TUBE

- backhoe pressure, at backhoe valve

1шт.

7

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

8

D55586

HOSE

- backhoe pressure, intermediate, 24" (610 mm) long

1шт.

9

D48432

HOSE

- hydra-guide pressure, 27-1/2" (699 mm) long

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 11 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

12

D55795

VALVE - hydra-guide control, parts list Figure 386

1шт.

13

D55796

PLATE - mounting

1шт.

14

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8" - 16 NC x 4-1/2"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

D48432

HOSE

- no. 2 port and no. 5 port of control valve to bucket sections of backhoe valve, 27-1/2" (699 mm) long

2шт.

17

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3шт.

17a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector

1шт.

18

D55780

TUBE - bucket section, upper port

1шт.

19

D55777

TUBE - bucket section, lower port

1шт.

20

D55773

HOSE

- boom section, 20-1/2" (521 mm) long

2шт.

21

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3шт.

22

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

23

D55610

TUBE

- backhoe valve boom section, lower port

1шт.

24

D55612

TUBE - backhoe valve boom section, upper port

1шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 26

1шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

27

L47556

CHECK VALVE

RESTRICTOR - check

1шт.

28

L46421

HOUSING - restrictor

1шт.

29

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex, socket head, 3/8" - 16 NC x 1-3/4"

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

32

D55981

LOCK VALVE

VALVE - selector, hydra-guide, includes D57384 handle

1шт.

33

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - male, straight, 1/4" x 1/4"

1шт.

34

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degrees

2шт.

35

D54100

FLEXIBLE HOSE

HOSE - selector valve #1 port to B port dipper tube, 23" (584 mm) long

1шт.

36

D52711

HOSE

- selector valve #2 and #3 port to #3 and #4 port of hydra-guide valve

2шт.

37

D55782

TUBE

- B port of dipper section

1шт.

38

228-5103

FITTING - 90 degrees, adjustable, Includes: Ref. 38A

2шт.

38a

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Fitting

1шт.

39

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

- 90 degrees, adjustable with hose stem

1шт.

40

D95232

LARGE HOSE

HOSE - return, 24" (610 mm) long

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

42

D55776

TEE

FITTING - three-way, swivel, hydra-guide return

1шт.

43

R12351

LARGE HOSE

HOSE - return line, tee to return tube

1шт.

44

D56933

TUBE - return, at backhoe valve

1шт.

45

D53574

FITTING - male, straight connector, Includes: Ref. 46

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

47

321-2057

DECAL

- selector valve

1шт.
