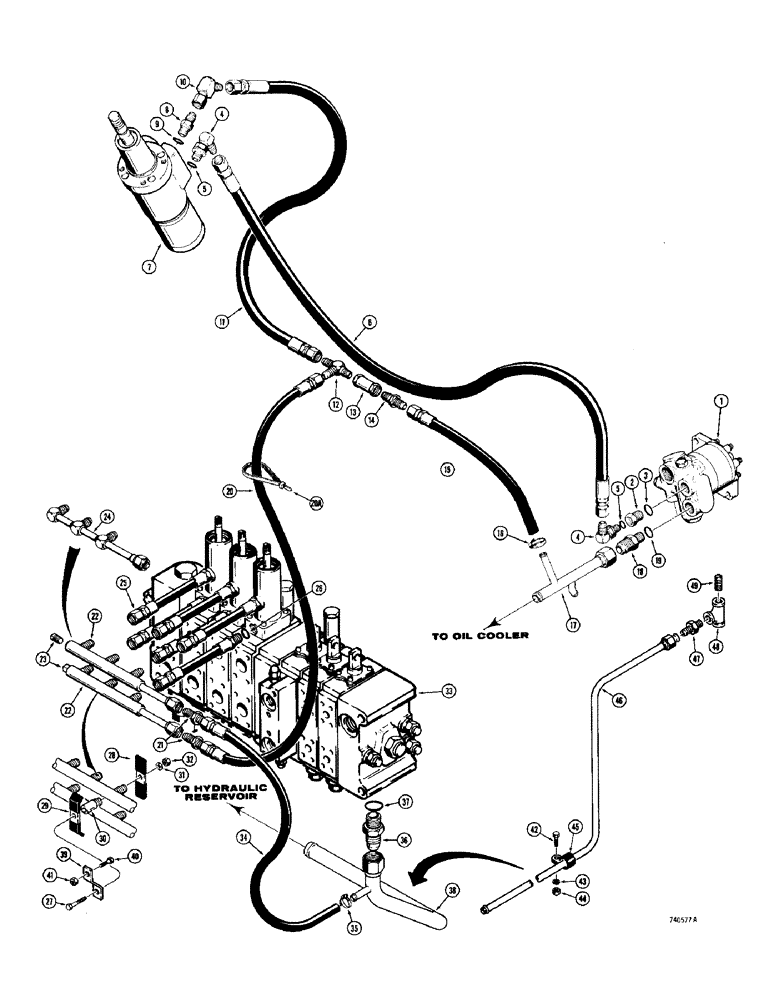

Запчасти Case 780 (312) - BACKHOE HYDRAULIC ASSIST CIRCUIT (08) - HYDRAULICS

1

L18975

PUMP, HYDRAULIC

PUMP - power steering, parts list Figure 152

1шт.

2

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

FITTING - female, straight adapter, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 5 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

6

L19296

HOSE

- power steering pump to manual steering pump, pressure line, 43" (1092 mm) long

1шт.

7

L17162

PUMP

VALVE - steering, parts list Figure 154, used before tractor SN. 5502126

1шт.

7

D81605

PUMP

VALVE - steering, parts list Figure 156, used on tractor SN. 5502126 and after

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Male, Straight, Incl. Ref 9 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

10

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

FITTING - swivel, 45 degrees

1шт.

11

L48220

HOSE - pressure, hydraulic assist, 51" (1294 mm) long

1шт.

12

218-615

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Run

HOSE - male tee ( replaced 218-555 )

1шт.

13

L48717

VALVE

- check

1шт.

L48717 check valve is set to crack open at 130 +/_ 13psi

1шт.

14

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - straight, male connector

1шт.

15

L48221

HOSE - return, check valve to cooler return tube, 8" (203 mm) long

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

17

L19292

TUBE - return, cooler, see Figure 146 and 148 for related cooler parts

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight connector, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

20

L48222

HOSE

- pressure, tee to hydraulic assist manifold, 72" (1829 mm) long

1шт.

20a

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Hose

1шт.

21

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

FITTING - male, straight adapter

2шт.

22

L47843

PIN

MANIFOLD - hydraulic assist, pressure and return hoses, before tractor SN. 5500285, order D54344

2шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

2шт.

24

D54344

TUBE ASSY.

MANIFOLD - hydraulic assist, pressure and return hoses, tractor SN. 5500285 and after, when stock is exhausted, order D60795 manifold and D60794 hoses

2шт.

24

D60795

MANIFOLD - hydraulic assist, pressure and return hoses, tractor SN. 5500285 and after

2шт.

25

L48898

HOSE - hydraulic assist, pressure and return, 6" (152 mm) long, used with D54344 manifold only, Includes: Ref. 26

6шт.

25

D88555

HOSE

- hydraulic assist, pressure and return, 6" (152 mm) long, used with D60795 manifod only, Includes: Ref. 26

6шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hose

1шт.

27

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

D33316

CLAMP

- manifold tube

1-2шт.

29

D54416

CLAMP

- manifold tube, used with D54344 and D60795 manifolds only

1шт.

30

D38524

SPACER

- tube clamp

1шт.

31

195-21

WASHER,5/16"

flat, 5/16"

1шт.

32

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

33

D54704

VALVE, backhoe control with hydraulic assist, parts list Figure 360

1шт.

34

L48223

HOSE - return, manifold to backhoe return tube, 20" (508 mm)

1шт.

35

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

36

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., tube, straight, Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

38

L48224

TUBE - return, backhoe control valve, see Figure 274 for related return tubes and reservoir

1шт.

39

D88130

STRAP - manifold tube, used with D60795 manifold only

1шт.

40

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with power assist plumbing Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

43

92-5

LOCK WASHER,5/16"

used with power assist plumbing 5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, used with power assist plumbing

1шт.

45

49838

CLAMP

- used with power assist plumbing

2шт.

46

D90209

TUBE - used with power assist plumbing

1шт.

47

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - straight, used with power assist plumbing

1шт.

48

221-424

TEE,1/2" NPT

- used with power assist plumbing

1шт.

49

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - used with power assist plumbing

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
