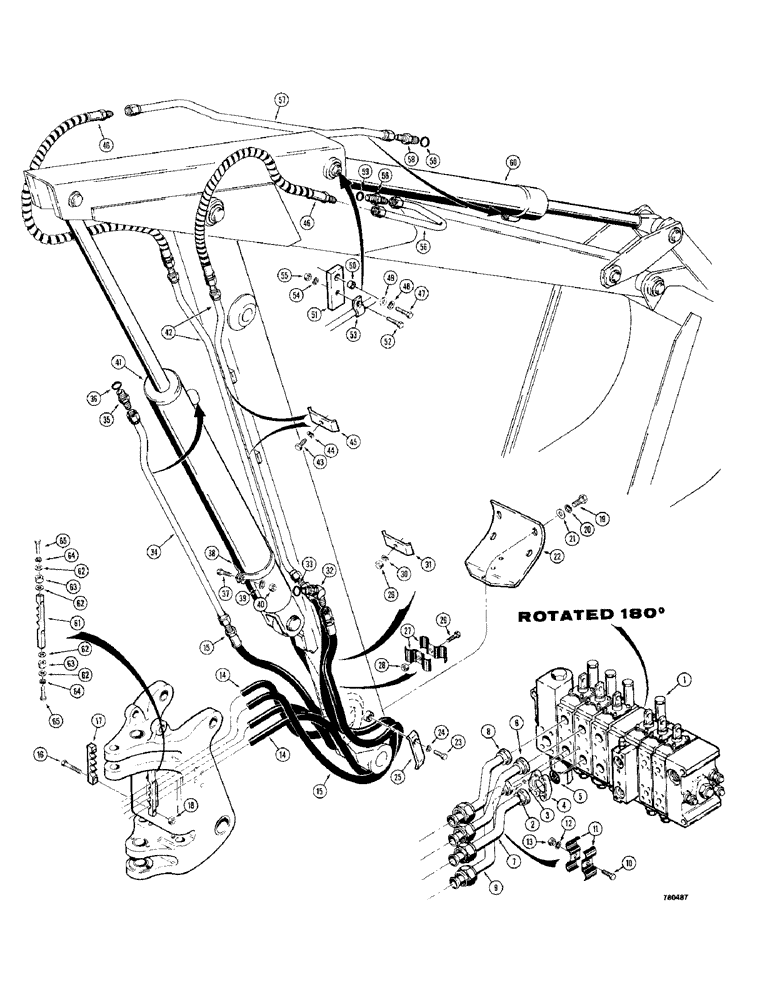

Запчасти Case 780 (308) - BACKHOE DIPPER AND BUCKET HYDRAULIC CIRCUITS, TRACTOR SN. 5500550 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, backhoe, see Figures 358 and 360 for proper valve

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

3

92-6

LOCK WASHER,3/8"

16шт.

4

A12306

FLANGE

- split

8шт.

5

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- hose

4шт.

6

D55608

TUBE - backhoe valve dipper section, upper port

1шт.

7

D55606

TUBE - backhoe valve dipper section, lower port

1шт.

8

D55604

TUBE - backhoe valve bucket section, upper port

1шт.

9

D55602

TUBE - bakchoe valve bucket section, lower port

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

3шт.

11

R15257

CLAMP

- tube

6шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

14

D55599

HOSE ASSY.

HOSE - control valve to bucket cylinder, 68" (1727 mm) long

2шт.

15

D55601

HOSE

- control valve to dipper cylinder, 84" (2134 mm) long

2шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

2шт.

17

L46326

CLAMP

- bucket and dipper cylinder hose

1шт.

18

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2" - 18 NC x 1-1/4", if used

5шт.

20

92-6

LOCK WASHER,3/8"

if used 3/8"

5шт.

20

92-8

LOCK WASHER,1/2"

if used 1/2"

5шт.

21

95-6

WASHER,3/8"

- flat, , if used 3/8"

5шт.

21

95-8

WASHER,1/2"

flat, if used 1/2"

5шт.

22

D76519

LARGE PLATE

GUARD - hose, lower

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

L46321

CLAMP

- hose, at boom side

2шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

27

R15257

CLAMP

- hose

4шт.

28

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

L26312

CLAMP

- tube

1шт.

32

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - adjustable, 45 degrees, Includes: Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

34

D55704

TUBE - dipper cylinder, rod end

1шт.

35

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

38

L46611

CLAMP

-, Serial Range: tube-cylinder

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

41

REF

INSTRUCTION

CYLINDER - dipper, parts list Figures 436 or 438

1шт.

42

D55595

TUBE

- valve to bucket cylinder

2шт.

Incorrect. Ref. 42 actually has 2 female ends and Ref. 46 actually has 2 male ends.

1шт.

Ref. 42 and 46 - Artwork in illustration is

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

L41520

CLAMP - bucket tube

2шт.

46

D55594

HOSE

- bucket cylinder, 35" (889 mm) long

2шт.

47

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

48

92-8

LOCK WASHER,1/2"

2шт.

49

95-8

WASHER,1/2"

flat 1/2"

2шт.

50

A28893

BUSHING

SPACER - clamp bar

2шт.

51

D56146

BAR - clamp

2шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

53

D55880

CLAMP

-, Serial Range: tube-bar

2шт.

54

92-6

LOCK WASHER,3/8"

2шт.

55

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

56

D56190

TUBE

- bucket cylinder, closed end

1шт.

57

D56192

TUBE

- bucket cylinder, rod end

1шт.

58

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 59

2шт.

59

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

60

REF

INSTRUCTION

CYLINDER - bucket see Figures 442 and 444 for proper cylinder

1шт.

61

D75058

CLAMP

- hose, welds or bolts to swing tower

1шт.

62

195-33

WASHER,1/2"

- flat, , if used 1/2"

4шт.

63

D79648

SPACER

- pivot, if used

2шт.

64

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

65

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

Incorrect. Ref. 42 actually has 2 female ends and Ref. 46 actually has 2 male ends.

1шт.

Ref. 42 and 46 - Artwork in illustration is

1шт.
