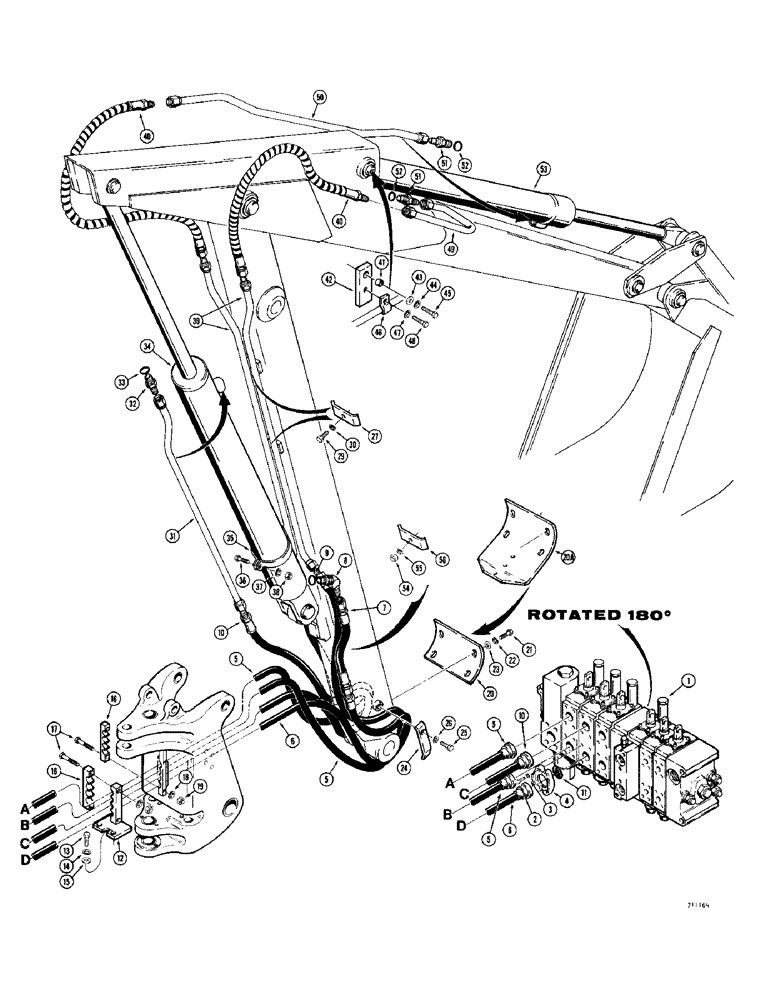

Запчасти Case 780 (304) - BACKHOE DIPPER AND BUCKET HYDRAULIC CIRCUITS, BEFORE TRACTOR SN 5500550 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, backhoe, see Figures 358 and 362 for proper valve

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

3

92-6

LOCK WASHER,3/8"

16шт.

4

A12306

FLANGE

- split, 1"

8шт.

5

L46402

HOSE ASSY.

HOSE - bucket, 85" (2159 mm) long

2шт.

6

L46404

HOSE ASSY.

HOSE - dipper, closed end, 86" (2184 mm) long

1шт.

7

L48269

HOSE

- dipper, closed end, 18-1/2" (267 mm) long

1шт.

8

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - adjustable, 45 degrees, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

10

L46403

HOSE - dipper, upper, 106" (2692 mm) long

1шт.

11

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- L46402, L46403 and L46404 hoses

4шт.

12

L47365

SUPPORT AND CLAMP ASSEMBLY - hose, if used

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

15

95-8

WASHER,1/2"

flat, if used 1/2"

2шт.

16

L46326

CLAMP

- hose

2шт.

17

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

20

L46358

LARGE PLATE

GUARD - hose, when stock is exhausted, order D76519 guard for service

1шт.

20a

D76519

LARGE PLATE

GUARD - hose

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4-5шт.

22

92-6

LOCK WASHER,3/8"

4-5шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

4-5шт.

24

L46321

CLAMP

- hose

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

L41520

CLAMP -, Serial Range: tubes-boom

2шт.

28

RESERVED

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

L46394

TUBE

- dipper cylinder, rod end

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male, Incl. Ref. 33

1шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

34

REF

INSTRUCTION

CYLINDER - dipper, parts list Figures 436 or 438

1шт.

35

L46611

CLAMP

- tube to dipper cylinder

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

39

L46329

TUBE

- to bucket cylinders

2шт.

40

L40438

HOSE - to bucket cylinders, 39" (991 mm) long

2шт.

41

L47476

SPACER - bar

2шт.

42

L45417

BAR - clamp

2шт.

43

95-8

WASHER,1/2"

flat 1/2"

2шт.

44

92-8

LOCK WASHER,1/2"

2шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

46

A12308

CLAMP

-, Serial Range: tube-bar

2шт.

47

92-6

LOCK WASHER,3/8"

2шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

49

L47162

TUBE

- bucket cylinder, closed end

1шт.

50

L42947

TUBE - bucket cylinder, rod end

1шт.

51

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male connector, Incl. Ref. 52

2шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

53

REF

INSTRUCTION

CYLINDER - bucket, see Figure 440 for proper cylinder

1шт.

54

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

55

92-6

LOCK WASHER,3/8"

1шт.

56

L26312

CLAMP

-, Serial Range: hose-dipper

1шт.
