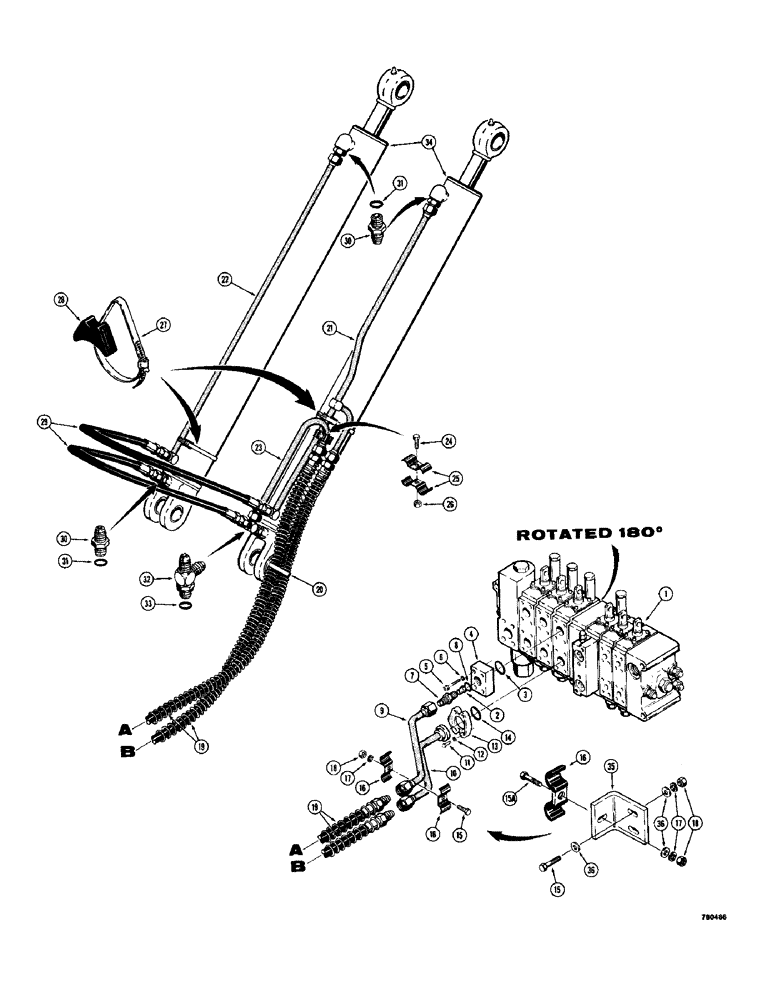

Запчасти Case 780 (302) - BACKHOE BOOM HYDRAULIC CIRCUIT, TRACTOR SN. 5500550 AND AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, backhoe, see Figures 358 - 362 for proper valve

1шт.

2

L47556

CHECK VALVE

RESTRICTOR - check

1шт.

3

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- housing

1шт.

4

L46421

HOUSING - restrictor

1шт.

5

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex, socket head, 3/8" - 16 NC x 1-3/4"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

9

D55612

TUBE - upper port backhoe valve, boom section

1шт.

10

D55610

TUBE

- lower port backhoe valve, boom section

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A12306

FLANGE

- split

2шт.

14

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- flange

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1-2шт.

15a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", If used

1шт.

16

R15257

CLAMP

- tube

1-2шт.

17

92-6

LOCK WASHER,3/8"

1-3шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1-3шт.

19

L46547

HOSE

- control valve to boom cylinders, 58" (1473 mm) long

2шт.

20

L46325

BRACKET - hose support

1шт.

21

D55639

TUBE

- control valve to R.H. boom cylinder, rod end

1шт.

22

D55614

TUBE

- control valve to L.H. boom cylinder, rod end

1шт.

23

D55616

TUBE

- control valve to boom cylinders, closed end

1шт.

24

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25

R15257

CLAMP

- tube

2шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

1шт.

27

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube

2шт.

28

D46440

SADDLE

SPACER - tube clamp

2шт.

29

D55597

HOSE

- crossover, boom cylinders, 43-1/2" (1105 mm) long

2шт.

30

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 31

3шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

32

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, adjustable, Includes: Ref. 33

1шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

34

REF

INSTRUCTION

CYLINDER - boom, R.H. and L.H. parts list Figures 428 - 434

2шт.

35

D75729

BRACKET - tube clamp, if used

1шт.

36

195-25

WASHER,3/8"

- flat, , if used 3/8"

5шт.
