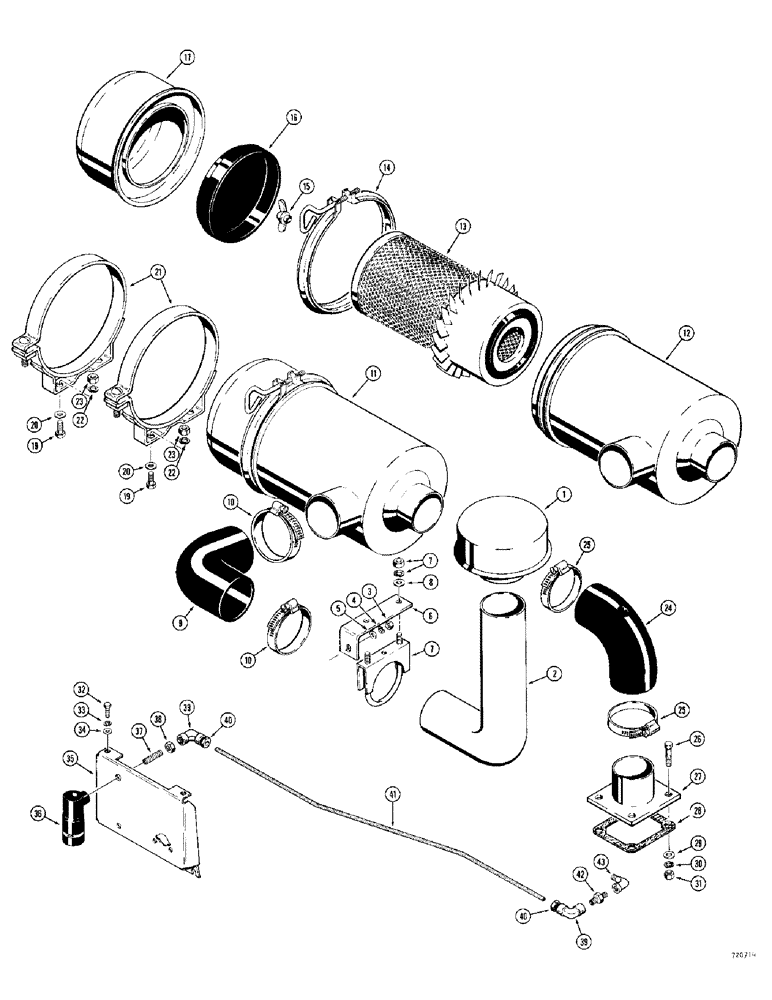

Запчасти Case 780 (016) - AIR CLEANER AND CONNECTIONS, BEFORE TRACTOR SN. 5500550 (02) - ENGINE

1

A61277

CAP

- air cleaner

1шт.

Ref. 1 on Figure 241 (D53472 intake connector) fits in hole on this part.

1шт.

2

L43443

PIPE - extension, air cleaner

1шт.

3

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

6

L43444

BRACKET - mounting, pipe

1шт.

7

L73711

CLAMP

-, Serial Range: pipe-bracket

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

9

D36262

LARGE HOSE

HOSE - intake to air cleaner

1шт.

10

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

11

D36261

CLEANER

AIR CLEANER - dry type, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

13

A40866

AIR FILTER

ELEMENT - air cleaner

1шт.

14

R15731

CLAMP

- air cleaner

1шт.

15

D78354

WING NUT

NUT AND WASHER - element

1шт.

wingnut (includes D37976 gasket).

1шт.

D78354 element nut - This is a steel

1шт.

16

D37979

BAFFLE

- air cleaner

1шт.

17

A40951

CUP

- air cleaner

1шт.

18

D37974

DECAL

- service instructions, not illustrated

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

21

70973

BRACKET

CLAMP - air cleaner mounting

2шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

24

L40644

INTAKE AIR HOSE,3.00" ID, SAE 10R4

- Air Cleaner to Manifold 3.00" ID, SAE 10R4

1шт.

L40644 air cleaner to manifold hose -

1шт.

25

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

26

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

27

L18831

FLANGE -, Serial Range: hose-manifold

1шт.

28

A58910

GASKET

- flange

1шт.

29

95-7

WASHER,7/16"

- flat, 7/16"

4шт.

30

92-7

LOCK WASHER,7/16"

4шт.

31

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

4шт.

32

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

35

L47233

PANEL - instrument, auxiliary

1шт.

36

A17652

ELECTRICAL GAUGE

GAUGE - air cleaner restriction

1шт.

37

L13267

NIPPLE -, Serial Range: gauge-coupling

1шт.

38

L13268

LOCK NUT

- jam, nipple retaining

1шт.

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

FITTING - 90 degree, tube fitting, Includes: Ref. 39 and 40

2шт.

39

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

40

222-500

TUBE NUT,5/16" - 24 NPT

NUT - fitting

1шт.

222-500 nut on each end. For service on tubing portion, cut to length from S118583X (25' roll nylon tubing sold by ft.)

1шт.

41

L11335

TUBE,60" L

- indicator to manifold, order F12417 for service, cut to 48" (1219 mm)

1шт.

L11335 tube - This is a 60" tube with a

1шт.

42

D36264

FITTING

CONNECTOR - special, filter type

1шт.

43

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.
