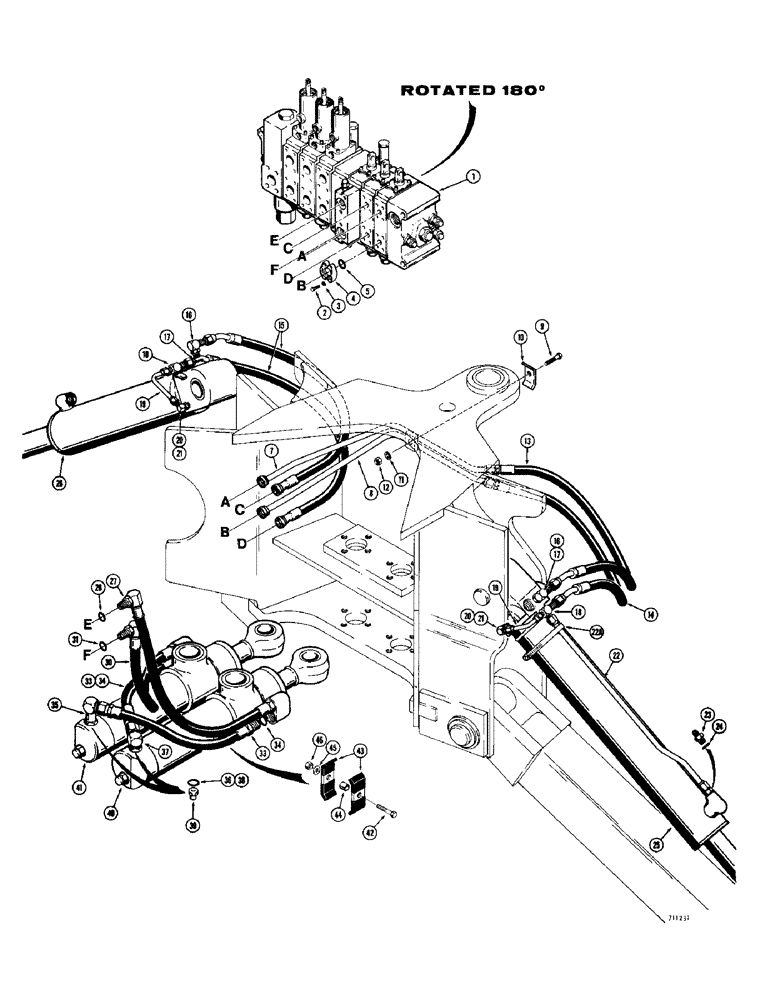

Запчасти Case 780 (294) - BACKHOE SWING & STABILIZER HYD. CIRCUITS, B4 TRAC SN 5500550 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - backhoe control, see Figures 358 - 362 for proper valve

1шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Stabilizer cyl circuit Hex, 5/16"-18 x 1", G5, Full Thd

16шт.

3

92-5

LOCK WASHER,5/16"

stabilizer cyl circuit 5/16"

16шт.

4

L18894

FLANGE - split, 1/2", stabilizer cyl circuit

8шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

tube and hose, stabilizer cyl circuit

4шт.

6

RESERVED

1шт.

7

L46366

to right-hand cylinder, closed end at valve, stabilizer circuit

1шт.

8

L46368

TUBE - to right-hand cylinder, rod end, at valve, stabilizer circuit

1шт.

9

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Stabilizer cyl circuit Hex, 1/4"-20 x 1 1/4", G5

1шт.

10

L22018

CLAMP

tube, stabilizer cyl circuit

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stabilizer cyl circuit 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

Stabilizer cyl circuit 1/4"-20, G5

1шт.

13

L46584

HOSE

to right-hand , closed end, 30" (762 mm) long, stabilizer cyl circuit

1шт.

14

L46583

HOSE

to right-hand, rod end, 36" (914 mm) long, stabilizer cyl circuit

1шт.

15

NLS

NO LONGER SERVICED

HOSE - to left-hand , 43" (1092 mm) long, stabilizer cyl circuit

2шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree, stabilizer cyl circuit, Includes: Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

fitting, stabilizer cyl circuit

1шт.

18

218-602

TEE,37 Degree, 3/4"-16 x 9/16"-18, Run

male, tee, stabilizer cyl circuit

2шт.

19

L47199

TUBE,0.375" OD x 3.3, 1.9" L

to load check valve, stabilizer cyl circuit

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable, 90 degree, stabilizer cyl circuit, Includes: Ref. 21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

fitting, stabilizer cyl circuit

1шт.

22

L46389

TUBE ASSY.

to stabilizer cylinder, rod end, circuit

2шт.

22a

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

tube, stabilizer cyl circuit

2шт.

23

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, male, straight, stabilizer cyl circuit, Incl. Ref 24 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

fitting, stabilizer cyl circuit

1шт.

25

REF

INSTRUCTION

CYLINDER - stabilizer, right-hand, parts list Figures 416 or 418

1шт.

26

REF

INSTRUCTION

CYLINDER - stabilizer, left-hand, parts list Figures 416 or 418, swing cyl circuit

1шт.

27

D54456

HOSE

to right-hand , upper port, 32-1/2" (826 mm) long swing cyl circuit, Includes: Ref. 28 and 29

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, at valve swing cyl circuit

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

small, at , not shown swing cyl circuit

1шт.

30

D54457

HOSE ASSY.

to left-hand, 26" (660 mm) long swing cyl circuit, Includes: Ref. 31 and 32

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, at valve swing cyl circuit

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

small, at cylinder, not shown swing cyl circuit

1шт.

33

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

crossover, lower ports 23-1/2" (1092 mm) long swing cyl circuit, Includes: Ref. 34

2шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hose swing cyl circuit

1шт.

35

D36934

FITTING

adjustable, 90 degrees, high swing cyl circuit, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

fitting swing cyl circuit

1шт.

37

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degrees, short swing cyl circuit, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

fitting swing cyl circuit

1шт.

39

D41462

FITTING

RESTRICTOR - flow control swing cyl circuit

2шт.

40

REF

INSTRUCTION

R.H., parts list Figures 420 - 426 swing cyl circuit

1шт.

41

REF

INSTRUCTION

L.H., parts list Figures 420 - 426 swing cyl circuit

1шт.

D16549

KIT

- clamp, cylinder hose, before tractor SN. 5500306 swing cyl circuit

1шт.

42

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Swing cyl circuit Hex, 5/16"-18 x 2", G5

2шт.

43

D33316

CLAMP

hose swing cyl circuit

4шт.

44

D33554

BUSHING

SPACER - clamp swing cyl circuit

2шт.

45

195-21

WASHER,5/16"

flat, , Swing cyl circuit 5/16"

2шт.

46

131-4

LOCK NUT,5/16"-18, GB

hex, lock, 5/16" - 18 NC

2шт.
