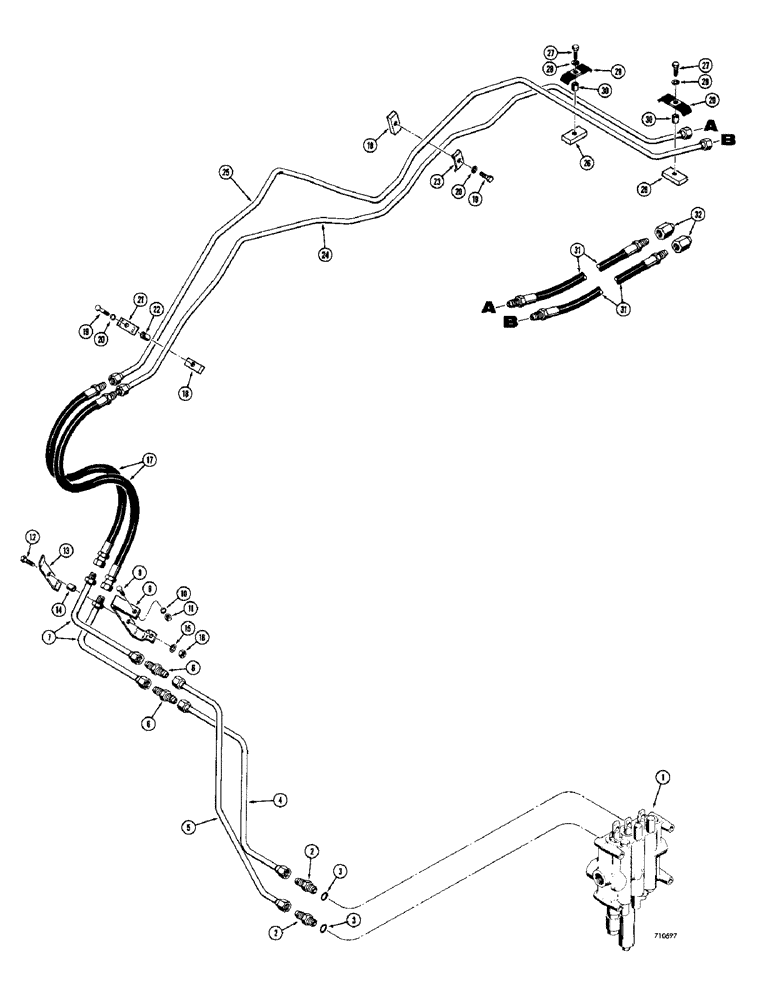

Запчасти Case 780 (292) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, 3 spool, see Figures 332 and 342 for proper valve

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

4

L44159

TUBE - upper valve port to clam cylinder, at valve

1шт.

5

L44158

TUBE - lower valve port to clam cylinder, at valve

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FITTING - tube connector

2шт.

7

L45879

TUBE - valve to clam cylinder, intermediate

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

L44157

BRACKET - clamp mounting

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

13

L44248

CLAMP - tube

1шт.

14

D33552

BUSHING

SPACER - tube clamp

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

17

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- valve to clam cylinder, rear, 40" (1016 mm) long

2шт.

18

D42563

COVER PLATE

BLOCK - tapped, welded to lift arm

2шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A14078

CLAMP

- tube, valve end

1шт.

22

D33552

BUSHING

SPACER - clamp

1шт.

23

L15301

CLAMP

- tube, bucket end

1шт.

24

L44160

TUBE

- valve to clam cylinder, front, closed end

1шт.

25

L44161

TUBE

- valve to clam cylinder, front, rod end

1шт.

26

D39203

PLATE

BLOCK - tapped, welded to cross member

2шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

D33316

CLAMP

- tube

2шт.

30

D33552

BUSHING

SPACER - tube clamp

2шт.

31

L48931

HOSE

- tube to clam cylinder, 35" (889 mm) long

2шт.

32

218-756

CAP,37 Degree, 7/8"-14

Hose end, used when clam bucket is removed 37º, 7/8"-14

2шт.
