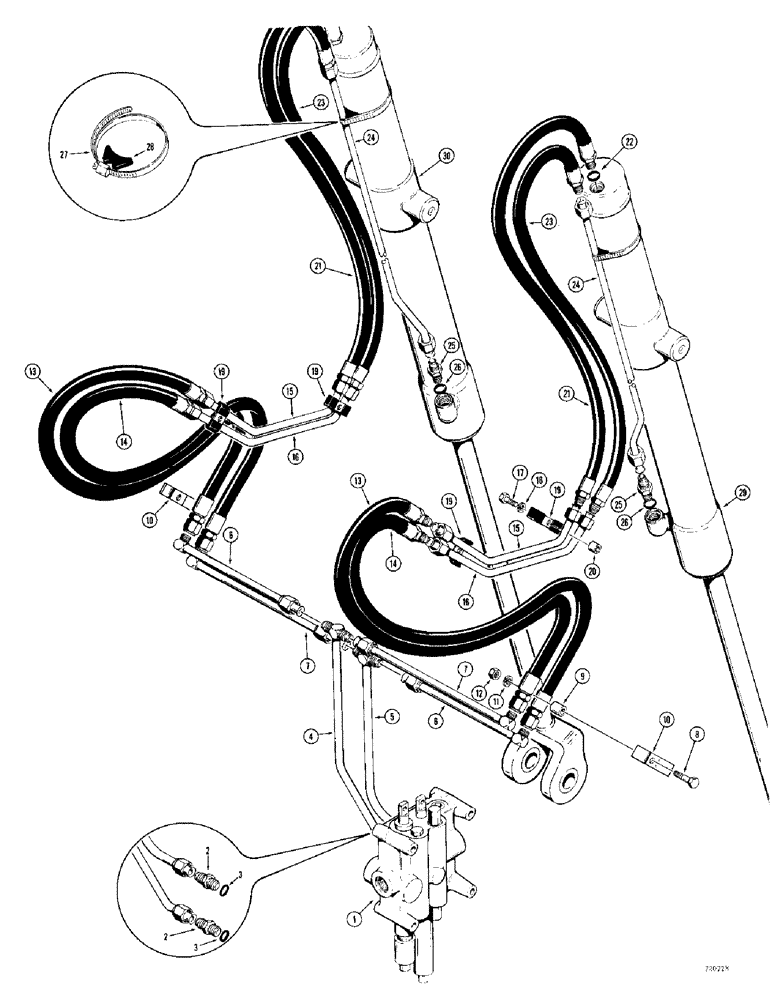

Запчасти Case 780 (290) - LOADER BUCKET TILT HYDRAULIC CIRCUIT, TRACTOR SN. 5500550 & AFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 332 - 342 for proper valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

4

L18918

TUBE - valve to cylinder, closed end 1" OD x 14.7, 5.9" L

1шт.

5

L18920

TUBE - valve to cylinders, rod end 1" OD x 20.9, 9.85" L

1шт.

6

D56046

TUBE - valve to cylinders, short

2шт.

7

D56198

TUBE

- valve to cylinders, long

2шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

9

D33551

BUSHING

SPACER - tube

2шт.

10

L26312

CLAMP

- tube

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

L18775

HOSE

ASSY, To Cylinders, 41"

2шт.

14

L18774

HOSE,0.50" ID x 36.00", SAE 100R2 A

ASSY, 0.50" ID x 36.00", SAE 100R2A, To Cylinders

2шт.

15

L18903

TUBE - upper

2шт.

16

L18905

TUBE - lower

2шт.

17

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2"

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

D33316

CLAMP

- tube

4шт.

20

D76212

BUSHING

SPACER - tube

4шт.

21

D39801

HOSE

- to cylinder, closed end, 33-1/2" (851 mm) long, Includes: Ref. 22

2шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Ref. 22 218-5006 oring if too small may use 237-6012 per dlr.

1шт.

23

D39802

TUBE

HOSE - to cylinder, rod end, 32-1/2" (826 mm) long

2шт.

24

D39813

TUBE

- to cylinder, rod end

2шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - tube, straight, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

28

D38648

BLOCK

SPACER - rubber, Serial Range: tube-cylinder

2шт.

29

REF

INSTRUCTION

CYLINDER - bucket tilt, right-hand, parts list Figures 394 - 400

1шт.

30

REF

INSTRUCTION

CYLINDER - bucket tilt, left-hand, parts list Figures 394 - 400

1шт.
