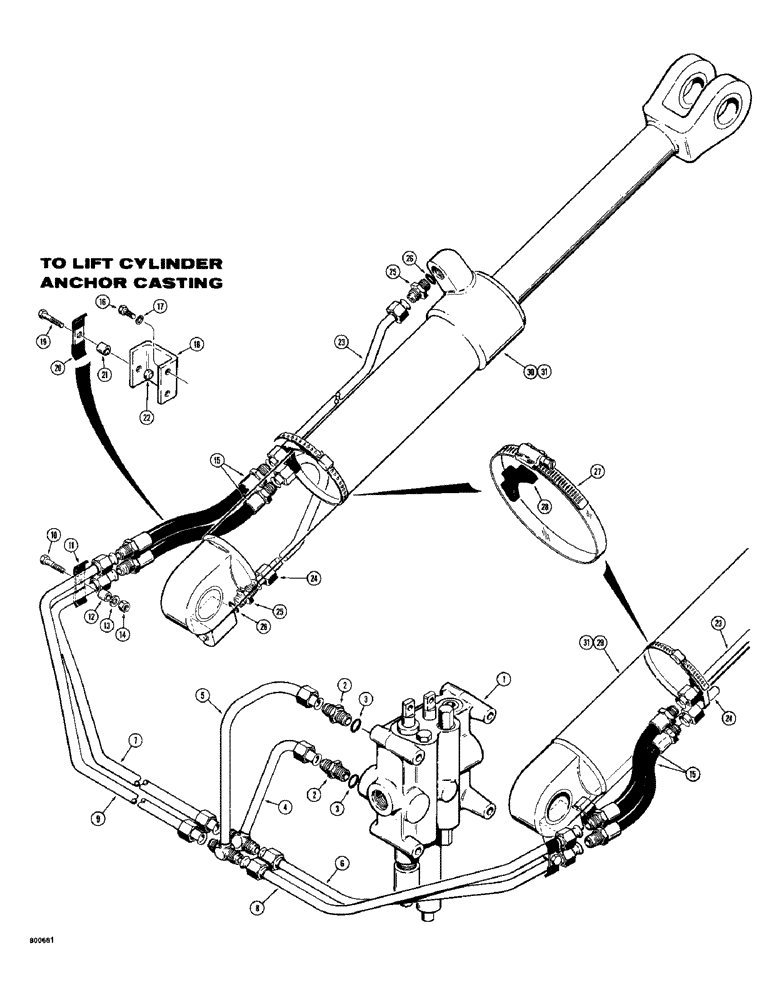

Запчасти Case 780 (286) - LOADER LIFT HYDRAULIC CIRCUIT, TRACTOR SN. 5500550 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 332 - 342 for proper valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

4

L18998

TUBE - valve to lift cylinder, lower 1" OD x 9.2, 3.9" L

1шт.

5

L18996

TUBE - valve to lift cylinder, upper 1" OD x 9.12, 3.9" L

1шт.

6

D56111

TUBE - valve to closed end lift cylinder, right-hand

1шт.

7

D56117

TUBE - valve to closed end lift cylinder, left-hand

1шт.

8

D56113

TUBE - valve to rod end lift cylinder, right-hand

1шт.

9

D56115

TUBE - valve to rod end lift cylinder, left-hand

1шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16" - 18 NC x 1-3/4"

2шт.

11

D33316

CLAMP

- tube

2шт.

12

D76212

BUSHING

SPACER - tube

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

15

D24349

HOSE ASSY.

HOSE - lift cylinders, 23" (584 mm) long

4шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

D56123

BRACKET - tube clamp

2шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

20

D40236

CLAMP

- tube

2шт.

21

D34089

SPACER

- tube

2шт.

22

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

2шт.

23

D39784

TUBE

- lift cylinders, rod end, used before tractor SN. 5502461

2шт.

23

D80829

TUBE - lift cylinders, rod end, used on tractor SN. 5502461 and after

1шт.

24

D39786

TUBE

- lift cylinder, closed end, used before tractor SN. 5502461

2шт.

24

D80831

TUBE - lift cylinder, closed end, used on tractor SN. 5502461 and after

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - tube, straight, Incl. Ref. 26

4шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

27

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube

2шт.

28

R24703

SUPPORT

SPACER - rubber, Serial Range: tube-cylinder

2шт.

29

REF

INSTRUCTION

CYLINDER - lift, right-hand, parts list Figure 402 or 404, used before tractor SN. 5502461

1шт.

30

REF

INSTRUCTION

CYLINDER - lift, left-hand, parts list Figure 402 or 404 used before tractor SN. 5502461

1шт.

31

REF

INSTRUCTION

CYLINDER - lift, parts list Figure 406, use on tractor SN. 5502461 and after

2шт.
