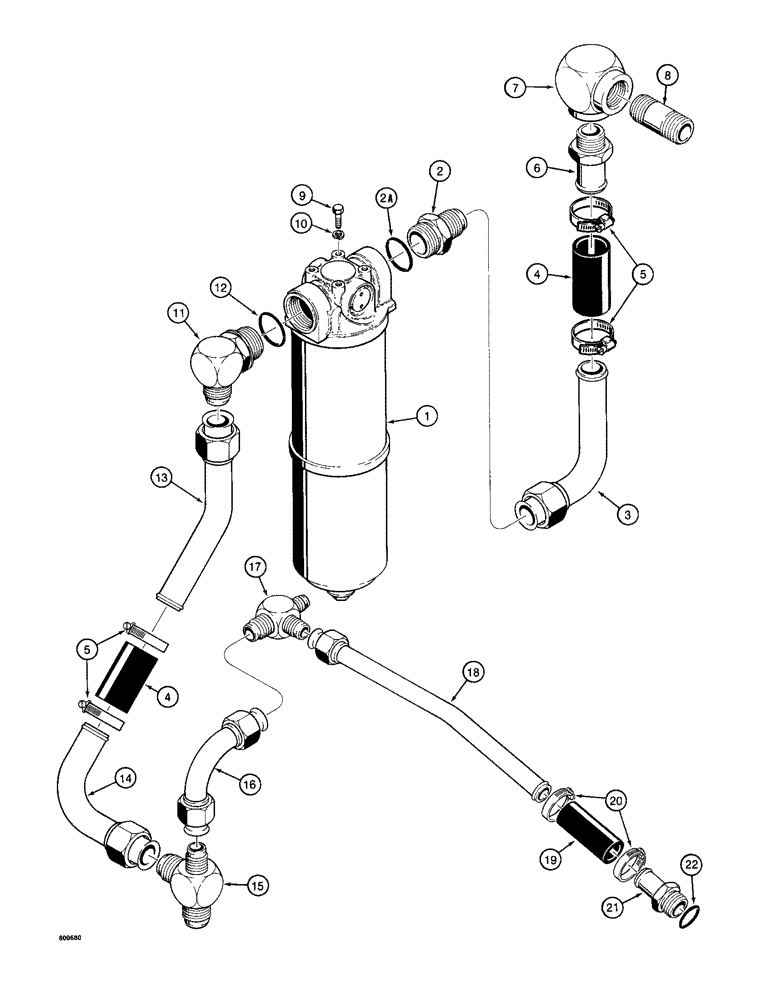

Запчасти Case 780 (282) - EQUIPMENT HYDRAULIC CIRCUIT, SPECIAL PARTS USED WITH EXTERNAL HYD. FILTER (08) - HYDRAULICS

1

D90200

FILTER - hydraulic, special, see Figure 548

1шт.

2

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

FITTING - straight, filter outlet, Includes: Ref. 2A

1шт.

2a

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- fitting

1шт.

3

D90204

TUBE -, Serial Range: filter-hose

1шт.

4

L19007

HOSE - connector

2шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

6

217-158

FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF

- stem to elbow

1шт.

7

221-396

FITTING

ELBOW - to reservoir inlet nipple

1шт.

8

221-1287

NIPPLE - reservoir inlet

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

FITTING - 90 degrees, adjustable, filter inlet, Includes: Ref. 12

1шт.

12

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- fitting

1шт.

13

D90529

TUBE - to filter inlet

1шт.

14

D90533

TUBE - backhoe return to filter inlet

1шт.

15

218-1579

TEE 37º, 1 7/8"-12 x 1 5/16"-12, Run

1шт.

16

D89873

TUBE - loader control, Serial Range: valve-filter

1шт.

17

218-1576

TEE,37 Degree, 1 5/8"-12 x 1 1/16"-12, Run

- connects to cooler return

1шт.

18

D90641

TUBE - loader control, Serial Range: valve-tee

1шт.

19

R12351

LARGE HOSE

HOSE - loader control, Serial Range: valve-tube

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

21

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Loader control valve, Includes Ref. 22 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

22

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- fitting

1шт.
