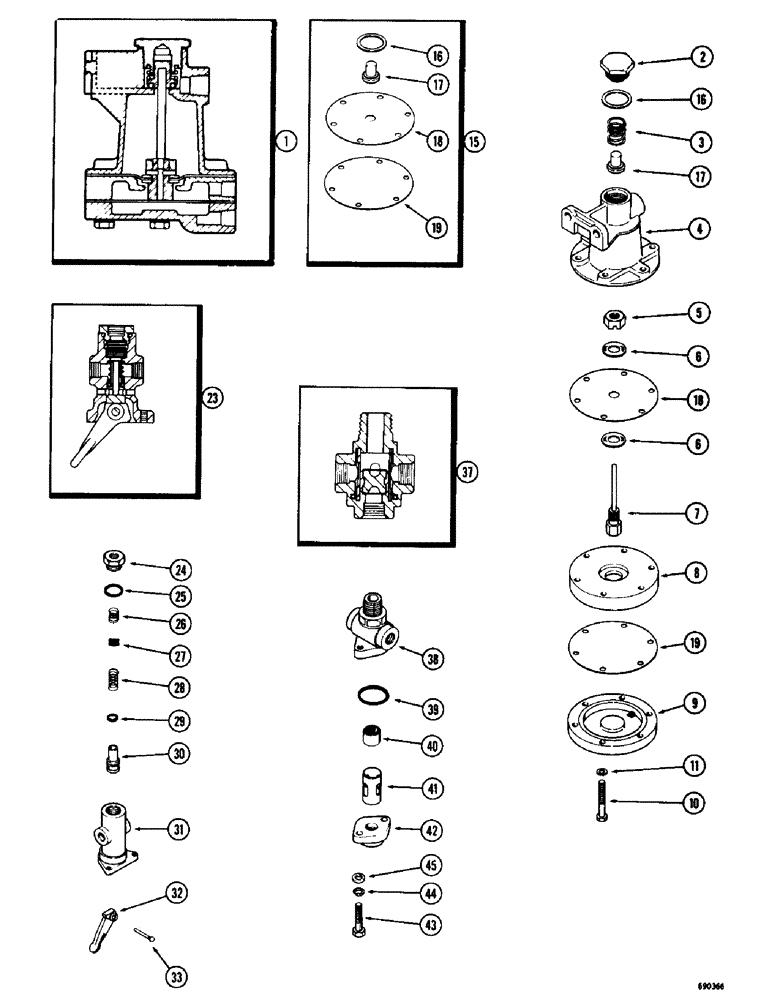

Запчасти Case 780 (270) - BRAKE SYSTEM, MISCELLANEOUS VALVES, L12620 MOISTURE EJECTION VALVE (07) - BRAKES

1

L12620

VALVE

ASSEMBLY - moisture ejection, Includes: Ref. 2 - 19

1шт.

2

L31197

body

1шт.

3

L31196

valve

1шт.

4

L31195

BODY

- main valve

1шт.

subs to complete assembly.

1шт.

L31195 main valve body - Now NSS

1шт.

5

L31202

retaining

1шт.

6

L31198

diaphragm

2шт.

7

L31191

ROD

push and valve assembly

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - exhaust chamber

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

6шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

L31203

KIT

repair, diaphragm, Includes: Ref. 16 - 19

1шт.

16

L31201

GASKET

cap

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - inlet and insert assembly

1шт.

18

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

19

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve, for. and low clutch shaft parts, L12630 ctrl valve

1шт.

23

L12630

LOCK VALVE

ASSEMBLY - hand control, L12630 clutch, Includes: Ref. 24 - 33

1шт.

24

L31396

CYLINDER END CAP

NUT - hand control valve, L12630 clutch

1шт.

25

L31397

O-RING,0.549" ID x 0.103" Width

RING - seal, cap nut, L12630 clutch ctrl valve

1шт.

26

L31391

VALVE SPRING

return, plunger, hand control , L12630 clutch

1шт.

27

L31394

LOCK VALVE

control, L12630 clutch

1шт.

28

L31395

VALVE SPRING

control , L12630 clutch

1шт.

29

L31390

O-RING,5/16" ID x 7/16" OD x 1/16"

valve plunger, L12630 clutch ctrl valve

1шт.

30

L31389

PLUNGER

valve, hand control, L12630 clutch valve

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - valve, hand contol, L12630 clutch

1шт.

32

L31392

LEVER

hand control valve, L12630 clutch

1шт.

33

L31393

RIVET

hand control valve, L12630 clutch

1шт.

37

L12635

VALVE

ASSEMBLY - L12635 double check, Includes: Ref. 38 - 45

2шт.

38

NSS

NOT SOLD SEPARAT

BODY - double check valve, L12635

1шт.

39

L31499

O-RING,1" ID x 40546" OD x 3"

double check valve, L12635

1шт.

40

L31498

ROD

SHUTTLE - double check valve, L12635

1шт.

41

L31497

GUIDE

shuttle, double check valve, no longer used, not required, L12635

1шт.

42

NSS

NOT SOLD SEPARAT

CAP - double check valve, L12635

1шт.

43

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

L12635 double check valve Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used, L12635 double check valve 1/4"

2шт.

45

95-4

WASHER,1/4"

flat, , L12635 double check valve 1/4"

2шт.
