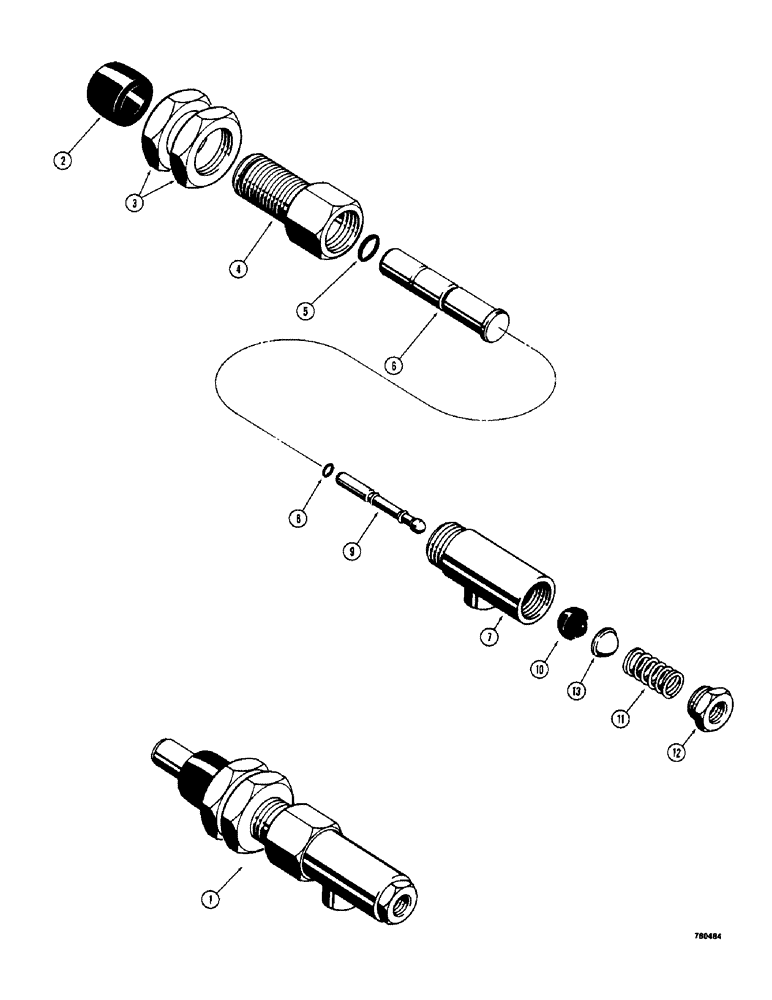

Запчасти Case 780 (268) - BRAKE SYSTEM, BRAKE CONTROL VALVE (07) - BRAKES

1

L14818

VALVE

- brake control, Includes: Ref. 2 - 13

2шт.

2

L32338

BOOT

- valve, brake control

1шт.

3

129-574

NUT - hex, 3/4" - 16 NC

2шт.

4

L32337

ADAPTER - valve, brake control

1шт.

5

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- plunger, large

1шт.

6

L32335

PLUNGER

- valve, brake control

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve, brake control

1шт.

8

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

- stem, small

1шт.

9

L32332

STEM

- valve, brake control

1шт.

10

L31354

VALVE

POPPET - air intake

1шт.

11

L31395

VALVE SPRING

SPRING - valve, brake control

1шт.

12

L32334

ADAPTER - air intake

1шт.

13

L31355

SEAT

- valve

1шт.
