Запчасти Case 780 (266) - BRAKE SYSTEM, TREADLE AND BRAKE VALVE (07) - BRAKES

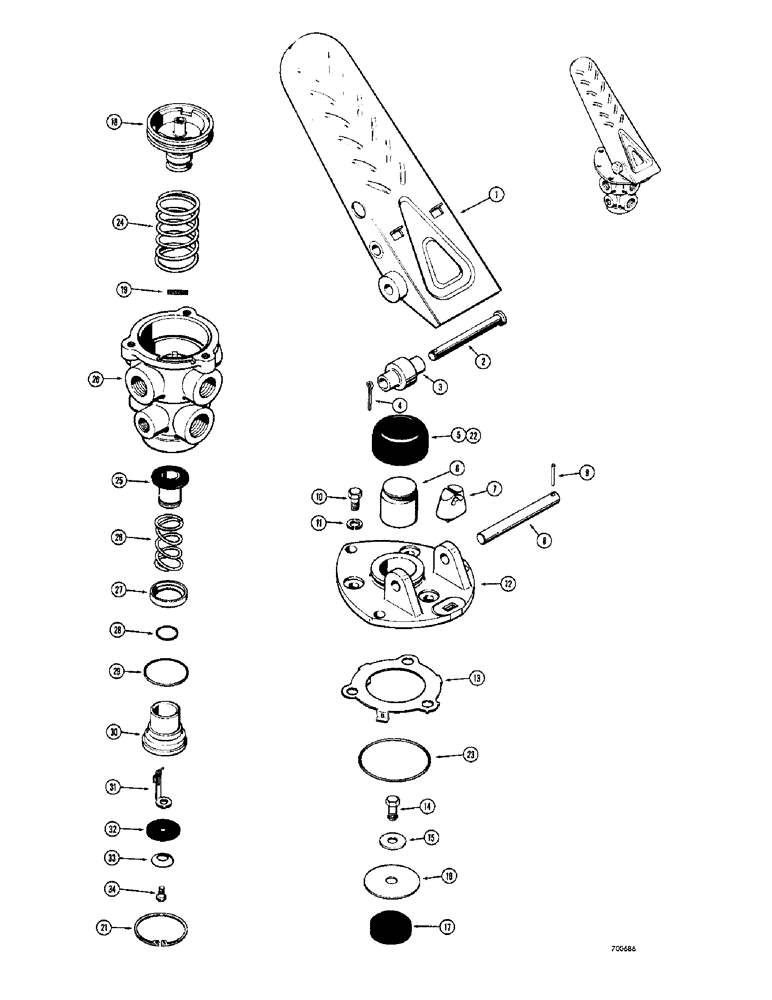

Схема запчастей Case 780 - (266) - BRAKE SYSTEM, TREADLE AND BRAKE VALVE (07) - BRAKES

Артикул

Название

Примечание

Количество

L19709

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, Includes: Ref. 1 - 34

1шт.

1

L31365

VALVE

TREADLE - brake valve

1шт.

2

L31367

PIN

- roller, treadle valve

1шт.

3

L32676

ROLLER

- treadle valve

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L31364

BOOT

COVER - treadle, brake, included in L31806 repair kit

1шт.

6

L31363

PLUNGER

- treadle, brake

1шт.

7

L31674

BUTTON - stop, treadle, brake

1шт.

8

L31465

PIN

- fulcrum, treadle, brake

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Fulcrum pin 1/8" x 7/8", Slotted

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate to brake valve Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

12

L31361

LARGE PLATE

PLATE - mounting, brake treadle

1шт.

L31360

VALVE

ASSEMBLY - brake, Includes: Ref. 13 - 34

1шт.

13

NLS

NO LONGER SERVICED

- valve

1шт.

L31380

PISTON

ASSEMBLY - valve, Includes: Ref. 14 - 18

1шт.

14

L31384

LOCK BOLT,Hex, 1/4" - 20 x 5/8"

BOLT - locking, special

1шт.

15

L31387

WASHER

- compression, spring

1шт.

16

L31386

SEAT

- spring, piston

1шт.

17

L31385

SPRING

- rubber, piston

1шт.

18

L31383

PISTON

- valve

1шт.

19

L31459

FILTER

- vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , washer 1.625", Int, #162

1шт.

L31806

KIT

- repair, valve, Includes: Ref. 22 - 34

1шт.

22

L31364

BOOT

COVER - treadle, brake

1шт.

23

L31381

O-RING,2 1/8" ID x 2 3/8" OD x 1/8"

- piston

1шт.

24

L31379

SPRING

- return, piston

1шт.

L31368

KIT

VALVE ASSEMBLY - inlet and exhaust, Includes: Ref. 25 - 34

1шт.

25

L31375

VALVE

- inlet and exhaust

1шт.

26

L31378

VALVE SPRING

SPRING - valve

1шт.

27

L31376

RETAINER

- valve

1шт.

28

L31377

O-RING,5/8" ID x 3/4" OD x 1/16"

- valve

1шт.

29

L31374

O-RING

- exhaust check valve

1шт.

30

L31370

SEAT

- check valve, exhaust

1шт.

31

L31371

SPRING

- preload, inlet valve

1шт.

32

L31372

DIAPHRAGM

- valve

1шт.

33

WASHER - diaphragm, valve

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, slotted head, #8 - 32 NC x 3/8"

1шт.

Выбрано товаров: 39
