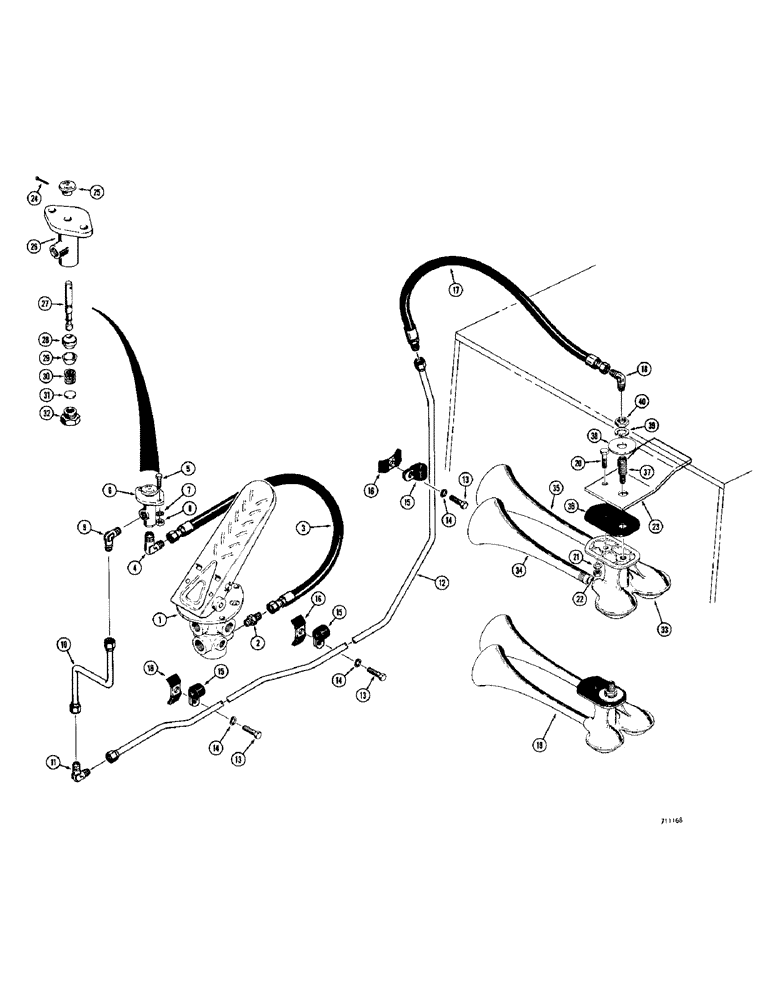

Запчасти Case 780 (262) - AIR HORN, L12647 HORN CONTROL VALVE, L50225 AIR HORN VALVE (07) - BRAKES

1

L19709

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, parts list Figure 266

1шт.

2

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - male, straight

1шт.

3

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Treadle to Horn Control Valve 0.38" ID x 17.00", SAE 100R1

1шт.

4

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

FITTING - male, 90 degrees, horn valve inlet

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

6

L12647

VALVE

- horn control, see parts list below

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 degrees, horn valve outlet

1шт.

10

D54895

TUBE

- horn control valve to horn, rear section, used before tractor SN. 5502546

1шт.

10

L12347

PIPE

HOSE - horn control valve to horn, rear section, used on tractor SN. 5502546 and after, not shown

1шт.

11

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

FITTING - male, 90 degrees

1шт.

12

L43898

TUBE - horn control valve to horn, center section

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

92-5

LOCK WASHER,5/16"

3шт.

15

49845

CLAMP

- air horn hose

3шт.

16

D33316

CLAMP

- compressor tubes

3шт.

17

L42866

HOSE - horn control valve to horn, front section

1шт.

18

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 degrees

1шт.

19

L50225

HORN

- air, see parts list below

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

23

D54475

BRACKET - horn mounting, welded to shroud, used with non turbo-charged engines

1шт.

23

D58077

BRACKET - horn mounting, welded to shroud, used with turbo-charged engines

1шт.

L12647

VALVE

ASSEMBLY - horn, Includes: Ref. 24 - 32

1шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", Serial Range: button-stem

1шт.

25

P2531301

CONTROL SLIDE

BUTTON - horn valve

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - horn valve

1шт.

27

L31353

STEM

- horn valve

1шт.

28

L31354

VALVE

- inlet, horn valve

1шт.

29

L31355

SEAT

- spring, horn valve

1шт.

30

L31356

SPRING

- horn valve

1шт.

31

L31357

PLATE

- strainer, horn valve

1шт.

32

L31358

PLUG

CAP - horn valve

1шт.

L50225

HORN

ASSEMBLY - air, Includes: Ref. 33 - 40

1шт.

33

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn

1шт.

34

L33784

HORN

- high pitch, 10-3/4" (273 mm) long

1шт.

35

L33785

HORN

- low pitch, 13-1/3" (345 mm) long

1шт.

L33786

KIT

- horn mounting, Includes: Ref. 36 - 40

1шт.

36

NSS

NOT SOLD SEPARAT

PAD - mounting

1шт.

37

NSS

NOT SOLD SEPARAT

ADAPTER - air, Serial Range: line-horn

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

39

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock

1шт.

40

129-127

NUT,5/8"-18, G5

1шт.
