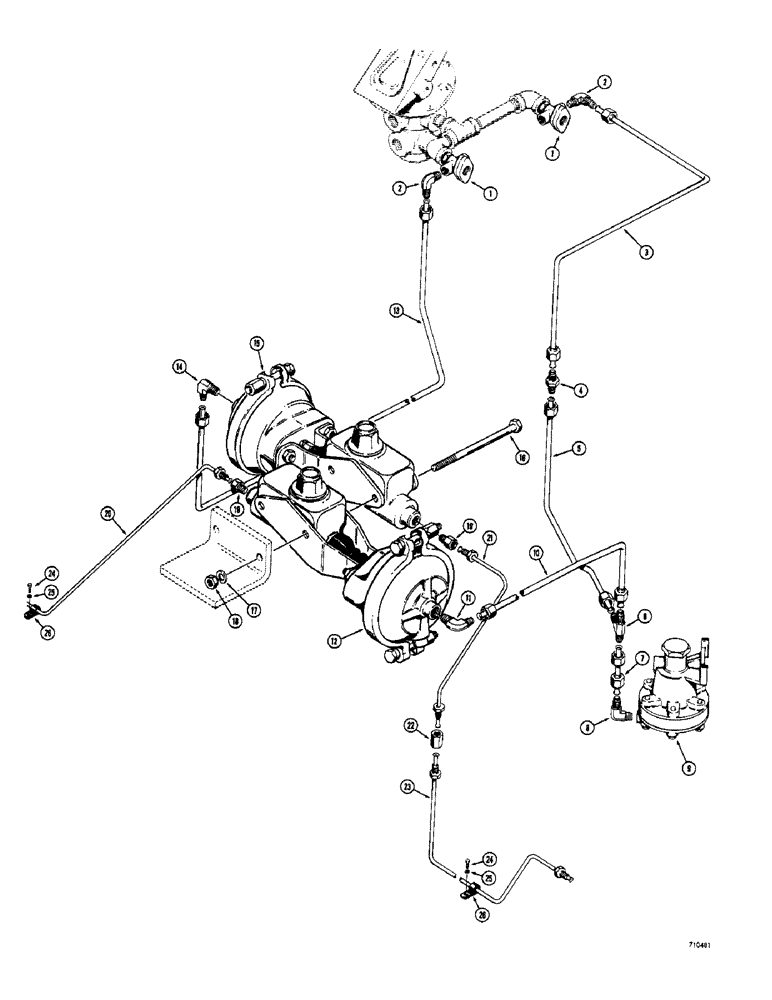

Запчасти Case 780 (260) - BRAKE SYSTEM, MASTER CYLINDER CIRCUIT (07) - BRAKES

1

L12635

VALVE

- double check, parts list Figure 270

2шт.

2

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

FITTING - male, 90 degrees

2шт.

3

L43982

TUBE - check valve to L.H. brake master cylinder, upper front section 0.375" OD x 8, 9.2" L

1шт.

4

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- tube

1шт.

5

L46163

TUBE - check valve to L.H. brake master cylinder, lower front section 0.375" OD x 10.4, 6.2" L

1шт.

6

218-593

TEE,9/16"-18, 37 Degree

FITTING - L.H. master cylinder tube and moisture ejection tube

1шт.

7

L43988

TUBE - tee to moisture ejection valve 0.375" OD x 3" L

1шт.

8

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 degrees

1шт.

9

L12620

VALVE

- moisture ejection, parts list Figure 270

1шт.

10

L44006

TUBE - tee to L.H. master cylinder 0.375" OD

1шт.

11

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - male, 90 degrees

1шт.

12

L43864

MASTER CYLINDER

- brake, L.H., parts list Figure 264

1шт.

13

L46172

TUBE - check valve to R.H. brake master cylinder 0.375" OD x 26.4, 4.4" L

1шт.

14

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - male, 90 degrees

1шт.

15

L43864

MASTER CYLINDER

- brake, R.H., parts list Figure 264

1шт.

16

15-6104

X

BOLT - hex, 3/8" - 16 NC x 6-1/2"

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

A18273

FITTING

- brake master, Serial Range: cylinder-tubes

2шт.

20

L44010

TUBE,0.25" OD x 18.5, 38.3" L

- master cylinder to L.H. rear wheel cylinder

1шт.

21

L43976

TUBE,0.25" OD

- master cylinder to R.H. rear wheel cylinder, upper

2шт.

22

222-1053

HYD CONNECTOR,1/4" Inv Fl

FITTING - tube

2шт.

23

L43990

TUBE,0.25" OD

- master cylinder to R.H. rear wheel cylinder, lower

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube to frame

2шт.
