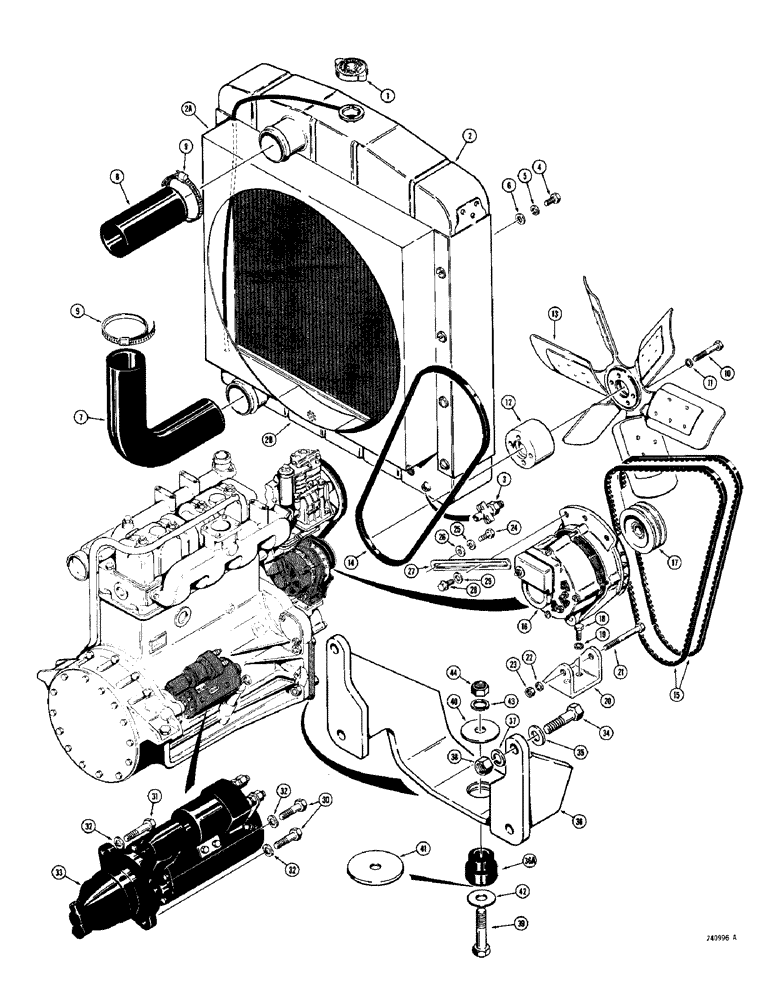

Запчасти Case 780 (010) - RADIATOR, FAN AND MOUNTING PARTS (02) - ENGINE

1

D25826

CAP

Radiator, 7 pounds, if used

1шт.

1

A143721

CAP

Radiator, 10 pounds, if used

1шт.

2

D53923

RADIATOR

Cooling before tractor S/N 5500550

1шт.

D56134

RADIATOR

Cooling tractor S/N 5500550 and after, Includes Ref. 2, 2A and 2B

1шт.

2

NSS

NOT SOLD SEPARAT

RADIATOR - cooling

1шт.

2a

D87202

SHROUD

Radiator, use with D56134 radiator

1шт.

2b

D87203

RADIATOR

TANK - bottom, use with D56134 radiator

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator

1шт.

4

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Used with D53923 radiator only

6шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with D56134 radiator only

6шт.

5

92-5

LOCK WASHER,5/16"

6шт.

6

195-21

WASHER,5/16"

Flat

6шт.

7

L18970

RADIATOR HOSE,2.60" ID x 9.50", SAE 20R4

Lower

1шт.

8

A19496

HOSE

Radiator, upper, when stock is exhausted, order L48820 hose for service

1шт.

8

L48820

HOSE

Radiator, upper

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

L40856

SPACER

Fan, 2" thick, when stock is exhausted, supply two A61268 spacers for service

1шт.

12

A61268

BUSHING

SPACER - fan, 1" thick

2шт.

13

D90413

FAN

Radiator cooling, suction

1шт.

13

A15504

FAN

Radiator cooling, pusher

1шт.

14

L47236

V-BELT,0.38" W x 44.00" L

Compressor drive, Used with model 300 compressor

1шт.

14

D81838

BELT

Compressor drive, used with model 400 compressor

1шт.

15

L19082

BELT

Set, Alternator, Set of two

1шт.

16

A41360

ALTERNATOR

Electrical, 24 volt, parts list Figure 140

1шт.

17

A41057

PULLEY

Alternator

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

A38492

BRACKET

Alternator mounting

1шт.

21

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Strap to engine

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

195-22

WASHER

Flat, 3/8"

1шт.

27

A34705

ADJUSTER

STRAP - alternator adjusting, when stock is exhausted, order A59167 for service

1шт.

27

A59167

STRAP

Alternator adjusting

1шт.

28

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

AND LOCKWASHER - strap to alternator

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

31

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

32

92-8

LOCK WASHER,1/2"

3шт.

33

REF

INSTRUCTION

STARTER - electrical, parts list Figures 125A -138

1шт.

34

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

35

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.

L21613

SPARE PART MOUNT - engine, front, Includes Ref. 36 and 36A

1шт.

36

NSS

NOT SOLD SEPARAT

MOUNT - engine, front

1шт.

36a

A19066

MOUNTING PARTS

BUSHING - rubber, engine mount

1шт.

37

92-12

LOCK WASHER,3/4"

4шт.

38

25-1012

NUT,3/4"-10, G5

4шт.

39

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

40

195-48

WASHER,3/4" x 2 7/8" x .165"

1шт.

41

D53693

WASHER

SPACER - engine mount

1шт.

42

95-12

WASHER,3/4"

flat, 2" O.D.

1шт.

43

92-12

LOCK WASHER,3/4"

1шт.

44

25-1012

NUT,3/4"-10, G5

1шт.
