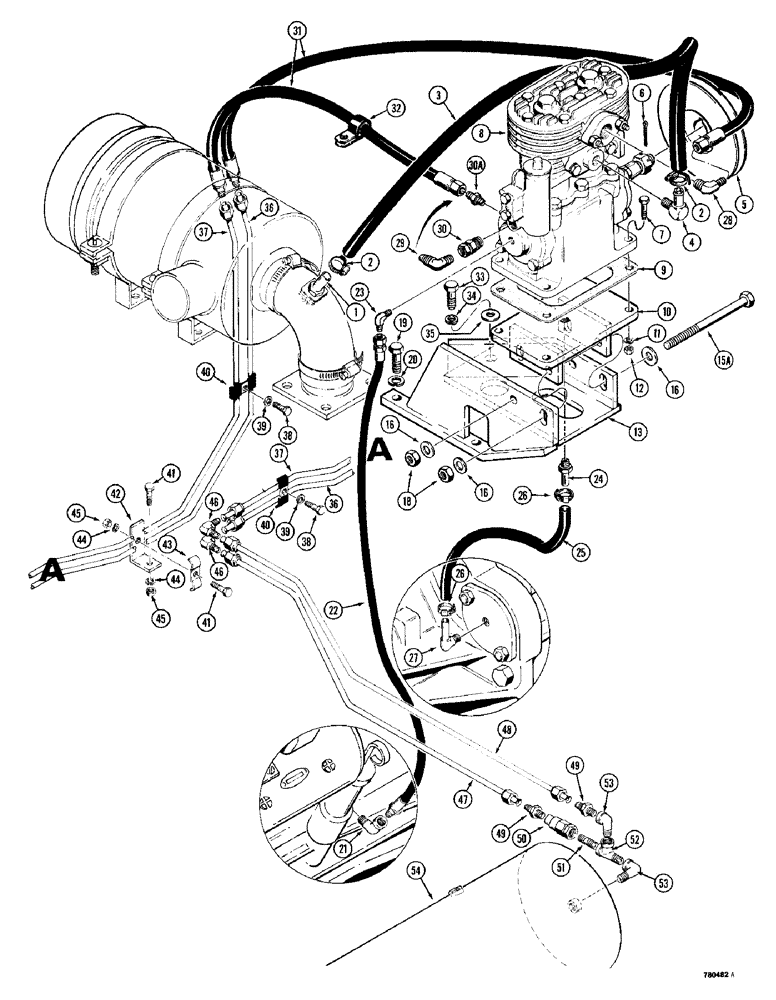

Запчасти Case 780 (240) - BRAKE SYSTEM, MODEL 400 AIR COMPRESSOR AND RESERVOIR (07) - BRAKES

1

D53472

FITTING

CONNECTOR - intake hose to air cleaner, Replaces 217-155

1шт.

2

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

3

D84666

HOSE,0.75" ID x 14.00"

Intake, Models with Turbo-Charger, If Used 0.75" ID x 14.00"

1шт.

3

D53473

HOSE - intake, models without turo-charger 3/4" (19 mm) x 24" (610 mm) if used

1шт.

4

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

FITTING - hose stem, 90 degrees, at compressor

1шт.

5

L73154

PULLEY

- air compressor

1шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

7

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

8

L79411

COMPRESSOR

- air, parts list Figure 250

1шт.

Ref. 8, L79411 air compressor, subs to L109543 compressor and B17501 gasket maker. The L109543 is no longer a serviceable part, but you can use L109544 compressor in its place (must rotate the head on L109544 by 180 degrees so that both the inlet and outlet ports are on the same side).

1шт.

9

N6771

GASKET

-, Serial Range: compressor-plate

1шт.

10

D91559

TOP

BRACKET - adjustment and mounting

1шт.

11

92-7

LOCK WASHER,7/16"

4шт.

12

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

4шт.

13

D88507

BRACKET - to engine block

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used, not shown Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", if used, not shown

2шт.

15a

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

If used Hex, 1/2"-13 x 6", G5

2шт.

16

R24323

WASHER

- flat, 1/2", hardened

2-4шт.

17

RESERVED

1шт.

18

131-194

LOCK NUT,1/2"-13, GC

NUT - hex, lock, 1/2" - 13 NC

2-4шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

22

D81005

HOSE ASSY.

HOSE - oil supply, 32" (813 mm) long

1шт.

23

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 89 degrees, at compressor

1шт.

24

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

25

L51648

HOSE,0.50" ID x 18.00", SAE 30R2 Type 1

0.50" ID x 18.00", SAE 30R2, Type 1, Oil Return

1шт.

26

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

2шт.

27

A27489

ELBOW UNION

FITTING - 90 degrees, hose stem

1шт.

28

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

FITTING - 90 degrees, male

1шт.

29

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degrees, male, if used

1шт.

30

218-900

HYD CONNECTOR,1/8" NPT x 1/8" NPSM Fem

FITTING - straight, adapter, if used

1шт.

30a

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Straight, if used 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

31

D81837

HOSE - from compressor, 34" (864 mm) long

2шт.

32

T50103

CLAMP

- hose, uses existing hardware

1шт.

33

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

34

92-7

LOCK WASHER,7/16"

1шт.

35

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

36

L43898

TUBE - compressor to reservoir, front

1шт.

37

L43925

TUBE - governor to reservoir, front 0.375" OD

1шт.

38

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

D33316

CLAMP

-, Serial Range: tube-shroud

2шт.

41

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4", if used

2шт.

42

L43690

BRACKET - clamp mounting, used on models with twin control towers

1шт.

43

A12032

CLAMP

-, Serial Range: tube-chassis

1шт.

44

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

2шт.

46

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

FITTING - 90 degrees, male

2шт.

47

L43894

TUBE - compressor to reservoir, rear 0.375" OD x 26.5, 4.5" L

1шт.

48

L43896

TUBE - governor to reservoir, rear 0.375" OD x 24, 4.5" L

1шт.

49

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, male

2шт.

50

L12633

CHECK VALVE

VALVE - check

1шт.

51

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

52

221-1691

TEE,Street, 1/4" NPT

FITTING - three way, Street, 1/4" NPT

1шт.

53

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - 90 degrees, street, 1/4" NPT

2шт.

54

L19210

RESERVOIR - air

1шт.
